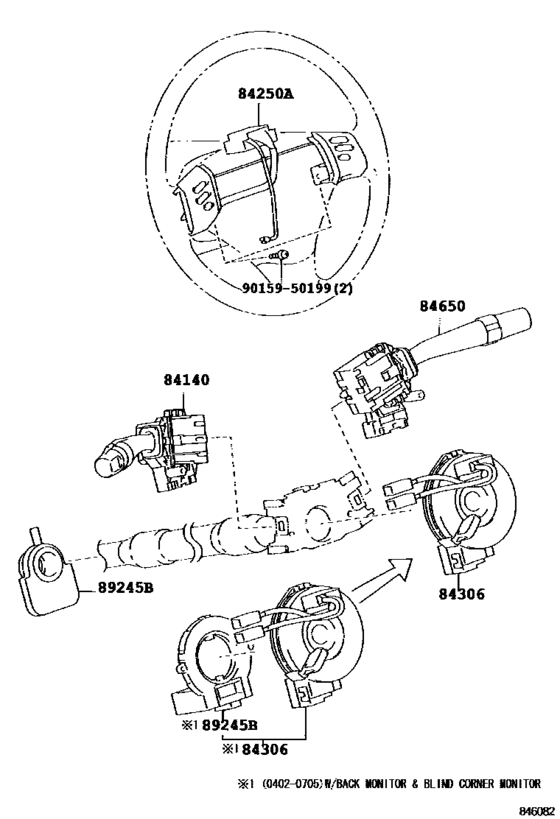

Switch & Relay & Computer ([02.2004 - ] IGNITION & COMBINATION SWITCH (0402- )) Diagram Toyota COROLLA VERSO
- Year
- 2004 - 2005
- Sales region
- Europe
- Frame
- CUR10
- grade
- TERRA
- ENGINE
- 1CDFTV
- From
- 02.2004
- To
- 08.2005
- Gear Shift Type
- 5F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-05100
Switch Assy, Headlamp Dimmer
[02.2004 - 08.2005] CUR10..TERRA |
84140-05100 |
— | ||
|
84140
|
84140
84140-05110
Switch Assy, Headlamp Dimmer
[02.2004 - 08.2005] CUR10..SOL; CUR10..TERRA FRONT FOG LAMP-WITH |
84140-05110 |
— | ||
|
84250A
|
84250A
84250-64010-B0
Switch Assy, Steering Pad
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..07S..TERRA DK.GRAY,TRIM1#; AUR10,CUR10,ZNR1#..07S..TERRA AUDIO-RADIO LESS,DK.GRAY,TRIM1#; AUR10,ZNR1#..07S..TERRA STEERING WHEEL-URETHANE,DK.GRAY,TRIM1# |
84250-64010-B0 |
— | ||
|
84306
|
84306
84306-05050 Cable Sub-Assy, Spiral[02.2004 - 08.2005] CUR10 |
84306-05050 |
US $270.82 |
||
|
84650
|
84650
84652-05150
Switch Assy, Windshield Wiper
[02.2004 - 08.2005] CUR10..TERRA |
84652-05150 |
— | ||
|
89245B
|
89245B
89245-02010
Sensor, Steering
[02.2004 - 05.2007] CUR10,ZNR1# |
89245-02010 |
— | ||
| replacement | |||||
|
89245B
|
89245B
89245-02020 Sensor, Steering[02.2004 - 05.2007] CUR10,ZNR1# |
89245-02020 |
US $304.01 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.80 |
||
