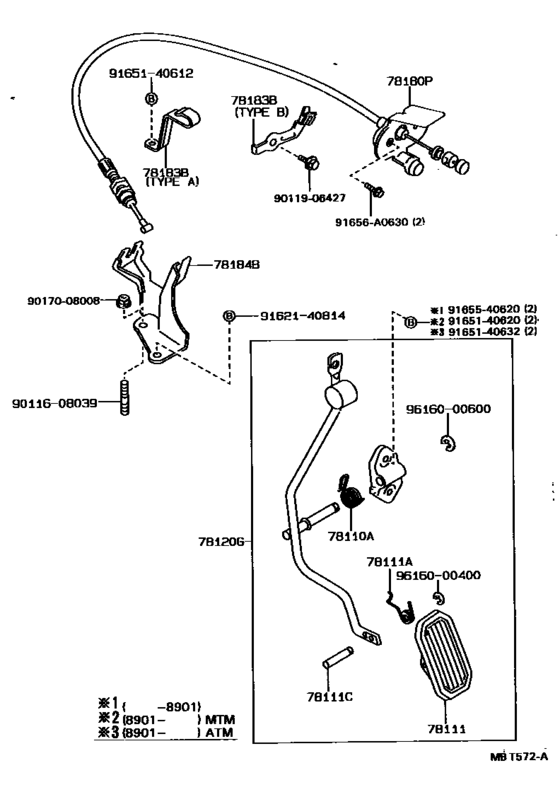

Accelerator Link ([12.1987 - ] (8712- )AT17#..RHD) Diagram Toyota CORONA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AT171
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CORONA/ CARINA 2
- From
- 12.1987
- To
- 08.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corona/ Carina 2
- Driver's Position
- RHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90508-26054 Spring, Torsion (For Accelerator Link)[12.1987 - 01.1990] ST171..4FC..EFI;AT17#,ST171..RHD..MTM |
90508-26054 |
US $6.99 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[12.1987 - 11.1992] AT17#,CT17#,ST171 |
78111-32010 |
US $10.13 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[12.1987 - 12.1988] AT17#,CT17#,ST171 |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[12.1987 - 11.1992] AT17#,CT17#,ST171 |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20180 Rod Assy, Accelerator Pedal[12.1987 - 01.1990] ST171..4FC..EFI;AT17#,ST171..RHD..MTM |
78120-20180 |
US $49.50 |
||
|
78180P
|
78180P
78180-2B270 Cable Assy, Accelerator Control[12.1987 - 11.1992] AT17#..RHD |
78180-2B270 |
US $46.88 |
||
|
78183B
|
78183B
78183-12140 Clamp, Accelerator Control Cable[12.1987 - 11.1992] AT17#..RHD TYPE A |
78183-12140 |
US $11.65 |
||
|
78183B
|
78183B
78183-20100 Clamp, Accelerator Control Cable[12.1987 - 09.1988] AT17#..RHD TYPE B |
78183-20100 |
US $11.65 |
||
| replacement | |||||
|
78183B
|
78183B
78183-20101 Clamp, Accelerator Control Cable[12.1987 - 09.1988] AT17#..RHD TYPE B |
78183-20101 |
US $11.50 |
||
|
78183B
|
78183B
78183-20120 Clamp, Accelerator Control Cable[09.1988 - 11.1992] AT17#..RHD TYPE B |
78183-20120 |
US $14.27 |
||
|
78184B
|
78184B
78184-12230
Bracket, Accelerator Control Cable
[12.1987 - 11.1992] AT17# |
78184-12230 |
— | ||
|
91656A0630
|
91656A0630
91656-A0630 New Genuine Part |
91656-A0630 |
US $1.46 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $3.67 |
||
|
9011906427
|
9011906427
90119-06427 New Genuine Part |
90119-06427 |
US $1.60 |
||
| replacement | |||||
|
9011906427
|
9011906427
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140632
|
9165140632
91651-40632 New Genuine Part |
91651-40632 |
US $1.16 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.29 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
||
