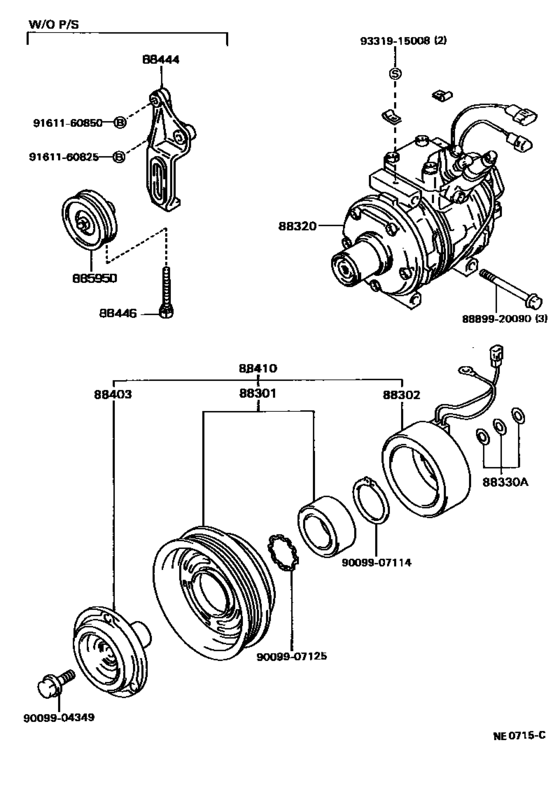

Heating & Air Conditioning - Compressor ([12.1987 - 11.1989] (8712-8911)CT17#) Diagram Toyota CORONA
- Year
- 1988 - 1989
- Sales region
- Japan
- Frame
- CT170
- grade
- MX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 09.1988
- To
- 11.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Corona
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-20090
Rotor Sub-Assy, Magnet Clutch
[12.1987 - 11.1989] CT170..EXS,MX |
88412-20090 |
— | ||
| replacement | |||||
|
88301
|
88301
88412-33050 Rotor Sub-Assy, Magnet Clutch[12.1987 - 11.1989] CT170..EXS,MX |
88412-33050 |
US $259.58 |
||
|
88302
|
88302
88411-20140
Stator Sub-Assy, Magnet Clutch
[12.1987 - 11.1989] CT170..EXS,MX |
88411-20140 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-2B040
Stator Sub-Assy, Magnet Clutch
[12.1987 - 11.1989] CT170..EXS,MX |
88411-2B040 |
— | ||
|
88320
|
88320
88320-20650
Compressor Assy, Cooler
[12.1987 - 11.1989] CT170..EXS,MX; CT176 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
88320-20650 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[12.1987 - 11.1989] CT170..EXS,MX |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[12.1987 - 11.1989] CT170..EXS,MX |
88403-16011 |
US $82.47 |
||
|
88410
|
88410
88410-20250 Clutch Assy, Magnet[12.1987 - 11.1989] CT170..EXS,MX |
88410-20250 |
US $563.47 |
||
| replacement | |||||
|
88410
|
88410
88410-20440 Clutch Assy, MagnetMAGNET [12.1987 - 11.1989] CT170..EXS,MX |
88410-20440 |
US $556.19 |
||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.11 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
from US $1.92 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
