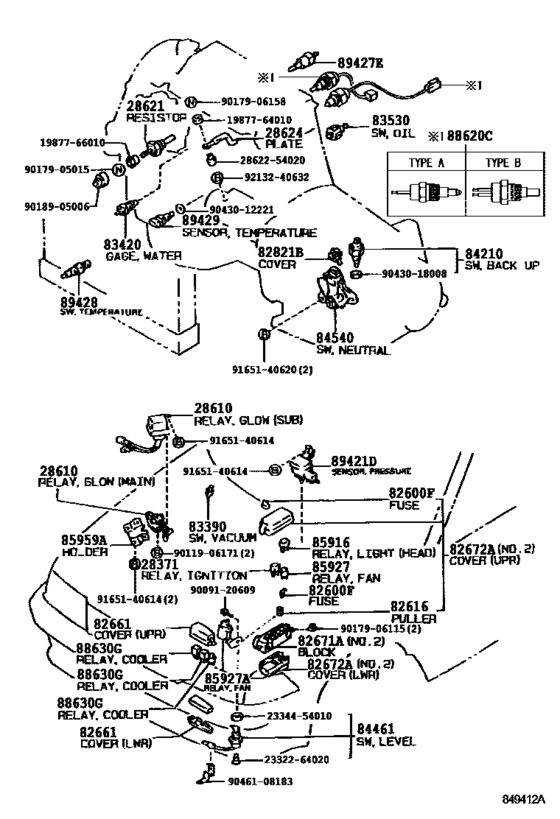

Switch & Relay & Computer ([12.1987 - ] (8712- )CT17#) Diagram Toyota CORONA
- Year
- 1988 - 1989
- Sales region
- Japan
- Frame
- CT170
- grade
- MX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 09.1988
- To
- 11.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Corona
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-04002 Relay, Ignition, No.1[12.1987 - 11.1992] 4AFE,5AF#,2C,3E,3S#,4SF#..AT17#,CT17#,ET176,ST17# |
90987-04002 |
from US $24.67 |
||
|
28610
|
28610
28610-64070 Relay Assy, Glow Plug[12.1987 - 11.1992] 2C..CT17# SUB |
28610-64070 |
US $116.48 |
||
|
28610
|
28610
28610-64080
Relay Assy, Glow Plug
[12.1987 - 11.1992] 2C..CT17# MAIN |
28610-64080 |
— | ||
|
28621
|
28621
28621-64011 Resistor, Glow Plug[12.1987 - 11.1992] 2C..CT17# |
28621-64011 |
US $181.71 |
||
|
28624
|
28624
28624-64020 Plate, Current Sensor[12.1987 - 11.1989] 2C..CT17# |
28624-64020 |
US $26.35 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[12.1987 - 02.1988] AT170,CT17#,ET176,ST17# １０Ａ |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[12.1987 - 02.1988] AT170,CT17#,ET176,ST17# １５Ａ |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# ７．５Ａ |
90982-09005 |
from US $1.03 |
||
|
82661
|
82661
82661-20080 Cover, Relay Block, No.1[08.1988 - 11.1992] CT176..5F;AT17#,CT170..DSL,EFI;ST170..(GX,MX,Z)..CI 上側 |
82661-20080 |
US $14.56 |
||
|
82661
|
82661
82672-20380 Cover, Relay Block, No.1[08.1988 - 11.1992] AT17#,CT17#..DSL,EFI;ST170..(GX,MX,Z)..CI 下側 |
82672-20380 |
US $8.15 |
||
|
82671A
|
82671A
82671-20090 Block, Junction[02.1988 - 11.1992] AT17#,CT17#,ET176,ST17# ＮＯ．４ |
82671-20090 |
US $230.05 |
||
|
82671A
|
82671A
82671-20100 Block, Junction[02.1988 - 11.1992] AT17#,CT17#,ET176,ST17# ＮＯ．１ |
82671-20100 |
US $230.05 |
||
|
82671A
|
82671A
82671-20130 Block, Junction[02.1988 - 11.1992] AT170,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z ＮＯ．３ |
82671-20130 |
US $230.05 |
||
|
82671A
|
82671A
82671-20170 Block, Junction[12.1987 - 11.1989] CT17# ＮＯ．２ |
82671-20170 |
US $230.05 |
||
|
82672A
|
82672A
82672-20200 Cover, Junction Block[12.1987 - 11.1992] AT17#,CT17#,ST17#..CI,DSL,EFI NO.2,LWR |
82672-20200 |
US $28.54 |
||
|
82672A
|
82672A
82672-20310 Cover, Junction Block[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# ＮＯ．３ |
82672-20310 |
US $8.15 |
||
|
82672A
|
82672A
82672-20330 Cover, Junction Block[12.1987 - 11.1989] AT17#,CT17#,ET176,ST17# ＮＯ．１ |
82672-20330 |
US $9.76 |
||
|
82672A
|
82672A
82672-20370 Cover, Junction Block[12.1987 - 11.1989] CT17# NO.2,UPR |
82672-20370 |
US $34.65 |
||
|
82821B
|
82821B
82821-35010
Cover, Connector
[04.1988 - 07.1989] AT17#,CT170,ST17#..4FC..(EXG,EXS,G,GT,GTR,MX,SXR,X,Z) |
82821-35010 |
— | ||
|
83390
|
83390
83390-30020
Switch Assy, Vacuum Warning
[12.1987 - 11.1992] CT17# |
83390-30020 |
— | ||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1987 - 11.1992] CT17#,ST171..DX,EXS,GT,GTR,GX,MX,SELS |
83420-20020 |
from US $30.54 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[12.1987 - 11.1992] CT17# |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[12.1987 - 11.1992] CT17# |
83530-60030 |
from US $25.74 |
||
|
84461
|
84461
84461-20060
Switch, Level Warning
[02.1988 - 11.1992] CT17# |
84461-20060 |
— | ||
|
84540
|
84540
84540-12170
Switch Assy, Neutral Start
[12.1987 - 02.1992] AT17#,CT170..4FC..(EXS,MX,SELS) |
84540-12170 |
— | ||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# TAIL LAMP,MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# TAIL LAMP,MARUKO |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# TAIL LAMP,*ND |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02006 Relay[12.1987 - 08.1990] AT17#,CT17#,ET176,ST17# HEADLAMP |
90987-02006 |
from US $27.28 |
||
|
85927
|
85927
90987-03001 Relay[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
90987-03001 |
from US $32.94 |
||
|
85959A
|
85959A
85959-20080 Holder, Relay[12.1987 - 11.1992] CT17# |
85959-20080 |
US $16.02 |
||
|
88620C
|
88620C
88620-20070
Thermo Switch Assy
[12.1987 - 02.1992] CT170..4FC..(EXS,MX,SELS) ＴＹＰＥ Ａ：イラスト参照 |
88620-20070 |
— | ||
|
88630G
|
88630G
85926-30020 Relay, Headlamp Dimmer[12.1987 - 11.1989] CT170..EXS,MX ﾋﾝﾊﾞﾝ ﾗﾍﾞﾙ=85926-30020 |
85926-30020 |
from US $55.03 |
||
|
88630G
|
88630G
88630-32010
Relay Assy, Cooler
[12.1987 - 11.1989] CT170..EXS,MX ﾋﾝﾊﾞﾝ ﾗﾍﾞﾙ=88630-32010 |
88630-32010 |
— | ||
|
88630G
|
88630G
90987-02004 Relay Assy, Starter[12.1987 - 11.1989] CT170..EXS,MX ﾋﾝﾊﾞﾝ ﾗﾍﾞﾙ=90987-02004 |
90987-02004 |
from US $28.70 |
||
|
89427E
|
89427E
89427-12051 Switch, Temperature Detect[12.1987 - 11.1992] CT17# ｶﾝﾚｲﾁ ｼﾖｳ |
89427-12051 |
US $77.17 |
||
|
89428
|
89428
89428-15030 Switch, Temperature Detect, No.2[12.1987 - 11.1989] CT17# |
89428-15030 |
US $118.19 |
||
|
89429
|
89429
89422-20010 Sensor, Water Temperature (For E.f.i.)[12.1987 - 11.1992] CT17# |
89422-20010 |
from US $36.78 |
||
|
1987764010
|
1987764010
19877-64010 New Genuine Part |
19877-64010 |
US $4.95 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2332264020
|
2332264020
23322-64020 Plug, Drain(For Fuel Filter) |
23322-64020 |
US $10.56 |
||
|
2334454010
|
2334454010
23344-54010 O-Ring (For Drain Plug) |
23344-54010 |
from US $1.58 |
||
|
2862254020
|
2862254020
28622-54020
Insulator, Glow Plug Resistor, No.1
|
28622-54020 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.44 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.08 |
||
|
9017905015
|
9017905015
90179-05015 New Genuine Part |
90179-05015 |
US $1.12 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9018905006
|
9018905006
90189-05006 GROMMET |
90189-05006 |
from US $3.88 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9046108183
|
9046108183
90461-08183
Wire, Fuse To Fuse(for Combustion Heater)
|
90461-08183 |
— | ||
| replacement | |||||
|
9046108183
|
9046108183
82711-37250
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-37250 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9213240632
|
9213240632
92132-40632 New Genuine Part |
92132-40632 |
US $1.60 |
||
