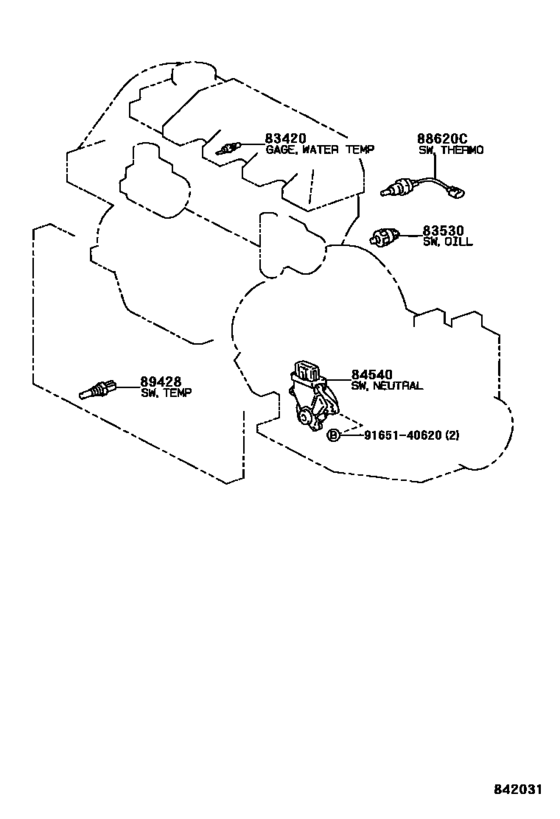

Switch & Relay & Computer ([03.1992 - ] ENGINE & TRANSMISSION (9203- )CT190..JPP) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- CT190
- grade
- GL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- CORONA (SED/LB/UKP)
- From
- 03.1992
- To
- 01.1996
- Vehicle Model
- Corona (SED/LB)
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[03.1992 - 05.1992] CT190,ST191..JPP |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-30100
Switch Assy, Oil Pressure (For Engine)
[03.1992 - 01.1996] CT190..JPP |
83530-30100 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[03.1992 - 01.1996] CT190..JPP |
83530-60010 |
from US $26.29 |
||
|
84540
|
84540
84540-16040 Switch Assy, Neutral Start[03.1992 - 02.1993] AT190,CT190,ST191..JPP..ATM |
84540-16040 |
from US $161.11 |
||
|
88620C
|
88620C
88620-20100
Thermo Switch Assy
[03.1992 - 06.1994] CT190..JPP |
88620-20100 |
— | ||
|
88620C
|
88620C
88620-20140
Thermo Switch Assy
[06.1994 - 01.1996] CT190..JPP MAKER OPTION |
88620-20140 |
— | ||
|
89428
|
89428
89428-33010 Switch, Temperature Detect[03.1992 - 06.1996] CT190,ST191..JPP |
89428-33010 |
from US $88.80 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
