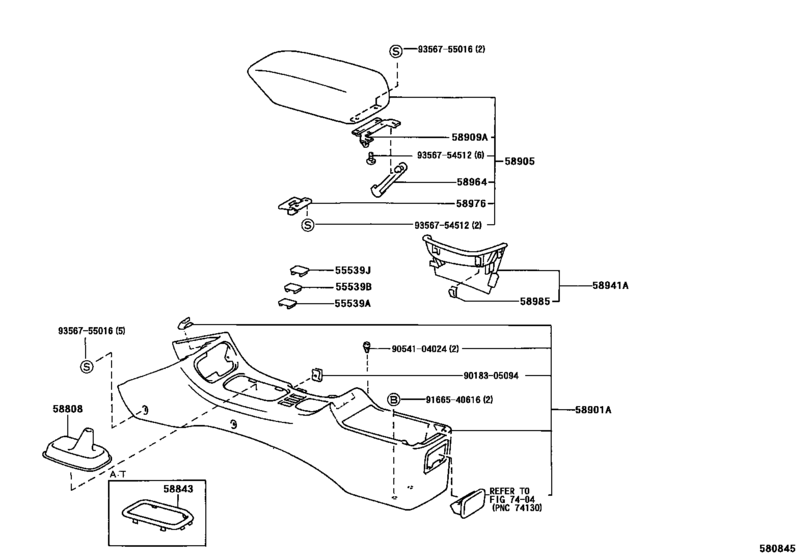

Console Box & Bracket ([01.1996 - ] (9601- )UKP) Diagram Toyota CORONA
- Year
- 1996 - 1997
- Sales region
- General
- Frame
- CT190
- grade
- GL
- body
- SED
- ENGINE
- 2CT
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CORONA (SED/LB/UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Corona SED
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539A
|
55539A
55539-05010-B0
Cover, Spare Switch Hole
[01.1996 - 06.1996] AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
55539-05010-B0 |
— | ||
|
55539A
|
55539A
55539-05010-J0
Cover, Spare Switch Hole
[01.1996 - 06.1996] AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
55539-05010-J0 |
— | ||
|
55539A
|
55539A
55539-05020-B0 Cover, Spare Switch HoleSPARE SWITCH HOLE [06.1996 - 10.1997] AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
55539-05020-B0 |
US $4.22 |
||
|
55539A
|
55539A
55539-05020-J0 Cover, Spare Switch HoleSPARE SWITCH HOLE [06.1996 - 10.1997] AT190,CT190,ST191..UKP DK.BLUE,TRIM8# |
55539-05020-J0 |
US $4.22 |
||
|
55539B
|
55539B
55539-05010-B0
Cover, Spare Switch Hole
[01.1996 - 06.1996] AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
55539-05010-B0 |
— | ||
|
55539B
|
55539B
55539-05010-J0
Cover, Spare Switch Hole
[01.1996 - 06.1996] AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
55539-05010-J0 |
— | ||
|
55539J
|
55539J
55539-05010-B0
Cover, Spare Switch Hole
[01.1996 - 06.1996] AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
55539-05010-B0 |
— | ||
|
55539J
|
55539J
55539-05010-J0
Cover, Spare Switch Hole
[01.1996 - 06.1996] AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
55539-05010-J0 |
— | ||
|
58808
|
58808
58808-05020-C1
Cover Sub-Assy, Shifting Hole
[01.1996 - 10.1997] AT190,CT190,ST191..UKP..LHD..MTM BLACK,TRIM1#,8# |
58808-05020-C1 |
— | ||
|
58901A
|
58901A
58901-05040-B0 Box Sub-Assy, Console, RearCONSOLE, REAR [01.1996 - 10.1997] AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
58901-05040-B0 |
US $324.69 |
||
|
58901A
|
58901A
58901-05040-J0 Box Sub-Assy, Console, RearCONSOLE, REAR [01.1996 - 10.1997] AT190,CT190,ST191..UKP..LHD DK.BLUE,TRIM8# |
58901-05040-J0 |
US $324.69 |
||
|
58905
|
58905
58905-05010-B0 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [01.1996 - 10.1997] AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
58905-05010-B0 |
US $77.17 |
||
|
58905
|
58905
58905-05010-J0 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [01.1996 - 10.1997] AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
58905-05010-J0 |
US $77.17 |
||
|
58909A
|
58909A
58909-05010
Stopper Sub-Assy, Console Compartment Door
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
58909-05010 |
— | ||
|
58941A
|
58941A
58904-05020-B0 Cover, Parking Brake HolePARKING BRAKE HOLE [01.1996 - 10.1997] AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
58904-05020-B0 |
US $56.06 |
||
|
58941A
|
58941A
58904-05020-J0 Cover, Parking Brake HolePARKING BRAKE HOLE [01.1996 - 10.1997] AT190,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
58904-05020-J0 |
US $56.06 |
||
|
58964
|
58964
58964-05010
Stopper, Console Compartment Door, No.1
[01.1996 - 10.1997] AT190,CT190,ST191..UKP RH |
58964-05010 |
— | ||
|
58964
|
58964
58965-05010
Stopper, Console Compartment Door, No.1
[01.1996 - 10.1997] AT190,CT190,ST191..UKP LH |
58965-05010 |
— | ||
|
58976
|
58976
58976-20020 Striker, Console Compartment Door Lock[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
58976-20020 |
US $6.24 |
||
|
58985
|
58985
58985-20050 Retainer, Console Box[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
58985-20050 |
US $1.31 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9054104024
|
9054104024
90541-04024 New Genuine Part |
90541-04024 |
US $2.33 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9356754512
|
9356754512
93567-54512
SCREW
|
93567-54512 |
— | ||
| replacement | |||||
|
9356754512
|
9356754512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
