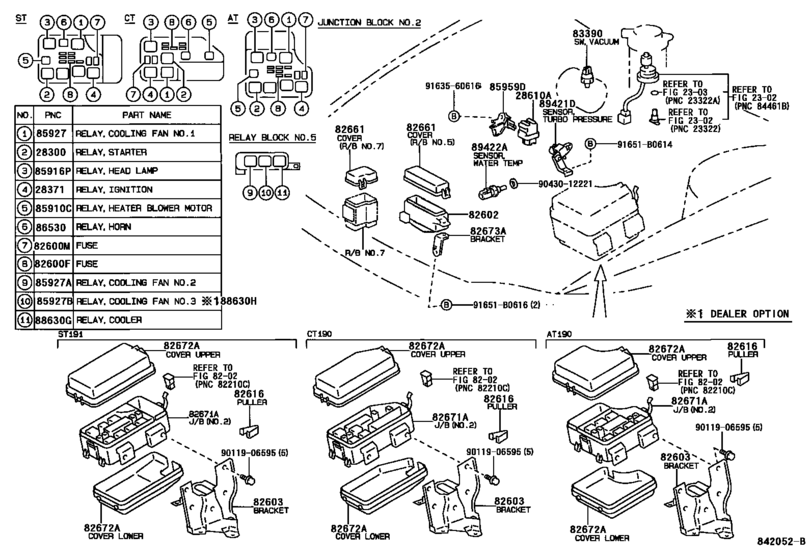

Switch & Relay & Computer ([01.1996 - ] ENGINE ROOM (9601- )UKP) Diagram Toyota CORONA
- Year
- 1996 - 1997
- Sales region
- General
- Frame
- CT190
- grade
- GL
- body
- SED
- ENGINE
- 2CT
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CORONA (SED/LB/UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Corona SED
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[01.1996 - 10.1997] 4AFE,2CT,3SFE..AT190,CT190,ST191..UKP |
28300-10020 |
from US $57.15 |
||
|
28371
|
28371
90987-04002 Relay, Ignition, No.1[01.1996 - 10.1997] 4AFE,2CT,3SFE..AT190,CT190,ST191..UKP |
90987-04002 |
from US $25.27 |
||
|
28610A
|
28610A
28610-67010 Relay Assy, Glow Plug[01.1996 - 10.1997] 2CT..CT190..UKP |
28610-67010 |
from US $42.71 |
||
|
82600F
|
82600F
90080-82005 Fuse, Fuse Block[01.1996 - 10.1997] AT190,CT190,ST191..UKP 30A |
90080-82005 |
US $1.46 |
||
|
82600F
|
82600F
90080-82012
Fuse, Fuse Block
[01.1996 - 10.1997] AT190,CT190,ST191..UKP 10A |
90080-82012 |
— | ||
|
82600F
|
82600F
90080-82013 Fuse, Fuse Block[01.1996 - 10.1997] AT190,CT190,ST191..UKP 15A |
90080-82013 |
US $1.60 |
||
|
82600F
|
82600F
90080-82014
Fuse, Fuse Block
[01.1996 - 10.1997] AT190,CT190,ST191..UKP 20A |
90080-82014 |
— | ||
| replacement | |||||
|
82600F
|
82600F
90982-09004 Fusible Link[01.1996 - 10.1997] AT190,CT190,ST191..UKP 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90080-82015
Fuse, Fuse Block
[01.1996 - 10.1997] AT190,CT190,ST191..UKP 7.5A |
90080-82015 |
— | ||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[01.1996 - 10.1997] AT190,CT190,ST191..UKP 30A |
90982-10001 |
from US $3.84 |
||
|
82600M
|
82600M
90982-10002 Fuse, Fuse Block[01.1996 - 10.1997] AT190,CT190,ST191..UKP 40A |
90982-10002 |
US $4.48 |
||
|
82602
|
82602
82602-20500 Block Sub-Assy, Relay[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
82602-20500 |
US $46.30 |
||
|
82603
|
82603
82603-20070 Bracket Sub-Assy, Fusible Link Block[01.1996 - 10.1997] CT190..UKP |
82603-20070 |
US $39.17 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
82616-12010 |
from US $3.04 |
||
|
82661
|
82661
82662-20080 Cover, Relay Block, No.1[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
82662-20080 |
US $22.42 |
||
|
82671A
|
82671A
82671-20280 Block, Junction[01.1996 - 10.1997] CT190..UKP |
82671-20280 |
US $138.32 |
||
|
82672A
|
82672A
82672-20800 Cover, Junction BlockJUNCTION BLOCK [01.1996 - 10.1997] CT190..UKP UPPER |
82672-20800 |
US $45.43 |
||
|
82672A
|
82672A
82674-20030 Cover, Junction Block[01.1996 - 10.1997] CT190..UKP LOWER |
82674-20030 |
US $36.25 |
||
|
82673A
|
82673A
82673-20050 Bracket, Junction Block[01.1996 - 10.1997] CT190..UKP |
82673-20050 |
US $4.95 |
||
|
83390
|
83390
83390-20180 Switch Assy, Vacuum Warning[05.1997 - 10.1997] CT190..UKP |
83390-20180 |
US $74.48 |
||
|
83390
|
83390
83390-32100 Switch Assy, Vacuum Warning[01.1996 - 05.1997] CT190..UKP |
83390-32100 |
US $69.54 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
90987-04002 |
from US $25.27 |
||
|
85916P
|
85916P
90987-02006 Relay[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
90987-02006 |
from US $27.65 |
||
|
85927
|
85927
90084-98011
Relay, Cooling Fan
[01.1996 - 03.1996] CT190..UKP |
90084-98011 |
— | ||
|
85927A
|
85927A
90987-04003 Relay, Ignition, No.1[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
90987-04003 |
from US $31.32 |
||
|
85927B
|
85927B
90080-87005
Relay, Computer (For Efi)
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
90080-87005 |
— | ||
|
85959D
|
85959D
85959-20160 Holder, Relay[01.1996 - 10.1997] CT190..UKP |
85959-20160 |
US $6.99 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
86530-20070 |
from US $12.54 |
||
|
88630G
|
88630G
90080-87005
Relay, Computer (For Efi)
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
90080-87005 |
— | ||
|
89421D
|
89421D
89420-20260
Sensor, Turbo Pressure (For Diesel Turbo)
[01.1996 - 10.1997] CT190..UKP |
89420-20260 |
— | ||
|
89422A
|
89422A
89422-35010 Sensor, Water Temperature (For E.f.i.)[01.1996 - 10.1997] CT190..UKP |
89422-35010 |
from US $40.58 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.86 |
||
|
9011906595
|
9011906595
90119-06595 BOLT WWASHER |
90119-06595 |
US $3.52 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
