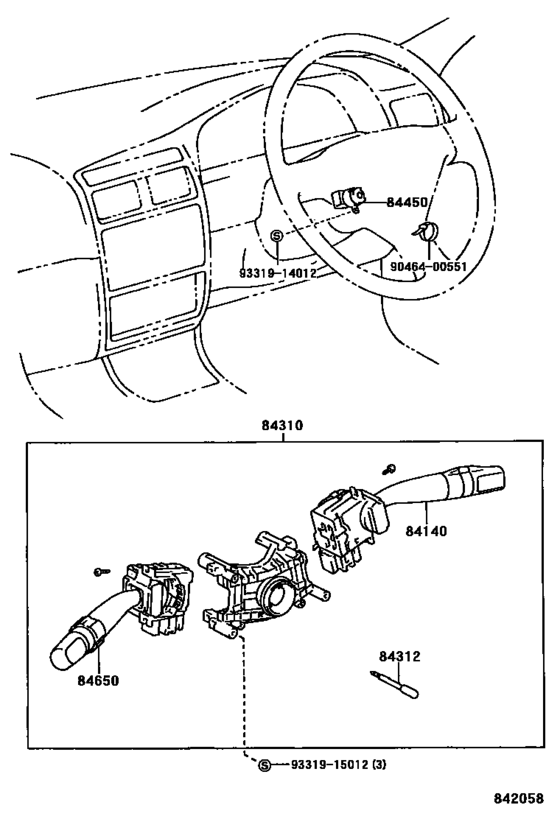

Switch & Relay & Computer ([01.1996 - ] COMBINATION SWITCH (9601- )UKP) Diagram Toyota CORONA
- Year
- 1996 - 1997
- Sales region
- General
- Frame
- CT190
- grade
- GL
- body
- SED
- ENGINE
- 2CT
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CORONA (SED/LB/UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Corona SED
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-05030
Switch Assy, Headlamp Dimmer
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
84140-05030 |
— | ||
|
84310
|
84310
84310-05120
Switch Assy, Turn Signal
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
84310-05120 |
— | ||
|
84312
|
84312
84312-05020
Plate, Horn Contact
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
84312-05020 |
— | ||
|
84450
|
84450
84450-05020
Switch Assy, Ignition Or Starter
[01.1996 - 10.1997] CT190,ST191..UKP; AT190..UKP W(POWER WINDOW) |
84450-05020 |
— | ||
| replacement | |||||
|
84450
|
84450
84450-20290
Switch Assy, Ignition Or Starter
[01.1996 - 10.1997] CT190,ST191..UKP; AT190..UKP W(POWER WINDOW) |
84450-20290 |
— | ||
|
84650
|
84650
84652-05100
Switch Assy, Windshield Wiper
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
84652-05100 |
— | ||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
