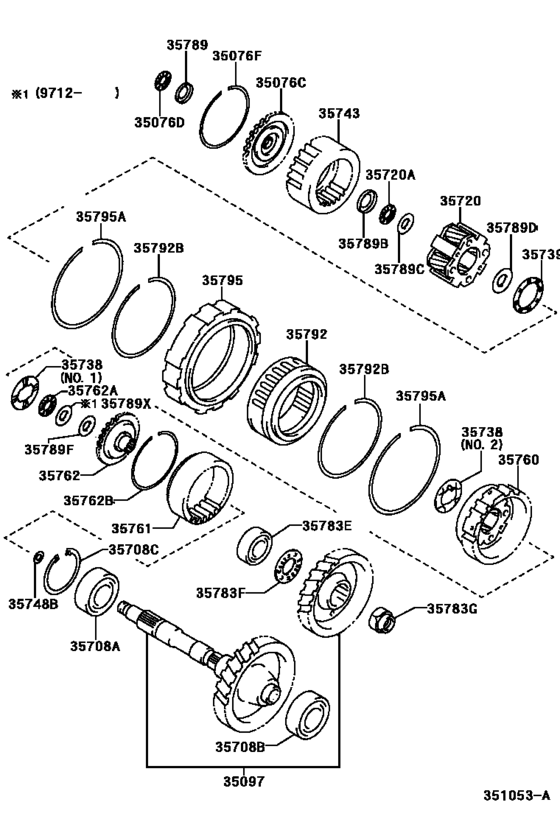

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([12.1997 - ] A241E,A241L,A241F,A243F (9601-9712)CT210,ST210..ATM..EFI,TD ; (9712- )CT21#,ST215..ATM) Diagram Toyota CORONA
- Year
- 1997 - 2001
- Sales region
- Japan
- Frame
- CT211
- grade
- PRM
- ENGINE
- 3CTE
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 12.1997
- To
- 12.2001
- Vehicle Model
- Corona
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35076C
|
35076C
35076-32030 Flange Sub-Assy, Front Planetary Ring Gear[08.1997 - 12.2001] CT210,211,ST21#..ATM..(EFI,TD,TDEFI) |
35076-32030 |
US $70.47 |
||
|
35076D
|
35076D
90374-22001 Bearing, Thrust Needle Roller(For Front Planetary Flange)[01.1996 - 01.1998] CT210,211,ST21#..ATM..(EFI,TD,TDEFI) |
90374-22001 |
US $10.05 |
||
|
35076D
|
35076D
90374-22005
Bearing, Thrust Needle Roller(For Front Planetary Flange)
[01.1998 - 12.2001] CT211,ST215..ATM |
90374-22005 |
— | ||
| replacement | |||||
|
35076D
|
35076D
90374-22001 Bearing, Thrust Needle Roller(For Front Planetary Flange)[01.1998 - 12.2001] CT211,ST215..ATM |
90374-22001 |
US $10.05 |
||
|
35076F
|
35076F
90521-99014 Ring, Hole Snap (For Front Planetary Ring Gear Flange)[01.1996 - 12.2001] AT21#,CT210,211,216,ST21#..ATM |
90521-99014 |
US $3.49 |
||
|
35097
|
35097
35097-20010 Counter Gear Kit, Automatic Transaxle[01.1996 - 12.2001] CT210,211..ATM |
35097-20010 |
US $455.73 |
||
|
35708A
|
35708A
90363-40024 Bearing, Radial Ball(For Overdrive Planetary Gear)[12.1997 - 12.2001] CT21#,ST215..ATM |
90363-40024 |
US $193.34 |
||
|
35708B
|
35708B
90363-40024 Bearing, Radial Ball(For Overdrive Planetary Gear)[01.1996 - 12.2001] CT210,211..ATM |
90363-40024 |
US $193.34 |
||
|
35708C
|
35708C
90521-76003 Ring, Hole Snap(For Overdrive Planetary Gear Bearing)[12.1997 - 12.2001] CT21#,ST215..ATM |
90521-76003 |
US $7.43 |
||
|
35720
|
35720
35720-17010
Gear Assy, Front Planetary
[01.1996 - 12.2001] CT211,ST21#..ATM |
35720-17010 |
— | ||
|
35720A
|
35720A
90374-22001 Bearing, Thrust Needle Roller(For Front Planetary Flange)[01.1996 - 01.1998] CT210,211,ST21#..ATM..(EFI,TD,TDEFI) |
90374-22001 |
US $10.05 |
||
|
35720A
|
35720A
90374-22005
Bearing, Thrust Needle Roller(For Front Planetary Flange)
[01.1998 - 12.2001] CT211,ST215..ATM |
90374-22005 |
— | ||
| replacement | |||||
|
35720A
|
35720A
90374-22001 Bearing, Thrust Needle Roller(For Front Planetary Flange)[01.1998 - 12.2001] CT211,ST215..ATM |
90374-22001 |
US $10.05 |
||
|
35738
|
35738
35738-32010 Washer, Planetary Carrier Thrust, No.2[12.1997 - 12.2001] CT211,ST215..ATM |
35738-32010 |
US $15.43 |
||
|
35739
|
35739
35739-32011 Washer, Planetary Carrier Thrust, No.3[01.1996 - 12.2001] AT21#,CT210,211,ST21#..ATM |
35739-32011 |
US $15.29 |
||
|
35743
|
35743
35743-32040 Gear, Front Planetary Ring[01.1996 - 12.2001] AT21#,CT210,211,ST21#..ATM |
35743-32040 |
from US $104.83 |
||
|
35748B
|
35748B
35748-32010 Ring, Intermediate Shaft Oil Seal (For Overdrive)[12.1997 - 12.2001] AT21#,CT21#,ST21#..ATM |
35748-32010 |
US $9.17 |
||
|
35760
|
35760
35760-32030
Gear Assy, Rear Planetary
[12.1997 - 12.2001] CT211,ST210..ATM |
35760-32030 |
— | ||
|
35761
|
35761
35761-32010 Gear, Rear Planetary Ring[01.1996 - 12.2001] CT210,211,ST21#..ATM..(EFI,TD,TDEFI) |
35761-32010 |
US $101.92 |
||
|
35762
|
35762
35762-32010 Flange, Rear Planetary Ring Gear[12.1997 - 12.2001] CT211,ST215..ATM |
35762-32010 |
US $74.26 |
||
|
35762A
|
35762A
90374-24002
Bearing, Thrust Needle Roller (For Rear Planetary Flange)
[01.1996 - 12.2001] CT210,211,ST21#..ATM..(EFI,TD,TDEFI) |
90374-24002 |
— | ||
|
35762B
|
35762B
90521-90001 Ring, Hole Snap (For Rear Planetary Ring Gear Flange)[01.1996 - 12.2001] CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI) |
90521-90001 |
US $3.06 |
||
|
35783E
|
35783E
90365-37001
Bearing, Cylindrical Roller(For Counter Driven Gear)
[12.1997 - 09.2000] AT21#,CT21#,ST215..ATM |
90365-37001 |
— | ||
|
35783F
|
35783F
90374-41001 Bearing, Thrust Needle Roller(For Counter Driven Gear)[12.1997 - 12.2001] AT21#,CT21#,ST21#..ATM |
90374-41001 |
US $15 |
||
|
35783G
|
35783G
90179-20013 Nut(For Counter Driven Gear)[12.1997 - 12.2001] CT21#,ST215..ATM |
90179-20013 |
US $3.49 |
||
|
35789
|
35789
35789-32050 Race, Thrust Bearing (For Front Planetary Flange Front)[01.1996 - 12.2001] CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI) |
35789-32050 |
US $9.32 |
||
|
35789B
|
35789B
35789-32040 Race, Thrust Bearing (For Input Shaft Rear)[01.1996 - 12.2001] CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI) |
35789-32040 |
US $9.32 |
||
|
35789C
|
35789C
35789-32060 Race, Thrust Bearing (For Front Planetary Gear Front)[01.1996 - 12.2001] AT21#,CT210,211,216,ST21#..ATM |
35789-32060 |
US $9.17 |
||
|
35789D
|
35789D
35789-32070
Race, Thrust Bearing (For Front Planetary Gear Rear)
[01.1996 - 12.2001] CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI) |
35789-32070 |
— | ||
|
35789F
|
35789F
35789-32080
Race, Thrust Bearing (For Rear Planetary Flange)
[01.1996 - 12.2001] CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI) |
35789-32080 |
— | ||
|
35792
|
35792
35792-20020 Clutch, 1 Way, No.2[12.1996 - 04.2001] CT211,216,ST210..ATM..(D4,TDEFI) |
35792-20020 |
from US $192.62 |
||
|
35792B
|
35792B
90521-99010 Ring, Hole Snap (For 1 Way Clutch No.2)[01.1996 - 12.2001] AT21#,CT210,211,216,ST21#..ATM |
90521-99010 |
US $3.93 |
||
|
35795
|
35795
35795-32010 Race, 1 Way Clutch Outer[01.1996 - 08.1999] CT210,211,216,ST21#..ATM |
35795-32010 |
US $113.57 |
||
|
35795A
|
35795A
90521-99011 Ring, Hole Snap (For Overdrive Brake Flange)[01.1996 - 12.2001] AT21#,CT210,211,216,ST21#..ATM |
90521-99011 |
US $4.80 |
||
