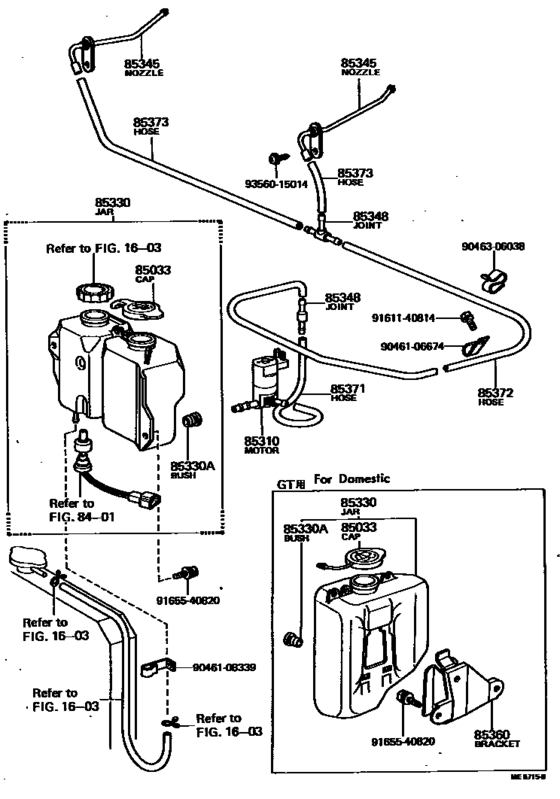

Windshield Washer ([01.1977 - 05.1979] (7701-7905)EUG) Diagram Toyota CORONA
- Year
- 1975 - 1978
- Sales region
- General
- Frame
- RT104
- grade
- DLX
- body
- SED
- ENGINE
- 18R
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 09.1975
- To
- 08.1978
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Vehicle Model
- Corona
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85033-20070
Cap Assy, Windshield Washer
[09.1974 - 09.1975] RT104,118..EUR FOR HEADLAMP CLEARNER |
85033-20070 |
— | ||
| replacement | |||||
|
85033
|
85033
85332-30050
Cap Assy, Windshield Washer
[09.1974 - 09.1975] RT104,118..EUR FOR HEADLAMP CLEARNER |
85332-30050 |
— | ||
|
85033
|
85033
85332-20020
Cap Assy, Windshield Washer
[08.1973 - 09.1975] RT10#,11# |
85332-20020 |
— | ||
|
85310
|
85310
85310-12020
Motor And Pump Assy, Windshield Washer
[08.1973 - 01.1977] RT10#,11# |
85310-12020 |
— | ||
|
85310
|
85310
85310-20100
Motor And Pump Assy, Windshield Washer
[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA |
85310-20100 |
— | ||
| replacement | |||||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85285-20010
Jar Assy, Windshield Washer
[09.1974 - 02.1975] RT104,118..EUR FOR HEADLAMP CLEARNER |
85285-20010 |
— | ||
|
85330
|
85330
85285-20011
Jar Assy, Windshield Washer
[02.1975 - 09.1975] RT104,118..EUR FOR HEADLAMP CLEARNER |
85285-20011 |
— | ||
|
85330
|
85330
85330-20100
Jar Assy, Windshield Washer
[08.1973 - 09.1975] RT10#,11# |
85330-20100 |
— | ||
|
85330
|
85330
85330-20150
Jar Assy, Windshield Washer
[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA |
85330-20150 |
— | ||
|
85330A
|
85330A
90099-32057
Bush, Windshield Washer Jar
[08.1973 - 01.1977] RT10#,11# |
90099-32057 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA |
90068-32002 |
US $7.46 |
||
|
85345
|
85345
85341-20080 Nozzle, Windshield WasherWINDSHIELD WASHER [08.1973 - 08.1977] RT10#,11# RH |
85341-20080 |
US $15.29 |
||
| replacement | |||||
|
85345
|
85345
85341-20081
Nozzle, Windshield Washer
[08.1973 - 08.1977] RT10#,11# RH |
85341-20081 |
— | ||
|
85345
|
85345
85341-20081
Nozzle, Windshield Washer
[08.1977 - 05.1979] RT10#,11# RH |
85341-20081 |
— | ||
|
85345
|
85345
85341-20090
Nozzle, Windshield Washer
[08.1973 - 08.1977] RT10#,11# LH |
85341-20090 |
— | ||
| replacement | |||||
|
85345
|
85345
85341-20091
Nozzle, Windshield Washer
[08.1973 - 08.1977] RT10#,11# LH |
85341-20091 |
— | ||
|
85345
|
85345
85341-20091
Nozzle, Windshield Washer
[08.1977 - 05.1979] RT10#,11# LH |
85341-20091 |
— | ||
|
85348
|
85348
85348-12011
Joint, Windshield Washer Hose, No.1
[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA |
85348-12011 |
— | ||
| replacement | |||||
|
85348
|
85348
85375-89141
Joint, Windshield Washer Hose, No.1
[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA |
85375-89141 |
— | ||
|
85348
|
85348
85355-14010
Joint, Windshield Washer Hose, No.1
[08.1973 - 01.1977] RT10#,11# |
85355-14010 |
— | ||
| replacement | |||||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[08.1973 - 01.1977] RT10#,11# |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85355-20070
Joint, Windshield Washer Motor
[08.1973 - 01.1977] RT10#,11# WASHER TANK SIDE |
85355-20070 |
— | ||
| replacement | |||||
|
85348
|
85348
85355-14481 Joint, Windshield Washer Elbow, No.1[08.1973 - 01.1977] RT10#,11# WASHER TANK SIDE |
85355-14481 |
US $0.98 |
||
|
85348
|
85348
85355-87201
Joint, Windshield Washer Hose, No.1
[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA WASHER TANK SIDE |
85355-87201 |
— | ||
| replacement | |||||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA WASHER TANK SIDE |
85349-89122 |
from US $1.25 |
||
|
85360
|
85360
85361-20080
Bracket Assy, Windshield Washer
[09.1974 - 09.1975] RT104,118..EUR FOR HEADLAMP CLEANER |
85361-20080 |
— | ||
|
85371
|
85371
90446-06236 Hose, Windshield Washer (From Motor To Joint)REAR WASHER (FROM MOTOR TO JOINT) [08.1973 - 01.1977] RT10#,11# *H,L=450 |
90446-06236 |
US $2.33 |
||
| replacement | |||||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1973 - 01.1977] RT10#,11# *H,L=450 |
90446-06013 |
US $0.70 |
||
|
85371
|
85371
90446-06286
Hose, Windshield Washer (From Motor To Joint)
[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA *H,L=400 |
90446-06286 |
— | ||
| replacement | |||||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA *H,L=400 |
90446-06013 |
US $0.70 |
||
|
85371
|
85371
90446-06298
Hose, Windshield Washer (From Motor To Joint)
[09.1974 - 09.1975] RT104,118..EUR FOR HEADLAMP CLEARNER |
90446-06298 |
— | ||
|
85372
|
85372
90446-06051
Hose, Windshield Washer (From Motor To Joint)
[08.1973 - 01.1977] RT10#,11# L=320 |
90446-06051 |
— | ||
| replacement | |||||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1973 - 01.1977] RT10#,11# L=320 |
90446-06013 |
US $0.70 |
||
|
85372
|
85372
90446-06205
Hose, Rear Washer (From Joint To Joint Or Nozzle)
[08.1973 - 09.1975] RT10#,11# L=1200 |
90446-06205 |
— | ||
|
85372
|
85372
90446-06253
Hose, Windshield Washer (From Motor To Joint)
[10.1975 - 01.1977] RT10#,11# *H,L=1400 |
90446-06253 |
— | ||
| replacement | |||||
|
85372
|
85372
90446-06006 Hose, Windshield Washer (From Motor To Joint)[10.1975 - 01.1977] RT10#,11# *H,L=1400 |
90446-06006 |
from US $7.14 |
||
|
85372
|
85372
90446-06298
Hose, Windshield Washer (From Motor To Joint)
[09.1974 - 09.1975] RT104,118..EUR FOR HEADLAMP CLEARNER |
90446-06298 |
— | ||
|
85373
|
85373
90099-33248
Hose, Rear Washer (From Joint To Joint), No.3
[01.1977 - 06.1977] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA *H,L=80 |
90099-33248 |
— | ||
|
85373
|
85373
90099-33325
Hose, Windshield Washer (From Joint To Joint), No.6
[06.1977 - 05.1979] RT10#,11#..RHD *H,L=80 |
90099-33325 |
— | ||
|
85373
|
85373
90446-06267 Hose, Windshield Washer (From Joint To Nozzle)WINDSHIELD WASHER (FROM JOINT TO NOZZLE) [08.1973 - 01.1977] RT10#,11# *H,L=315 |
90446-06267 |
US $2.18 |
||
| replacement | |||||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1973 - 01.1977] RT10#,11# *H,L=315 |
90446-06013 |
US $0.70 |
||
|
85373
|
85373
90446-06287
Hose, Windshield Washer (From Joint To Nozzle)
[01.1977 - 05.1979] RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA *H,L=580 |
90446-06287 |
— | ||
|
9046106674
|
9046106674
90461-06674
New Genuine Part
|
90461-06674 |
— | ||
|
9046108339
|
9046108339
90461-08339
New Genuine Part
|
90461-08339 |
— | ||
|
9046306038
|
9046306038
90463-06038
New Genuine Part
|
90463-06038 |
— | ||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.88 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.12 |
||
