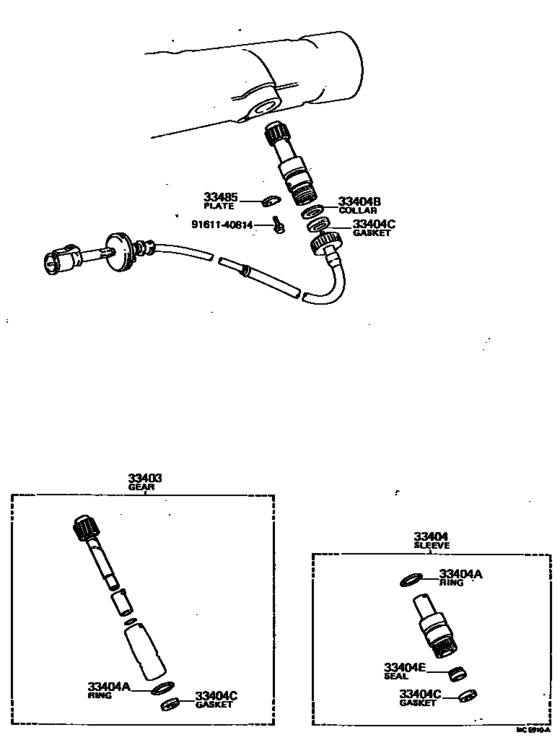

Speedometer Driven Gear (Mtm) ([09.1978 - 05.1979] (7809-7905)4F) Diagram Toyota CORONA
- Year
- 1973 - 1979
- Sales region
- Europe
- Frame
- RT104
- grade
- STD
- body
- SED
- ENGINE
- 18R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- Engine
- 18RC
- To
- 05.1979
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corona
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403
|
33403
33403-69026 Gear Sub-Assy, Speedometer Driven (Mtm)[08.1973 - 09.1975] RT114,118..4F;RT104..RHD..4F N=19; RT102,117..MTM..EUG N=19 |
33403-69026 |
US $11.53 |
||
|
33404
|
33404
33404-30040 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[09.1978 - 05.1979] RT10#,118..4F |
33404-30040 |
from US $15.11 |
||
|
33404
|
33404
33404-39016
Sleeve Sub-Assy, Speedometer Shaft (Mtm)
[08.1973 - 09.1978] RT10#,11#..MTM |
33404-39016 |
— | ||
|
33404A
|
33404A
90301-18018 Ring, O (For Atm Speedometer Driven Hole Cover)[08.1973 - 05.1979] RT10#,11#..MTM |
90301-18018 |
from US $2.96 |
||
|
33404B
|
33404B
90201-07069 Collar, Speedometer Flexible Tube Shaft Gasket (Mtm)[08.1973 - 05.1979] RT10#,11#..MTM |
90201-07069 |
US $2.24 |
||
|
33404C
|
33404C
90303-06017 Gasket, Speedometer Flexible Tube Shaft (Mtm)[08.1973 - 05.1979] RT10#,11#..MTM |
90303-06017 |
US $1.92 |
||
|
33404E
|
33404E
90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[09.1978 - 05.1979] RT10#,118..4F |
90310-09001 |
from US $2.56 |
||
|
33485
|
33485
33485-30010
Plate, Speedometer Sleeve Lock (Mtm)
[08.1973 - 09.1978] RT10#,11#..MTM |
33485-30010 |
— | ||
|
33485
|
33485
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[09.1978 - 05.1979] RT10#,118..4F |
33485-30020 |
from US $1.68 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.88 |
||
