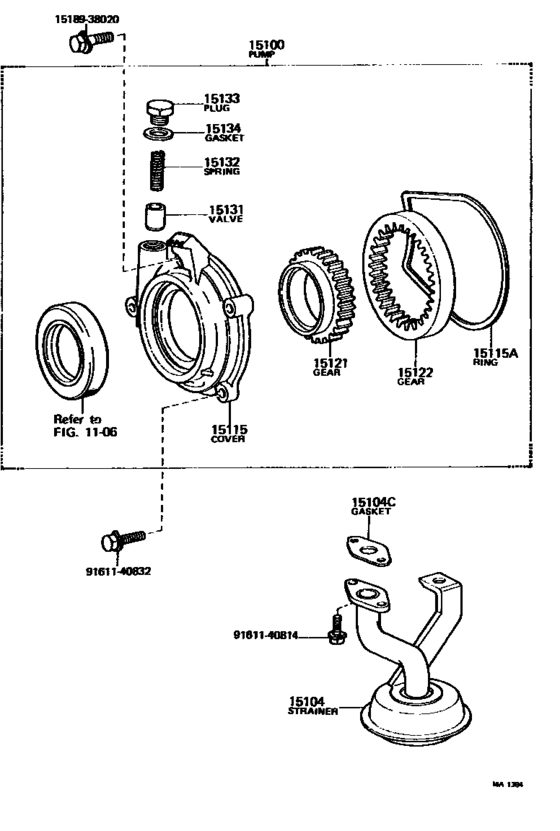

Engine Oil Pump ([08.1974 - 08.1978] (7408-7808)) Diagram Toyota CORONA
- Year
- 1974 - 1976
- Sales region
- U.S.A.
- Frame
- RT105
- grade
- DLX
- body
- SED
- ENGINE
- 20R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1974
- To
- 08.1976
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corona
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1518938020
|
1518938020
15189-38020
Bolt, Seal
|
15189-38020 |
— | ||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161140832
|
9161140832
91611-40832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-40832 |
US $2.33 |
||
| replacement | |||||
|
9161140832
|
9161140832
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.77 |
||
