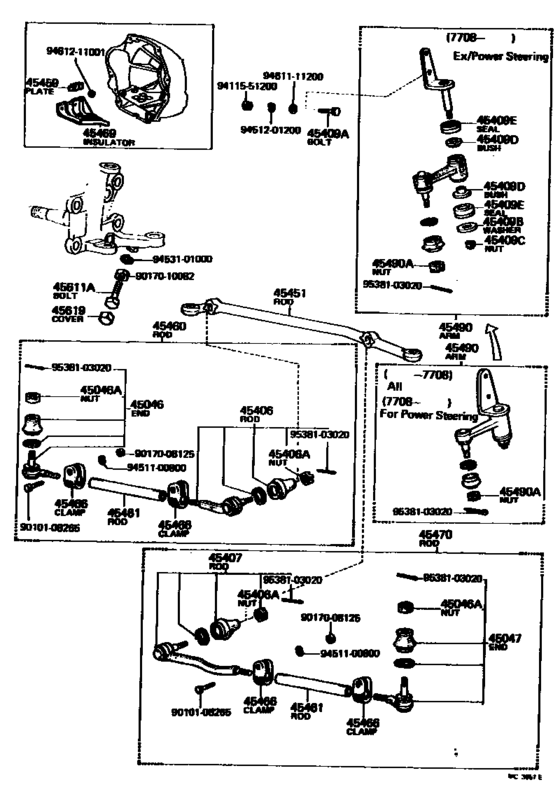

Front Steering Gear & Link ([08.1973 - 08.1978] (7308-7808)) Diagram Toyota CORONA
- Year
- 1974 - 1978
- Sales region
- U.S.A.
- Frame
- RT105
- grade
- DLX
- body
- SED
- ENGINE
- 20R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1974
- To
- 08.1978
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corona
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9010108265
|
9010108265
90101-08265 New Genuine Part |
90101-08265 |
US $7.04 |
||
|
9017008125
|
9017008125
90170-08125 New Genuine Part |
90170-08125 |
US $5.12 |
||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.56 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $2.72 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.74 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
|
9461111200
|
9461111200
94611-11200 New Genuine Part |
94611-11200 |
US $2.56 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
