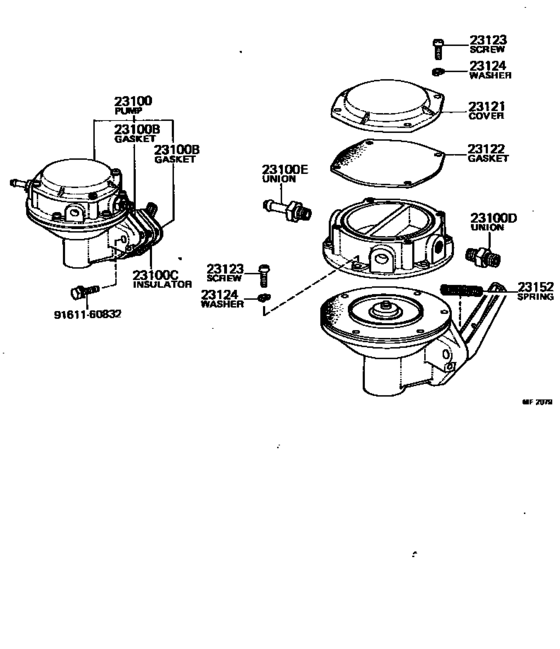

Fuel Pump & Pipe ([08.1973 - 05.1979] (7308-7905)16R,18R#) Diagram Toyota CORONA
- Year
- 1973 - 1975
- Sales region
- General
- Frame
- RT112
- grade
- DLX
- body
- HT
- ENGINE
- 16R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 09.1975
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corona
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-39115 Pump Assy, FuelFUEL [08.1973 - 11.1973] 16R,18R..RT102,104,112,114,117,118 |
23100-39115 |
US $123.76 |
||
| replacement | |||||
|
23100
|
23100
23100-39118
Pump Assy, Fuel
[08.1973 - 11.1973] 16R,18R..RT102,104,112,114,117,118 |
23100-39118 |
— | ||
|
23100
|
23100
23100-39116 Pump Assy, FuelFUEL [11.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
23100-39116 |
US $123.76 |
||
| replacement | |||||
|
23100
|
23100
23100-39118
Pump Assy, Fuel
[11.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
23100-39118 |
— | ||
|
23100B
|
23100B
90923-05005
Gasket, Cylinder Block Side Cover, No.2
[08.1973 - 09.1975] 12R,16R,18R..RT10#,11# |
90923-05005 |
— | ||
| replacement | |||||
|
23100B
|
23100B
90923-05019 Gasket, Fuel Pump[08.1973 - 09.1975] 12R,16R,18R..RT10#,11# |
90923-05019 |
from US $3 |
||
|
23100C
|
23100C
90923-06001
Insulator, Fuel Pump
[08.1973 - 09.1975] 12R,16R,18R..RT10#,11# |
90923-06001 |
— | ||
| replacement | |||||
|
23100C
|
23100C
90923-06009 Insulator, Fuel Pump[08.1973 - 09.1975] 12R,16R,18R..RT10#,11# |
90923-06009 |
from US $5.60 |
||
|
23100D
|
23100D
23119-36020
Union, Nipple(For Fuel Outlet)
[11.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 AISAN |
23119-36020 |
— | ||
|
23100D
|
23100D
90404-13105
Bolt, Union(For Oil Filter Inlet Pipe)
[08.1973 - 09.1975] 12R,16R,18R..RT10#,11# |
90404-13105 |
— | ||
|
23100E
|
23100E
23119-45020 Union, No.3[11.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 AISAN |
23119-45020 |
US $26.94 |
||
|
23100E
|
23100E
90404-51244 Union, Nipple(For Fuel Outlet)NIPPLE(FOR FUEL INLET) [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
90404-51244 |
US $21.84 |
||
|
23121
|
23121
23121-34050
Cover, Fuel Pump
[11.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 AISAN |
23121-34050 |
— | ||
|
23121
|
23121
23121-41030
Cover, Fuel Pump
[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
23121-41030 |
— | ||
|
23122
|
23122
23122-34050
Gasket, Fuel Pump Cover
[11.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 AISAN |
23122-34050 |
— | ||
|
23122
|
23122
23122-41030
Gasket, Fuel Pump Cover
[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
23122-41030 |
— | ||
|
23123
|
23123
23123-60022
Screw, Cover Set, No.1
[08.1973 - 11.1973] 16R,18R..RT102,104,112,114,117,118 |
23123-60022 |
— | ||
|
23123
|
23123
93219-15014 Screw, Cover Set, No.1[11.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 AISAN |
93219-15014 |
US $1.92 |
||
|
23123
|
23123
93319-15014 Screw, Cover Set, No.1[11.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
93319-15014 |
US $2.24 |
||
|
23124
|
23124
94511-00500 Washer, Cover Set, No.2[11.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 AISAN |
94511-00500 |
from US $0.24 |
||
|
23152
|
23152
23152-34040
Spring, Rocker Arm
[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
23152-34040 |
— | ||
|
23152
|
23152
23152-42012
Spring, Rocker Arm
[11.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 AISAN |
23152-42012 |
— | ||
|
9161160832
|
9161160832
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.77 |
||
