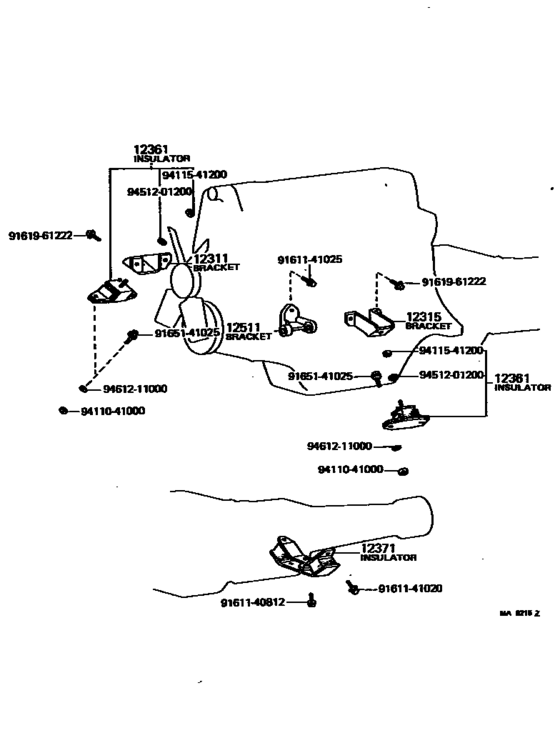

Mounting ([08.1973 - 08.1974] (7308-7408)) Diagram Toyota CORONA
- Year
- 1973 - 1974
- Sales region
- U.S.A.
- Frame
- RT114
- grade
- DLX
- body
- HT
- ENGINE
- 18RC
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 08.1974
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corona
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161141025
|
9161141025
91611-41025
Bolt(for Transaxle & Engine Setting)
|
91611-41025 |
— | ||
| replacement | |||||
|
9161141025
|
9161141025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.09 |
||
|
9161961222
|
9161961222
91619-61222 New Genuine Part |
91619-61222 |
US $2.04 |
||
| replacement | |||||
|
9161961222
|
9161961222
91619-G1222 BOLT WWASHER |
91619-G1222 |
US $3.52 |
||
|
9165141025
|
9165141025
91651-41025
Bolt(For Transaxle Case & Engine Setting)
|
91651-41025 |
— | ||
| replacement | |||||
|
9165141025
|
9165141025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.54 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.74 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $2.72 |
||
