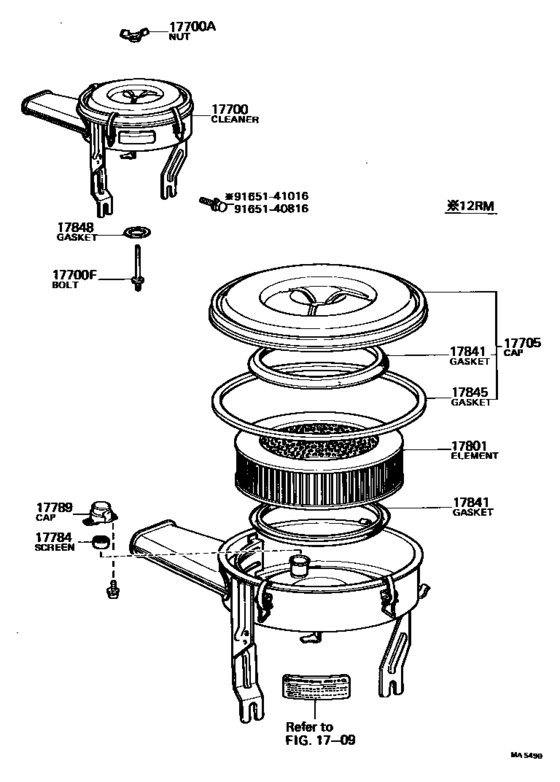

Air Cleaner ([09.1978 - 12.1981] (7809-8112)12R#) Diagram Toyota CORONA
- Year
- 1978 - 1979
- Sales region
- General
- Frame
- RT130
- grade
- DLX
- body
- SED
- ENGINE
- 12R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CORONA
- From
- 09.1978
- To
- 08.1979
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Driver's Position
- LHD
- Rear Suspention
- LEF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-31360 Cleaner Assy, Air[09.1978 - 08.1979] 12R..RT130 |
17700-31360 |
US $212.58 |
||
| replacement | |||||
|
17700
|
17700
17700-31361
Cleaner Assy, Air
[09.1978 - 08.1979] 12R..RT130 |
17700-31361 |
— | ||
|
17700
|
17700
17700-31380 Cleaner Assy, Air[09.1978 - 08.1979] 12R..RT130 W/HOT AIR INTAKE |
17700-31380 |
US $267.90 |
||
| replacement | |||||
|
17700
|
17700
17700-31381 Cleaner Assy, Air[09.1978 - 08.1979] 12R..RT130 W/HOT AIR INTAKE |
17700-31381 |
US $270.82 |
||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[09.1978 - 01.1983] 2T,3T..TT13#; 21RC,12R#,18R#..RT13# |
90175-06003 |
from US $1.27 |
||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[09.1978 - 12.1981] 12R#..RT130; 3T..TT132 |
90116-06142 |
US $2.53 |
||
|
17705
|
17705
17705-31032
Cap Sub-Assy, Air Cleaner
[09.1978 - 10.1981] 12R#..RT130 WHITE |
17705-31032 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-31033
Cap Sub-Assy, Air Cleaner
[09.1978 - 10.1981] 12R#..RT130 WHITE |
17705-31033 |
— | ||
|
17784
|
17784
17784-31010
Screen, Air Cleaner
[09.1978 - 05.1982] 12R#,18R#..RT130,132 |
17784-31010 |
— | ||
|
17789
|
17789
17789-31020
Cap, Air Cleaner Screen
[09.1978 - 12.1981] 12R#..RT130 |
17789-31020 |
— | ||
|
17801
|
17801
17801-25010 Element Sub-Assy, Air Cleaner Filter[09.1978 - 12.1981] 12R#..RT130; 2T,3T..TT13# |
17801-25010 |
from US $20.82 |
||
|
17841
|
17841
17841-31020
Gasket, Filter Element
[09.1978 - 12.1981] 12R#..RT130; 2T,3T..TT13# |
17841-31020 |
— | ||
|
17845
|
17845
17845-31020
Gasket, Air Cleaner Cap
[09.1978 - 10.1979] 12R#..RT130 |
17845-31020 |
— | ||
| replacement | |||||
|
17845
|
17845
17845-42010
Gasket, Air Cleaner Cap
[09.1978 - 10.1979] 12R#..RT130 |
17845-42010 |
— | ||
|
17848
|
17848
90430-63187
Gasket, Air Cleaner To Carburetor
[09.1978 - 10.1979] 12R#..RT130; 2T,3T..TT13# |
90430-63187 |
— | ||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165141016
|
9165141016
91651-41016 Bolt(For Transaxle & Engine Setting) |
91651-41016 |
US $2.80 |
||
