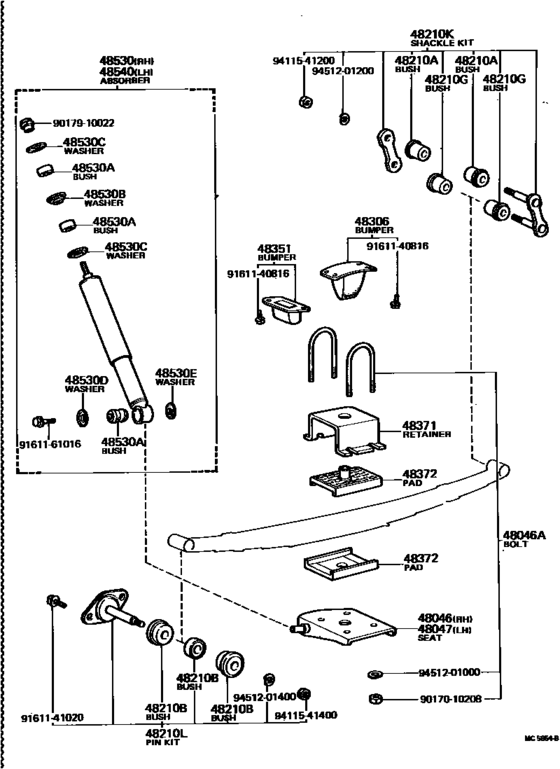

Rear Spring & Shock Absorber ([09.1978 - 05.1982] (7809-8205)SED..LEF) Diagram Toyota CORONA
- Year
- 1978 - 1979
- Sales region
- General
- Frame
- RT130
- grade
- DLX
- body
- SED
- ENGINE
- 12R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CORONA
- From
- 09.1978
- To
- 08.1979
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Driver's Position
- LHD
- Rear Suspention
- LEF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48046
|
48046
48046-20040 Seat Sub-Assy, Spring U Bolt, Rh[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
48046-20040 |
US $18.35 |
||
|
48046A
|
48046A
90118-10123 Bolt, U(For Rear Spring)U(FOR REAR SPRING) [09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
90118-10123 |
US $8.88 |
||
| replacements | |||||
|
48046A
|
48046A
90117-10003 Bolt, U(For Rear Spring)[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
90117-10003 |
from US $11.88 |
||
|
48046A
|
48046A
90170-10208 NUT[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
90170-10208 |
US $1.28 |
||
|
48046A
|
48046A
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
94512-01000 |
from US $0.76 |
||
|
48047
|
48047
48047-20040 Seat Sub-Assy, Spring U Bolt, Lh[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
48047-20040 |
US $20.24 |
||
|
48210A
|
48210A
90385-15039 Bush(For Rear Spring Shackle Upper)[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
90385-15039 |
US $4.80 |
||
|
48210B
|
48210B
90385-17069 Bush(For Rear Spring Pin)[09.1978 - 08.1980] RT130,TT133..SED..LEF TAXI SPEC |
90385-17069 |
US $9.90 |
||
|
48210B
|
48210B
90385-17073 Bush(For Rear Spring Pin)[09.1978 - 05.1982] RT130,132,TT133..SED..LEF..GEN OD=58 |
90385-17073 |
US $8.01 |
||
|
48210B
|
48210B
90389-17037 Bush(For Rear Spring Pin)[09.1978 - 05.1982] RT130,132,TT133..SED..LEF..GEN OD=46.6 |
90389-17037 |
US $10.34 |
||
|
48210G
|
48210G
90385-05001 Bush(For Rear Spring Shackle Lower)[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
90385-05001 |
US $8.15 |
||
|
48210K
|
48210K
04483-21030 Shackle Kit, Rear Spring[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
04483-21030 |
US $25.77 |
||
|
48210L
|
48210L
04484-20020 Pin Kit, Rear SpringREAR SPRING [09.1978 - 05.1982] RT130,132,TT133..SED..LEF..GEN |
04484-20020 |
US $35.09 |
||
|
48210L
|
48210L
04484-20040 Pin Kit, Rear Spring[09.1978 - 08.1980] RT130,TT133..SED..LEF TAXI SPEC |
04484-20040 |
US $17.47 |
||
|
48306
|
48306
48306-29025 Bumper Sub-Assy, Rear SpringREAR SPRING [09.1978 - 12.1981] RT130,132,TT133..SED..LEF |
48306-29025 |
US $14.41 |
||
|
48351
|
48351
48351-29025
Bumper, Differential Carrier
[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
48351-29025 |
— | ||
|
48371
|
48371
48371-20110
Retainer, Rear Spring Pad
[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
48371-20110 |
— | ||
|
48372
|
48372
48372-22010 Pad, Rear SpringREAR SPRING [09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
48372-22010 |
from US $10.88 |
||
|
48530
|
48530
48531-29555 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
48531-29555 |
US $78.62 |
||
| replacement | |||||
|
48530
|
48530
48531-80435 Absorber Assy, Shock, Rear Rh[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
48531-80435 |
US $91.73 |
||
|
48530A
|
48530A
90385-16060 Bush(For Rear Shock Absorber)[09.1978 - 08.1980] RT13#,TT13#,XT130 LWR |
90385-16060 |
US $8.74 |
||
| replacement | |||||
|
48530A
|
48530A
90385-16004 Cushion, Front Shock Absorber[09.1978 - 08.1980] RT13#,TT13#,XT130 LWR |
90385-16004 |
from US $3.28 |
||
|
48530A
|
48530A
90540-10004 Bush(For Rear Shock Absorber)[09.1978 - 10.1978] RT13#,TT132 UPR,OD=30,ID=10 |
90540-10004 |
US $3.68 |
||
|
48530A
|
48530A
90540-10005 Bush(For Rear Shock Absorber)[09.1978 - 08.1980] RT13#,TT13#,XT130 UPR,OD=30,ID=10&14 |
90540-10005 |
from US $3.37 |
||
|
48530B
|
48530B
90948-02007 Retainer, Steering Damper Cushion[09.1978 - 10.1979] RT13#,TT13#,XT130 |
90948-02007 |
US $2.72 |
||
|
48530C
|
48530C
90948-02002 Retainer, Steering Damper Cushion[09.1978 - 01.1983] RT13#,TT13#,XT130 LWR,ID=10.5 |
90948-02002 |
from US $1.35 |
||
|
48530C
|
48530C
90948-02045 Washer, Rear Shock Absorber Cushion, No.1[09.1978 - 01.1983] RT13#,TT13#,XT130 UPR,ID=14 |
90948-02045 |
US $3.89 |
||
|
48530D
|
48530D
90948-03012 Washer, Front Shock Absorber Cushion, No.1[09.1978 - 01.1983] RT13#,TT13#,XT130 |
90948-03012 |
US $1.60 |
||
|
48530E
|
48530E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[09.1978 - 01.1983] RT13#,TT13#,XT130 |
90948-03004 |
from US $1.42 |
||
|
48540
|
48540
48531-29555 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
48531-29555 |
US $78.62 |
||
| replacement | |||||
|
48540
|
48540
48531-80435 Absorber Assy, Shock, Rear Rh[09.1978 - 05.1982] RT130,132,TT133..SED..LEF |
48531-80435 |
US $91.73 |
||
|
9017010208
|
9017010208
90170-10208 NUT |
90170-10208 |
US $1.28 |
||
|
9017910022
|
9017910022
90179-10022 Nut(For Rear Support To Rear Shock Absorber) |
90179-10022 |
US $4.16 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.24 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9411541400
|
9411541400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $2.62 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.60 |
||
