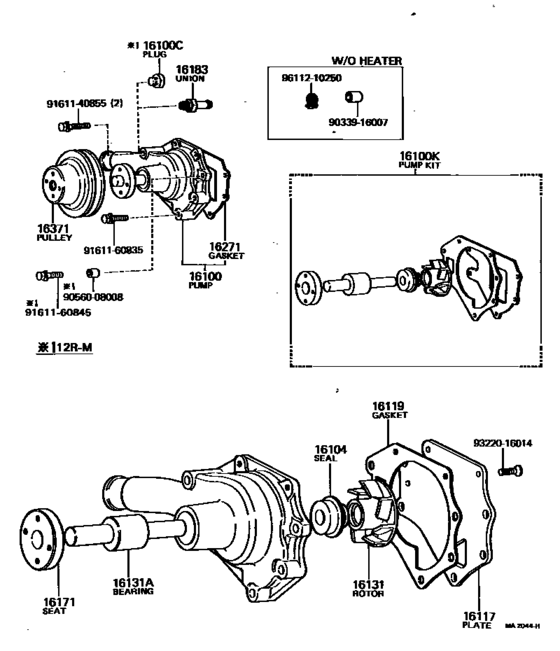

Water Pump ([09.1978 - 12.1981] (7809-8112)12R#) Diagram Toyota CORONA
- Year
- 1978 - 1979
- Sales region
- General
- Frame
- RT130
- grade
- DLX
- body
- SED
- ENGINE
- 12R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CORONA
- From
- 09.1978
- To
- 08.1979
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Driver's Position
- LHD
- Rear Suspention
- LEF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-39116
Pump Assy, Engine Water
[09.1978 - 12.1981] 12R#..RT130 |
16100-39116 |
— | ||
|
16100K
|
16100K
04161-31023
Pump Kit, Water
[09.1978 - 12.1981] 12R#..RT130 |
04161-31023 |
— | ||
|
16104
|
16104
16104-41111
Seal Set, Water Pump
[09.1978 - 01.1983] 21RC,12R#..RT130,133 |
16104-41111 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[09.1978 - 01.1983] 21RC,12R#..RT130,133 |
16104-15020 |
US $22.13 |
||
|
16117
|
16117
16117-31031 Plate, Water Pump[09.1978 - 12.1981] 12R#..RT130 |
16117-31031 |
US $12.52 |
||
|
16119
|
16119
16124-31031
Gasket, Water Pump Body
[09.1978 - 12.1981] 12R#..RT130 |
16124-31031 |
— | ||
| replacement | |||||
|
16119
|
16119
16124-31032
Gasket, Water Pump Body
[09.1978 - 12.1981] 12R#..RT130 |
16124-31032 |
— | ||
|
16131
|
16131
16131-31031
Rotor, Water Pump
[09.1978 - 12.1981] 12R#..RT130 |
16131-31031 |
— | ||
|
16131A
|
16131A
90369-30003 Bearing, Water Pump[09.1978 - 12.1981] 12R#..RT130 WPB,16124 BR-1-R |
90369-30003 |
US $54.31 |
||
| replacement | |||||
|
16131A
|
16131A
90369-30022
Bearing, Water Pump
[09.1978 - 12.1981] 12R#..RT130 WPB,16124 BR-1-R |
90369-30022 |
— | ||
|
16171
|
16171
16171-24031 Seat, Water Pump Pulley[09.1978 - 12.1981] 12R#..RT130 |
16171-24031 |
US $14.71 |
||
|
16183
|
16183
87251-30200 Union(For Water By-Pass Hose)[09.1978 - 08.1979] 12R..RT130 |
87251-30200 |
from US $5.24 |
||
|
16271
|
16271
16271-31010
Gasket, Water Pump
[09.1978 - 12.1981] 12R#..RT130 |
16271-31010 |
— | ||
|
16371
|
16371
16371-31022 Pulley, Fan[09.1978 - 12.1981] 12R#..RT130 |
16371-31022 |
US $21.55 |
||
|
9033916007
|
9033916007
90339-16007
Plug
|
90339-16007 |
— | ||
| replacement | |||||
|
9033916007
|
9033916007
90339-16001 Plug, Heater Water |
90339-16001 |
from US $2.88 |
||
|
9056008008
|
9056008008
90560-08008
Spacer, Fan
|
90560-08008 |
— | ||
|
9161140855
|
9161140855
91611-40855
Bolt(For Rocker Support Set)
|
91611-40855 |
— | ||
| replacement | |||||
|
9161140855
|
9161140855
91611-60855 Bolt(For Rocker Support Set) |
91611-60855 |
US $1.60 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9161160845
|
9161160845
91611-60845
Bolt(for Clutch Release Cylinder Setting)
|
91611-60845 |
— | ||
| replacement | |||||
|
9161160845
|
9161160845
91611-B0845 Bolt(for Clutch Release Cylinder Setting) |
91611-B0845 |
US $2.72 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
US $1.60 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.75 |
||
