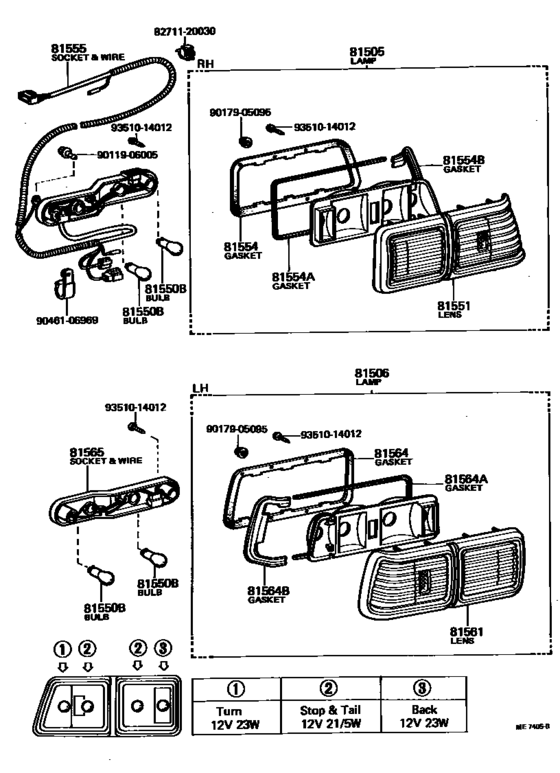

Rear Combination Lamp ([09.1978 - 08.1980] (7809-8008)HT) Diagram Toyota CORONA
- Year
- 1978 - 1980
- Sales region
- Europe
- Frame
- RT132
- grade
- DLX
- body
- HT
- ENGINE
- 18R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CORONA
- From
- 09.1978
- To
- 08.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Driver's Position
- LHD
- Rear Suspention
- LNK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-29205
Lamp Sub-Assy, Rear Combination, Rh
[09.1978 - 08.1980] RT132,TT132..HT |
81505-29205 |
— | ||
|
81506
|
81506
81506-29125
Lamp Sub-Assy, Rear Combination, Lh
[09.1978 - 08.1980] RT132,TT132..HT |
81506-29125 |
— | ||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[09.1978 - 01.1983] RT130,132,TT13#,XT130..HT,WG 12V 23W,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[09.1978 - 01.1983] RT130,132,TT13#,XT130..HT,WG 12V 23W,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[09.1978 - 08.1980] RT13#,TT132;TT133,XT130..SED 12V 21/5W,12V 21/5W |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-95500
Lens, Rear Combination Lamp, Rh
[09.1978 - 08.1980] RT132,TT132..HT |
81551-95500 |
— | ||
|
81554
|
81554
81552-95500
Gasket, Rear Combination Lamp Body, Rh
[09.1978 - 08.1980] RT132,TT132..HT |
81552-95500 |
— | ||
|
81554A
|
81554A
81556-95500
Gasket, Rear Combination Lamp Body, No.1 Rh
[09.1978 - 12.1981] RT132,TT132..HT |
81556-95500 |
— | ||
|
81554B
|
81554B
81554-95500
Gasket, Rear Combination Lamp Body, No.2 Rh
[09.1978 - 08.1980] RT132,TT132..HT |
81554-95500 |
— | ||
|
81554B
|
81554B
81556-95501
Gasket, Rear Combination Lamp Body, No.2 Rh
[08.1980 - 12.1981] TT132..HT |
81556-95501 |
— | ||
|
81555
|
81555
81555-95500
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1978 - 08.1979] RT132..HT |
81555-95500 |
— | ||
|
81555
|
81555
81555-95501
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1979 - 08.1980] RT132,TT132..HT |
81555-95501 |
— | ||
|
81561
|
81561
81561-95500
Lens, Rear Combination Lamp, Lh
[09.1978 - 08.1980] RT132,TT132..HT |
81561-95500 |
— | ||
|
81564
|
81564
81552-95500
Gasket, Rear Combination Lamp Body, Rh
[09.1978 - 08.1980] RT132,TT132..HT |
81552-95500 |
— | ||
|
81564A
|
81564A
81556-95500
Gasket, Rear Combination Lamp Body, No.1 Rh
[09.1978 - 12.1981] RT132,TT132..HT |
81556-95500 |
— | ||
|
81564B
|
81564B
81556-95501
Gasket, Rear Combination Lamp Body, No.2 Rh
[08.1980 - 12.1981] TT132..HT |
81556-95501 |
— | ||
|
81564B
|
81564B
81564-95500
Gasket, Rear Combination Lamp Body, No.2 Lh
[09.1978 - 08.1980] RT132,TT132..HT |
81564-95500 |
— | ||
|
81565
|
81565
81565-95500
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[09.1978 - 08.1980] RT132,TT132..HT |
81565-95500 |
— | ||
|
8271120030
|
8271120030
82711-20030 Clamp, Wiring Harness |
82711-20030 |
US $3.35 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
|
9046106969
|
9046106969
90461-06969 New Genuine Part |
90461-06969 |
US $2.33 |
||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $1.60 |
||
