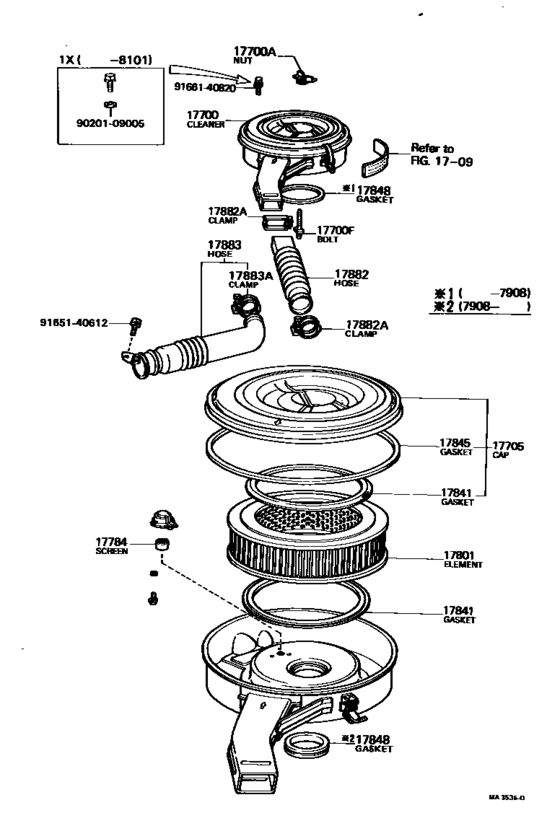

Air Cleaner ([09.1978 - ] (7809- )18R) Diagram Toyota CORONA
- Year
- 1978 - 1980
- Sales region
- General
- Frame
- RT132
- grade
- DLX
- body
- HT
- ENGINE
- 18R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CORONA
- From
- 09.1978
- To
- 08.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Driver's Position
- LHD
- Rear Suspention
- LNK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-34550
Cleaner Assy, Air
[08.1979 - 05.1982] 18R..RT132 W/O HOT AIR INTAKE |
17700-34550 |
— | ||
|
17700
|
17700
17700-36190
Cleaner Assy, Air
[09.1978 - 08.1979] 18R..RT132 W/O HOT AIR INTAKE |
17700-36190 |
— | ||
| replacement | |||||
|
17700
|
17700
17700-34550
Cleaner Assy, Air
[09.1978 - 08.1979] 18R..RT132 W/O HOT AIR INTAKE |
17700-34550 |
— | ||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[09.1978 - 01.1983] 2T,3T..TT13#; 21RC,12R#,18R#..RT13# |
90175-06003 |
from US $1.23 |
||
|
17700F
|
17700F
90116-06143
Bolt, Stud(For Air Cleaner Setting)
[09.1978 - 05.1982] 18R#..RT132 |
90116-06143 |
— | ||
|
17705
|
17705
17705-34190
Cap Sub-Assy, Air Cleaner
[09.1978 - 05.1982] 18R#..RT132 |
17705-34190 |
— | ||
|
17784
|
17784
17784-31010
Screen, Air Cleaner
[09.1978 - 05.1982] 12R#,18R#..RT130,132 |
17784-31010 |
— | ||
|
17801
|
17801
17801-34060 Element Sub-Assy, Air Cleaner Filter[09.1978 - 05.1982] 18R#..RT132 |
17801-34060 |
US $24.02 |
||
|
17841
|
17841
17841-33011
Gasket, Filter Element
[09.1978 - 05.1982] 18R#..RT132 |
17841-33011 |
— | ||
|
17845
|
17845
17845-33011
Gasket, Air Cleaner Cap
[09.1978 - 05.1982] 18R#..RT132 |
17845-33011 |
— | ||
| replacement | |||||
|
17845
|
17845
17845-42010
Gasket, Air Cleaner Cap
[09.1978 - 05.1982] 18R#..RT132 |
17845-42010 |
— | ||
|
17848
|
17848
90430-72003
Gasket, Air Cleaner To Carburetor
[08.1979 - 05.1982] 18R#..RT132 |
90430-72003 |
— | ||
|
17848
|
17848
90430-72114
Gasket, Air Cleaner To Carburetor
[09.1978 - 08.1979] 18R..RT132 |
90430-72114 |
— | ||
|
17882
|
17882
17882-34070
Hose, Air Cleaner, No.2
[09.1978 - 01.1983] 18R#..RT132; 1X..XT130 |
17882-34070 |
— | ||
|
17882A
|
17882A
90460-01003
Clamp(For Air Cleaner Hose, No.2)
[09.1978 - 01.1983] 18R#..RT132 AIR CLEANER SIDE; 2T,3T..TT13# AIR CLEANER SIDE; 1X..XT130 AIR CLEANER SIDE |
90460-01003 |
— | ||
|
17882A
|
17882A
90460-58013
Clamp Or Clip, Hose(For Radiator Outlet No.1)
[09.1978 - 01.1979] 18R..RT132 FENDER SIDE; 3T..TT132 FENDER SIDE |
90460-58013 |
— | ||
| replacement | |||||
|
17882A
|
17882A
96111-10580 Clamp Or Clip, Hose(For Radiator Outlet No.1)[09.1978 - 01.1979] 18R..RT132 FENDER SIDE; 3T..TT132 FENDER SIDE |
96111-10580 |
from US $2.72 |
||
|
17882A
|
17882A
96111-10570 Clamp Or Clip, Hose(For Radiator Outlet No.1)[01.1979 - 01.1983] 18R#..RT132 FENDER SIDE; 2T,3T..TT13# FENDER SIDE; 1X..XT130 FENDER SIDE |
96111-10570 |
US $2.56 |
||
|
17883
|
17883
53299-20030
Hose, Air Cleaner, No.3
[09.1978 - 05.1980] 18R#..RT132; 1X..XT130 |
53299-20030 |
— | ||
| replacement | |||||
|
17883
|
17883
53299-20031
Hose, Air Cleaner, No.3
[09.1978 - 05.1980] 18R#..RT132; 1X..XT130 |
53299-20031 |
— | ||
|
17883A
|
17883A
90460-60001 Clamp(For Air Cleaner Hose, No.3)[09.1978 - 05.1980] 18R#..RT132; 1X..XT130 |
90460-60001 |
US $3.06 |
||
|
9020109005
|
9020109005
90201-09005
New Genuine Part
|
90201-09005 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9166140820
|
9166140820
91661-40820 New Genuine Part |
91661-40820 |
from US $1.66 |
||
