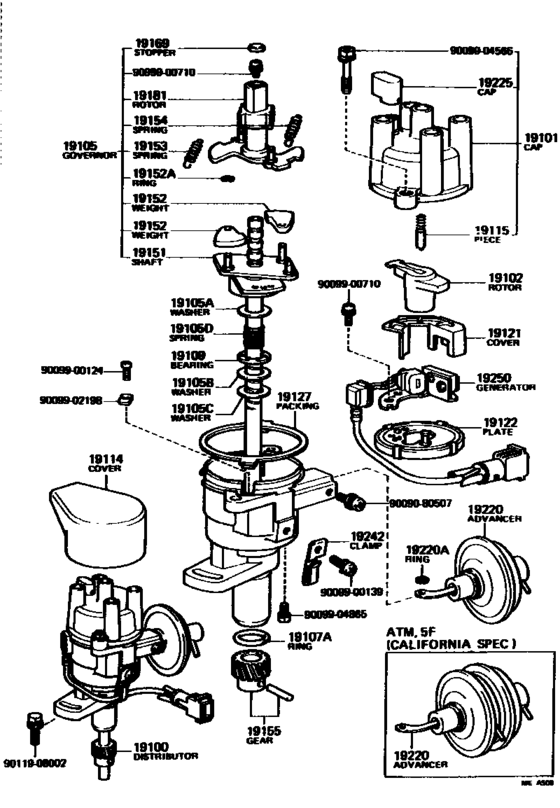

Distributor ([09.1978 - 08.1980] (7809-8008)) Diagram Toyota CORONA
- Year
- 1978 - 1980
- Sales region
- U.S.A.
- Frame
- RT134
- grade
- DLX
- body
- SED
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 09.1978
- To
- 08.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-38150 Distributor Assy[09.1978 - 08.1979] 20R..RT134..MTM..USA |
19100-38150 |
US $755.66 |
||
| replacement | |||||
|
19100
|
19100
19100-38081
Distributor Assy
[09.1978 - 08.1979] 20R..RT134..MTM..USA |
19100-38081 |
— | ||
|
19100
|
19100
19100-38180
Distributor Assy
[09.1978 - 08.1979] 20R..RT134..ATM..USA; 20R..RT134..MTM..USA CALIFORNIA SPEC |
19100-38180 |
— | ||
| replacement | |||||
|
19100
|
19100
19100-38091
Distributor Assy
[09.1978 - 08.1979] 20R..RT134..ATM..USA; 20R..RT134..MTM..USA CALIFORNIA SPEC |
19100-38091 |
— | ||
|
19100
|
19100
19100-38240 Distributor Assy[08.1979 - 08.1980] 20R..RT134..USA |
19100-38240 |
US $1,023.57 |
||
| replacement | |||||
|
19100
|
19100
19100-38210
Distributor Assy
[08.1979 - 08.1980] 20R..RT134..USA |
19100-38210 |
— | ||
|
19101
|
19101
19101-38150 Cap Sub-Assy, DistributorDISTRIBUTOR [09.1978 - 08.1979] 20R..RT134 |
19101-38150 |
US $37.71 |
||
|
19101
|
19101
19101-38210
Cap Sub-Assy, Distributor
[08.1979 - 12.1981] 20R,22R..RT13# |
19101-38210 |
— | ||
|
19102
|
19102
19102-15021 Rotor Sub-Assy, Distributor[08.1979 - 08.1980] 20R..RT134..USA |
19102-15021 |
US $9.46 |
||
| replacement | |||||
|
19102
|
19102
19102-38210 Rotor Sub-Assy, DistributorDISTRIBUTOR [08.1979 - 08.1980] 20R..RT134..USA |
19102-38210 |
US $15.20 |
||
|
19102
|
19102
19102-33012 Rotor Sub-Assy, Distributor[09.1978 - 08.1979] 20R..RT134..USA |
19102-33012 |
from US $8.31 |
||
|
19105
|
19105
19105-38040
Governor Sub-Assy
[09.1978 - 08.1979] 20R..RT134 |
19105-38040 |
— | ||
|
19105
|
19105
19105-38210
Governor Sub-Assy
[08.1979 - 08.1980] 20R..RT134 |
19105-38210 |
— | ||
|
19105A
|
19105A
90099-01417
Washer(For Governor Shaft Thrust)
[09.1978 - 08.1980] 20R..RT134 |
90099-01417 |
— | ||
|
19105B
|
19105B
90099-01426
Washer, No.2(For Governor Shaft Thrust)
[09.1978 - 08.1980] 20R..RT134 |
90099-01426 |
— | ||
|
19105C
|
19105C
90099-01427
Washer, No.3(For Governor Shaft Thrust)
[09.1978 - 08.1980] 20R..RT134 |
90099-01427 |
— | ||
|
19105D
|
19105D
90099-17113
Spring, No.1(For Governor Shaft Thrust)
[09.1978 - 08.1980] 20R..RT134 |
90099-17113 |
— | ||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[09.1978 - 12.1981] 20R,22R..RT13# |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[09.1978 - 12.1981] 20R,22R..RT13# |
90099-14090 |
from US $2.80 |
||
|
19109
|
19109
19109-38010
Bearing, Thrust
[09.1978 - 08.1980] 20R..RT134 |
19109-38010 |
— | ||
|
19114
|
19114
19114-38150
Cover, Water Proof(For Distributor)
[09.1978 - 08.1979] 20R..RT134..CND; 20R..RT134..USA COLD SPEC |
19114-38150 |
— | ||
|
19114
|
19114
19114-38151
Cover, Water Proof(For Distributor)
[08.1979 - 08.1981] 20R,22R..RT13#..CND; 20R,22R..RT13#..USA COLD SPEC |
19114-38151 |
— | ||
| replacement | |||||
|
19114
|
19114
19114-35011
Cover, Water Proof(For Distributor)
[08.1979 - 08.1981] 20R,22R..RT13#..CND; 20R,22R..RT13#..USA COLD SPEC |
19114-35011 |
— | ||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[09.1978 - 12.1981] 20R,22R..RT13# |
19115-50010 |
— | ||
|
19121
|
19121
19121-27020
Cover, Dust Proof
[09.1978 - 08.1979] 20R..RT134 |
19121-27020 |
— | ||
|
19121
|
19121
19121-38210
Cover, Dust Proof
[08.1979 - 12.1981] 20R,22R..RT13# |
19121-38210 |
— | ||
|
19122
|
19122
19122-88262
Plate, Stationary, Distributor
[09.1978 - 12.1981] 20R,22R..RT13# |
19122-88262 |
— | ||
|
19127
|
19127
19127-15010
Packing, Dust Proof
[09.1978 - 12.1978] 20R..RT134 |
19127-15010 |
— | ||
|
19127
|
19127
19127-15021 Packing, Dust Proof[08.1979 - 12.1981] 20R,22R..RT13# |
19127-15021 |
from US $1.40 |
||
|
19127
|
19127
19127-38150
Packing, Dust Proof
[12.1978 - 08.1979] 20R..RT134 |
19127-38150 |
— | ||
|
19151
|
19151
19151-38011 Shaft, GovernorGOVERNOR [09.1978 - 08.1981] 20R,22R..RT13# |
19151-38011 |
US $75.71 |
||
|
19152
|
19152
19152-44170
Weight, Governor
[09.1978 - 08.1981] 20R,22R..RT13# |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07104
Ring, Snap(For Governor Weight)
[09.1978 - 08.1980] 20R..RT134 |
90099-07104 |
— | ||
|
19153
|
19153
19153-38040
Spring, Governor, A
[09.1978 - 08.1980] 20R..RT134 |
19153-38040 |
— | ||
|
19154
|
19154
19154-38040
Spring, Governor, B
[09.1978 - 08.1980] 20R..RT134 |
19154-38040 |
— | ||
|
19155
|
19155
19195-38150 Gear, Spiral, DistributorSPIRAL, DISTRIBUTOR [09.1978 - 08.1979] 20R..RT134 |
19195-38150 |
US $45.28 |
||
|
19155
|
19155
19195-38210 Gear, Spiral, Distributor[08.1979 - 12.1981] 20R,22R..RT13# |
19195-38210 |
US $42.37 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[09.1978 - 12.1981] 20R,22R..RT13# |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[09.1978 - 12.1981] 20R,22R..RT13# |
19169-63011 |
— | ||
|
19181
|
19181
19181-26280
Rotor, Distributor, Signal
[09.1978 - 08.1979] 20R..RT134 |
19181-26280 |
— | ||
|
19181
|
19181
19181-38210
Rotor, Distributor, Signal
[08.1979 - 08.1980] 20R..RT134 |
19181-38210 |
— | ||
|
19220
|
19220
19220-38150 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [09.1978 - 08.1979] 20R..RT134..CND; 20R..RT134..MTM..USA |
19220-38150 |
US $47.47 |
||
|
19220
|
19220
19220-38180 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [09.1978 - 08.1979] 20R..RT134..ATM..USA; 20R..RT134..MTM..USA CALIFORNIA SPEC |
19220-38180 |
US $47.47 |
||
|
19220
|
19220
19220-38210 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1979 - 08.1980] 20R..RT134 |
19220-38210 |
US $90.27 |
||
|
19220A
|
19220A
90099-07109
Ring, Snap(For Governor Weight)
[09.1978 - 12.1981] 20R,22R..RT13# |
90099-07109 |
— | ||
|
19225
|
19225
19225-38011
Cap, Rubber
[09.1978 - 12.1981] 20R,22R..RT13# |
19225-38011 |
— | ||
|
19242
|
19242
19242-26250 Clamp, Cord[09.1978 - 08.1981] 20R,22R..RT13# |
19242-26250 |
US $2.04 |
||
|
19250
|
19250
19250-38150 Generator Assy, SignalSIGNAL [09.1978 - 08.1979] 20R..RT134..USA |
19250-38150 |
US $171.81 |
||
|
19250
|
19250
19250-38210
Generator Assy, Signal
[08.1979 - 08.1981] 20R,22R..RT13# |
19250-38210 |
— | ||
|
9009080507
|
9009080507
90090-80507
New Genuine Part
|
90090-80507 |
— | ||
| replacement | |||||
|
9009080507
|
9009080507
90099-80507
New Genuine Part
|
90099-80507 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900139
|
9009900139
90099-00139
New Genuine Part
|
90099-00139 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9009904566
|
9009904566
90099-04566
New Genuine Part
|
90099-04566 |
— | ||
|
9009904865
|
9009904865
90099-04865
New Genuine Part
|
90099-04865 |
— | ||
|
9011908002
|
9011908002
90119-08002 New Genuine Part |
90119-08002 |
US $3.06 |
||
| replacement | |||||
|
9011908002
|
9011908002
90119-08298 New Genuine Part |
90119-08298 |
US $3.06 |
||
|
9099900710
|
9099900710
90999-00710
New Genuine Part
|
90999-00710 |
— | ||
