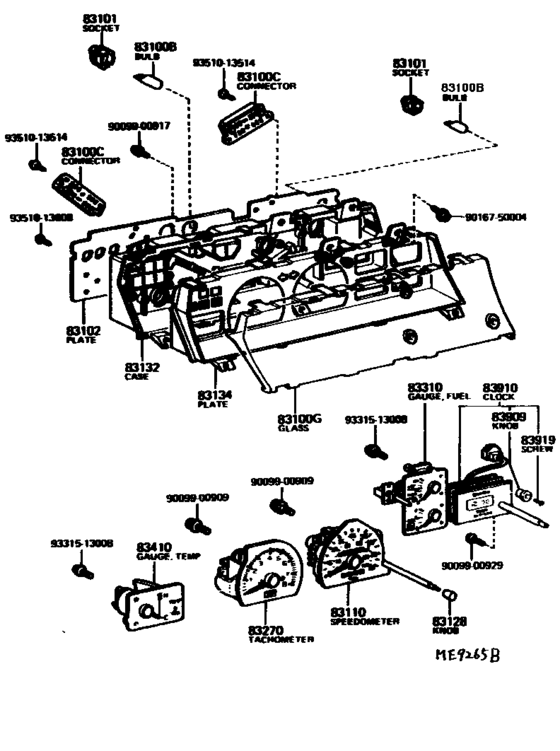

Meter ([08.1980 - ] (8008- )LE) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- LE
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 4FC
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1978 - 12.1981] RT13# 12V 1.2W W/O SOCKET,12V 1.4W |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1978 - 12.1981] RT13# 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1978 - 12.1981] RT13# 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100C
|
83100C
90980-08209
Connector, Combination Meter
[08.1980 - 12.1981] RT135 |
90980-08209 |
— | ||
|
83100G
|
83100G
83138-2B350
Glass, Combination Meter
[08.1980 - 12.1981] RT135..LE |
83138-2B350 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1980 - 12.1981] RT135 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1980 - 12.1981] RT135 12V 1.4W |
83101-14040 |
US $2.93 |
||
|
83102
|
83102
83247-20330
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1980 - 08.1981] RT135..LE |
83247-20330 |
— | ||
|
83102
|
83102
83247-20370
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1981 - 12.1981] RT135..LE..USA |
83247-20370 |
— | ||
|
83110
|
83110
83110-20660 Speedometer Assy[08.1980 - 08.1981] RT135..LE..USA |
83110-20660 |
US $333.42 |
||
|
83110
|
83110
83110-20661
Speedometer Assy
[08.1981 - 12.1981] RT135..LE..USA |
83110-20661 |
— | ||
|
83128
|
83128
83128-10260
Knob, Trip Counter
[08.1980 - 12.1981] RT135 |
83128-10260 |
— | ||
|
83132
|
83132
83132-2B370
Case, Combination Meter
[08.1980 - 08.1981] RT135..LE..USA |
83132-2B370 |
— | ||
|
83132
|
83132
83132-2B390
Case, Combination Meter
[08.1981 - 12.1981] RT135..LE..USA |
83132-2B390 |
— | ||
|
83134
|
83134
83133-20110
Cover, Combination Meter, No.1
[08.1980 - 12.1981] RT135..LE |
83133-20110 |
— | ||
|
83270
|
83270
83242-20110
Tachometer Assy, Engine
[08.1980 - 12.1981] RT135..LE |
83242-20110 |
— | ||
|
83310
|
83310
83243-20230 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1980 - 12.1981] RT135..LE..USA |
83243-20230 |
US $119.39 |
||
|
83410
|
83410
83244-20110
Gage Assy, Water Temperature Receiver
[08.1980 - 12.1981] RT135..LE |
83244-20110 |
— | ||
|
83909
|
83909
83909-12230
Knob, Clock
[08.1980 - 12.1981] RT135..LE |
83909-12230 |
— | ||
|
83910
|
83910
83910-20290
Clock Assy
[08.1980 - 12.1981] RT135..LE |
83910-20290 |
— | ||
|
83919
|
83919
83919-12230 Screw, Clock[08.1980 - 12.1981] RT135..LE |
83919-12230 |
US $1.92 |
||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9016750004
|
9016750004
90167-50004 New Genuine Part |
90167-50004 |
US $1.60 |
||
| replacement | |||||
|
9016750004
|
9016750004
93568-55018 SCREW |
93568-55018 |
from US $0.62 |
||
|
9331513008
|
9331513008
93315-13008 New Genuine Part |
93315-13008 |
US $1.31 |
||
|
9351013008
|
9351013008
93510-13008 New Genuine Part |
93510-13008 |
US $2.18 |
||
|
9351013514
|
9351013514
93510-13514
New Genuine Part
|
93510-13514 |
— | ||
