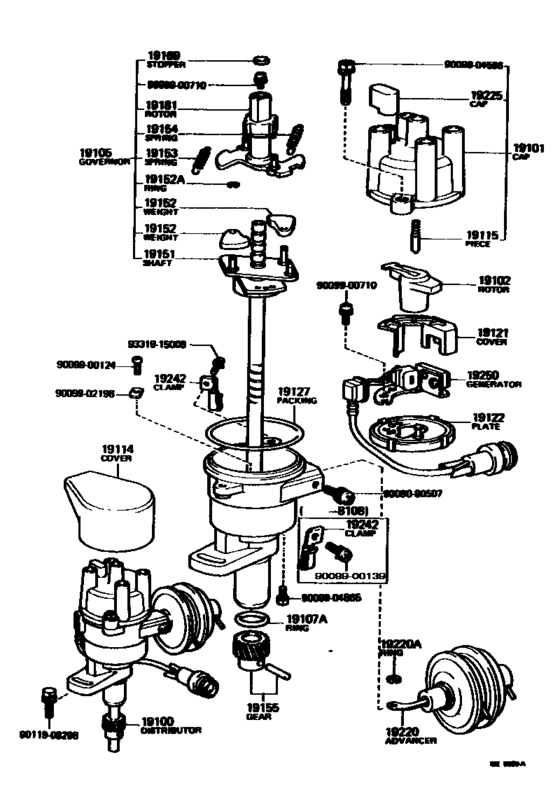

Distributor ([08.1980 - ] (8008- )) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-35030
Distributor Assy
[08.1981 - 12.1981] 22R..RT135 |
19100-35030 |
— | ||
|
19100
|
19100
19100-35040 Distributor Assy[08.1980 - 08.1981] 22R..RT135 |
19100-35040 |
US $1,176.45 |
||
|
19101
|
19101
19101-38210
Cap Sub-Assy, Distributor
[08.1979 - 12.1981] 20R,22R..RT13# |
19101-38210 |
— | ||
|
19102
|
19102
19102-38210 Rotor Sub-Assy, DistributorDISTRIBUTOR [08.1980 - 12.1981] 22R..RT135 |
19102-38210 |
US $15.20 |
||
|
19105
|
19105
19105-35010
Governor Sub-Assy
[08.1980 - 08.1981] 22R..RT135 |
19105-35010 |
— | ||
|
19105
|
19105
19105-35030
Governor Sub-Assy
[08.1981 - 12.1981] 22R..RT135 |
19105-35030 |
— | ||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[09.1978 - 12.1981] 20R,22R..RT13# |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[09.1978 - 12.1981] 20R,22R..RT13# |
90099-14090 |
from US $2.80 |
||
|
19114
|
19114
19114-35010
Cover, Water Proof(For Distributor)
[08.1981 - 12.1981] 22R..RT135..CND; 22R..RT135..USA COLD SPEC |
19114-35010 |
— | ||
| replacement | |||||
|
19114
|
19114
19114-35011
Cover, Water Proof(For Distributor)
[08.1981 - 12.1981] 22R..RT135..CND; 22R..RT135..USA COLD SPEC |
19114-35011 |
— | ||
|
19114
|
19114
19114-38151
Cover, Water Proof(For Distributor)
[08.1979 - 08.1981] 20R,22R..RT13#..CND; 20R,22R..RT13#..USA COLD SPEC |
19114-38151 |
— | ||
| replacement | |||||
|
19114
|
19114
19114-35011
Cover, Water Proof(For Distributor)
[08.1979 - 08.1981] 20R,22R..RT13#..CND; 20R,22R..RT13#..USA COLD SPEC |
19114-35011 |
— | ||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[09.1978 - 12.1981] 20R,22R..RT13# |
19115-50010 |
— | ||
|
19121
|
19121
19121-38210
Cover, Dust Proof
[08.1979 - 12.1981] 20R,22R..RT13# |
19121-38210 |
— | ||
|
19122
|
19122
19122-88262
Plate, Stationary, Distributor
[09.1978 - 12.1981] 20R,22R..RT13# |
19122-88262 |
— | ||
|
19127
|
19127
19127-15021 Packing, Dust Proof[08.1979 - 12.1981] 20R,22R..RT13# |
19127-15021 |
from US $1.40 |
||
|
19151
|
19151
19151-37081 Shaft, Governor[08.1981 - 12.1981] 22R..RT135 |
19151-37081 |
US $62.61 |
||
|
19151
|
19151
19151-38011 Shaft, GovernorGOVERNOR [09.1978 - 08.1981] 20R,22R..RT13# |
19151-38011 |
US $75.71 |
||
|
19152
|
19152
19152-35030 Weight, Governor[08.1981 - 12.1981] 22R..RT135 |
19152-35030 |
US $13.10 |
||
|
19152
|
19152
19152-44170
Weight, Governor
[09.1978 - 08.1981] 20R,22R..RT13# |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[08.1980 - 12.1981] 22R..RT135 |
90099-07109 |
— | ||
|
19153
|
19153
19153-35010 Spring, Governor, AGOVERNOR, A [08.1980 - 08.1981] 22R..RT135 |
19153-35010 |
US $4.95 |
||
|
19153
|
19153
19153-35011 Spring, Governor, AGOVERNOR, A [08.1981 - 12.1981] 22R..RT135 |
19153-35011 |
US $5.24 |
||
|
19154
|
19154
19154-35010
Spring, Governor, B
[08.1980 - 08.1981] 22R..RT135 |
19154-35010 |
— | ||
|
19154
|
19154
19154-35011 Spring, Governor, BGOVERNOR, B [08.1981 - 12.1981] 22R..RT135 |
19154-35011 |
US $5.24 |
||
|
19155
|
19155
19195-38210 Gear, Spiral, Distributor[08.1979 - 12.1981] 20R,22R..RT13# |
19195-38210 |
US $42.37 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[09.1978 - 12.1981] 20R,22R..RT13# |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[09.1978 - 12.1981] 20R,22R..RT13# |
19169-63011 |
— | ||
|
19181
|
19181
19181-27050
Rotor, Distributor, Signal
[08.1980 - 12.1981] 22R..RT135 |
19181-27050 |
— | ||
|
19220
|
19220
19220-35010
Advancer Assy, Vacuum, Distributor
[08.1980 - 12.1981] 22R..RT135 |
19220-35010 |
— | ||
|
19220A
|
19220A
90099-07109
Ring, Snap(For Governor Weight)
[09.1978 - 12.1981] 20R,22R..RT13# |
90099-07109 |
— | ||
|
19225
|
19225
19225-38011
Cap, Rubber
[09.1978 - 12.1981] 20R,22R..RT13# |
19225-38011 |
— | ||
|
19242
|
19242
19242-26250 Clamp, Cord[09.1978 - 08.1981] 20R,22R..RT13# |
19242-26250 |
US $2.04 |
||
|
19242
|
19242
19242-37080 Clamp, Cord[08.1981 - 12.1981] 22R..RT135 |
19242-37080 |
US $5.39 |
||
|
19250
|
19250
19250-37080 Generator Assy, Signal[08.1981 - 12.1981] 22R..RT135 |
19250-37080 |
US $172.97 |
||
|
19250
|
19250
19250-38210
Generator Assy, Signal
[08.1979 - 08.1981] 20R,22R..RT13# |
19250-38210 |
— | ||
|
9009080507
|
9009080507
90090-80507
New Genuine Part
|
90090-80507 |
— | ||
| replacement | |||||
|
9009080507
|
9009080507
90099-80507
New Genuine Part
|
90099-80507 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900139
|
9009900139
90099-00139
New Genuine Part
|
90099-00139 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9009904566
|
9009904566
90099-04566
New Genuine Part
|
90099-04566 |
— | ||
|
9009904865
|
9009904865
90099-04865
New Genuine Part
|
90099-04865 |
— | ||
|
9011908298
|
9011908298
90119-08298 New Genuine Part |
90119-08298 |
US $3.06 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
