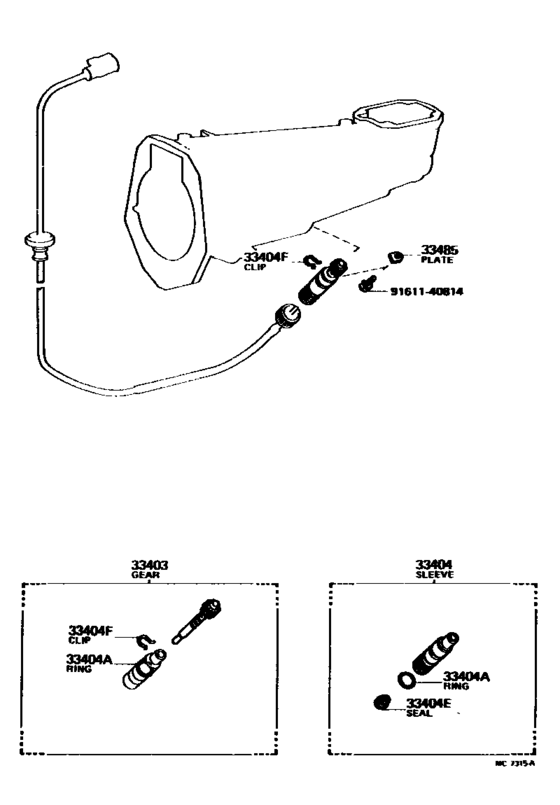

Speedometer Driven Gear (Mtm) ([08.1980 - ] (8008- )5F) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403
|
33403
33403-29105 Gear Sub-Assy, Speedometer Driven (Mtm)SPEEDOMETER DRIVEN (MTM) [08.1980 - 12.1981] RT135..5F N=30,MARK 30:11 |
33403-29105 |
US $25.33 |
||
|
33404
|
33404
33404-22010 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[08.1980 - 12.1981] RT135..5F |
33404-22010 |
from US $18.09 |
||
|
33404A
|
33404A
96710-02030
Ring, O (For Mtm Speedometer Shaft Sleeve)
[08.1980 - 11.1981] RT135..5F |
96710-02030 |
— | ||
| replacement | |||||
|
33404A
|
33404A
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[08.1980 - 11.1981] RT135..5F |
96711-24030 |
from US $2.32 |
||
|
33404A
|
33404A
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[11.1981 - 12.1981] RT135..5F |
96711-24030 |
from US $2.32 |
||
|
33404E
|
33404E
90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[09.1978 - 12.1981] RT13#..MTM |
90310-09001 |
from US $2.56 |
||
|
33404F
|
33404F
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[08.1980 - 12.1981] RT135..5F |
90468-12005 |
US $1.44 |
||
|
33485
|
33485
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[09.1978 - 12.1981] RT13#..MTM |
33485-30020 |
from US $1.68 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
