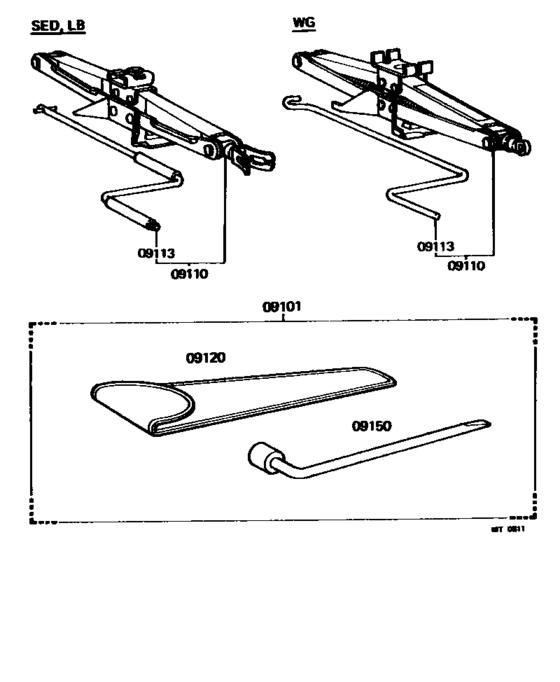

Standard Tool ([09.1978 - ] (7809- )) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09101
|
09101
09101-14070
Tool Set, Standard W/o Jack
[03.1980 - 12.1981] RT13# |
09101-14070 |
— | ||
|
09110
|
09110
09110-20030 Jack Assy[09.1978 - 12.1981] RT13#..LB,SED |
09110-20030 |
US $88.82 |
||
| replacements | |||||
|
09110
|
09110
09111-20101 Jack Assy[09.1978 - 12.1981] RT13#..LB,SED |
09111-20101 |
US $52.42 |
||
|
09110
|
09110
09113-32010
Handle, Jack
[09.1978 - 12.1981] RT13#..LB,SED |
09113-32010 |
— | ||
|
09113
|
09113
09113-20020
Handle, Jack
[09.1978 - 12.1981] RT13#..LB,SED |
09113-20020 |
— | ||
|
09120
|
09120
09120-12030
Bag, Tool
[09.1978 - 12.1981] RT13# |
09120-12030 |
— | ||
| replacement | |||||
|
09120
|
09120
09120-32010
Bag, Tool (Black)
[09.1978 - 12.1981] RT13# |
09120-32010 |
— | ||
|
09150
|
09150
09150-40010 Wrench, Hub Nut Box[03.1980 - 12.1981] RT13# |
09150-40010 |
from US $17.48 |
||
| replacement | |||||
|
09150
|
09150
09033-1C100 WRENCH[03.1980 - 12.1981] RT13# |
09033-1C100 |
from US $15.81 |
||
