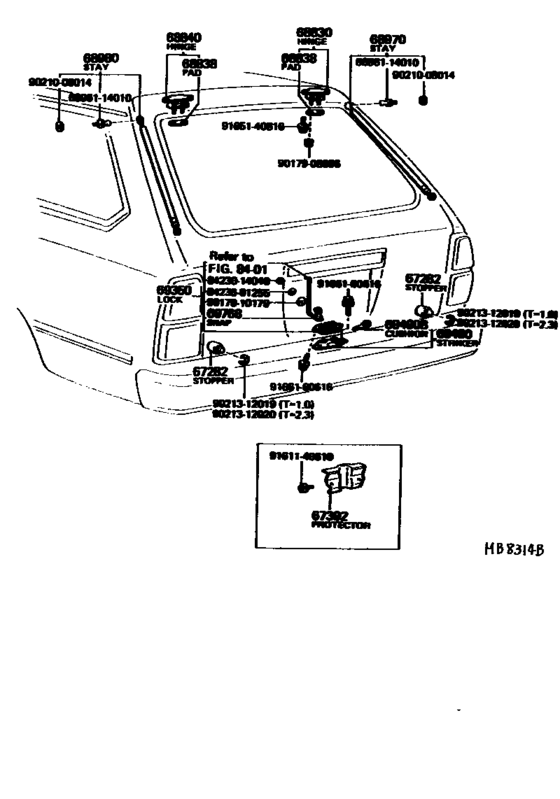

Back Door Lock & Handle ([09.1978 - ] (7809- )WG) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- WG
- ENGINE
- 22R
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 4FC
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67282
|
67282
67281-13030
Stopper, Back Door, Lower
[09.1978 - 12.1981] RT13#..WG |
67281-13030 |
— | ||
|
68830
|
68830
68810-91257
Hinge Assy, Back Door, Rh
[08.1979 - 12.1981] RT13#..WG |
68810-91257 |
— | ||
|
68838
|
68838
68838-14021
Pad, Back Door Hinge
[08.1979 - 12.1981] RT13#..LB,WG |
68838-14021 |
— | ||
| replacement | |||||
|
68838
|
68838
68838-14022
Pad, Back Door Hinge
[08.1979 - 12.1981] RT13#..LB,WG |
68838-14022 |
— | ||
|
68840
|
68840
68810-91257
Hinge Assy, Back Door, Rh
[08.1979 - 12.1981] RT13#..WG |
68810-91257 |
— | ||
|
68970
|
68970
68950-29035 Stay Assy, Back Door, RhBACK DOOR, RH [09.1978 - 12.1981] RT13#..WG |
68950-29035 |
US $151.42 |
||
|
68970
|
68970
68950-29045 Stay Assy, Back Door, RhBACK DOOR, RH [09.1978 - 12.1981] RT13#..WG W/RR WIPER |
68950-29045 |
US $142.69 |
||
|
68980
|
68980
68950-29035 Stay Assy, Back Door, RhBACK DOOR, RH [09.1978 - 12.1981] RT13#..WG |
68950-29035 |
US $151.42 |
||
|
68980
|
68980
68950-29045 Stay Assy, Back Door, RhBACK DOOR, RH [09.1978 - 12.1981] RT13#..WG W/RR WIPER |
68950-29045 |
US $142.69 |
||
|
69350
|
69350
69350-91259 Lock Assy, Back DoorBACK DOOR [08.1979 - 12.1981] RT13#..WG |
69350-91259 |
US $90.27 |
||
|
69490
|
69490
69430-91701 Striker Assy, Back Door LockBACK DOOR LOCK [05.1980 - 12.1981] RT13#..WG |
69430-91701 |
US $31.45 |
||
|
69490B
|
69490B
90541-06002
Cushion(For Back Door Lock Striker)
[09.1978 - 12.1981] RT13#..WG |
90541-06002 |
— | ||
| replacement | |||||
|
69490B
|
69490B
90541-06019 Cushion(For Back Door Lock Striker)[09.1978 - 12.1981] RT13#..WG |
90541-06019 |
US $2.88 |
||
|
69768
|
69768
69377-30020
Snap, Door Lock Control Rod
[09.1978 - 12.1981] RT13#..WG |
69377-30020 |
— | ||
|
6896114010
|
6896114010
68961-14010
Bolt, Hood Support, No.1
|
68961-14010 |
— | ||
| replacement | |||||
|
6896114010
|
6896114010
68961-12010
Bolt, Hood Support, No.1
|
68961-12010 |
— | ||
|
8423014040
|
8423014040
84230-14040
Switch Assy, Courtesy Lamp(For Back Door)
|
84230-14040 |
— | ||
|
8423691255
|
8423691255
84236-91255
Switch Assy, Courtesy Lamp(for Luggage Compartment Room)
|
84236-91255 |
— | ||
|
9017010179
|
9017010179
90170-10179 New Genuine Part |
90170-10179 |
US $1.60 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.46 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
|
9021008014
|
9021008014
90210-08014 New Genuine Part |
90210-08014 |
US $4.66 |
||
|
9021312019
|
9021312019
90213-12019 Plate, Back Door Lower Stopper |
90213-12019 |
US $2.04 |
||
|
9021312020
|
9021312020
90213-12020 Plate, Back Door Lower Stopper |
90213-12020 |
US $1.89 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9166160616
|
9166160616
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
