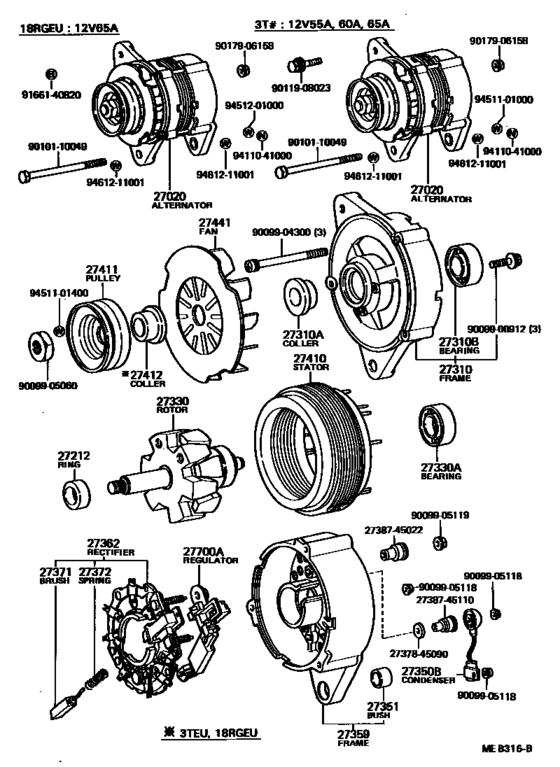

Alternator ([01.1982 - 08.1985] (8201-8508)18RGEU,3T#) Diagram Toyota CORONA
- Year
- 1982 - 1982
- Sales region
- Japan
- Frame
- RT141
- grade
- GT
- body
- SED
- ENGINE
- 18RGEU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-34040 Alternator Assy[01.1982 - 10.1982] 18RGEU..RT141 １２Ｖ ６５Ａ |
27060-34040 |
US $1,543.36 |
||
|
27212
|
27212
27412-45070
Ring, Space(For Alternator Rotor)
[01.1982 - 04.1986] 12TJ,18RGEU,3AU,1SU,3T#..AT140,RT141,ST140,TT14# 12V 55A,60A,65A |
27412-45070 |
— | ||
|
27310
|
27310
27310-38061
Frame Assy, Drive End, Alternator
[01.1982 - 08.1985] 18RGEU,3T#..RT141,TT142 12V 55A,60A,65A |
27310-38061 |
— | ||
|
27310A
|
27310A
27412-31040
Collar Or Nut(For Alternator Drive End Frame)
[01.1982 - 06.1983] 12TJ,18RGEU,3AU,1SU,3T#,2YPU..AT140,RT141,ST140,TT14#,YT140 12V 55A,60A,65A |
27412-31040 |
— | ||
|
27310B
|
27310B
90099-10125 Bearing(For Alternator Drive End Frame)[01.1982 - 06.1983] 12TJ,18RGEU,1SU,3T#,2YPU..RT141,ST140,TT14#,YT140 12V 55A,60A,65A |
90099-10125 |
US $9.61 |
||
|
27330
|
27330
27330-43040
Rotor Assy, Alternator
[01.1982 - 02.1989] 3TEU..TT142..4FC 12V 55A,60A,65A; 18RGEU,2YPU..RT141,YT140 12V 55A,60A,65A |
27330-43040 |
— | ||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[01.1982 - 02.1989] 12TJ,18RGEU,3AU,5KJ,1SU,3T#,2YPU..AT140,KT147,RT141,ST140,TT14#,YT140 12V 45A,55A,60A,65A |
90099-10116 |
— | ||
|
27350B
|
27350B
90099-52065 Condenser, Alternator[01.1982 - 02.1989] 12TJ,18RGEU,3AU,5KJ,1SU,3T#,2YPU..AT140,KT147,RT141,ST140,TT14#,YT140 12V 45A,55A,60A,65A |
90099-52065 |
US $3.45 |
||
| replacement | |||||
|
27350B
|
27350B
90099-52034
Condenser, Alternator
[01.1982 - 02.1989] 12TJ,18RGEU,3AU,5KJ,1SU,3T#,2YPU..AT140,KT147,RT141,ST140,TT14#,YT140 12V 45A,55A,60A,65A |
90099-52034 |
— | ||
|
27351
|
27351
27351-38051
Bush(For Alternator Rectifier End Frame)
[01.1982 - 02.1989] 12TJ,18RGEU,3AU,5KJ,1SU,3T#,2YPU..AT140,KT147,RT141,ST140,TT14#,YT140 12V 45A,55A,60A,65A |
27351-38051 |
— | ||
|
27359
|
27359
27359-28030
Frame, Alternator Rectifier End
[01.1982 - 08.1985] 18RGEU,3T#..RT141,TT142 12V 55A,60A,65A |
27359-28030 |
— | ||
|
27362
|
27362
27362-43040
Rectifier Assy, W/brush
[01.1982 - 10.1983] 18RGEU..RT141;3TEU..TT142..4FC 12V 60A,65A |
27362-43040 |
— | ||
|
27371
|
27371
27371-31011 Brush, Alternator[01.1982 - 12.1987] 12TJ,18RGEU,3AU,5KJ,1SU,3T#..AT140,KT147,RT141,ST140,TT14# 12V 45A,55A,60A,65A |
27371-31011 |
from US $2.80 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[01.1982 - 12.1987] 12TJ,18RGEU,3AU,5KJ,1SU,3T#..AT140,KT147,RT141,ST140,TT14# 12V 45A,55A,60A,65A |
27372-31011 |
— | ||
|
27410
|
27410
27410-43040
Stator Assy, Alternator
[01.1982 - 12.1987] 3TEU..TT142..4FC;18RGEU,3AU,1SU..AT140,RT141,ST140 12V 55A,60A,65A |
27410-43040 |
— | ||
|
27411
|
27411
27411-26111
Pulley, Alternator
[01.1982 - 12.1987] 18RGEU,3AU..AT140,RT141 12V 55A,65A |
27411-26111 |
— | ||
|
27412
|
27412
27412-44031
Collar, Spacer(For Alternator Pulley)
[01.1982 - 10.1983] 18RGEU,3TEU..RT141,TT142 12V 50A,60A,65A |
27412-44031 |
— | ||
|
27441
|
27441
27441-34111
Fan, Alternator
[01.1982 - 10.1982] 3TEU..TT142..4FC;18RGEU,2YPU..RT141,YT140 12V 55A,60A,65A |
27441-34111 |
— | ||
|
27700A
|
27700A
27700-43010 Regulator Assy, Generator[01.1982 - 08.1985] 18RGEU,3T#..RT141,TT142 12V 55A,60A,65A |
27700-43010 |
US $264.99 |
||
|
2737845090
|
2737845090
27378-45090
Insulator, Alternator, No.1
|
27378-45090 |
— | ||
|
2738745022
|
2738745022
27387-45022
Insulator, Terminal
|
27387-45022 |
— | ||
|
2738745110
|
2738745110
27387-45110
Insulator, Terminal
|
27387-45110 |
— | ||
|
9009900912
|
9009900912
90099-00912
New Genuine Part
|
90099-00912 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9010110049
|
9010110049
90101-10049
Bolt, Hexagon(For Air Pump Bracket Setting)
|
90101-10049 |
— | ||
| replacement | |||||
|
9010110049
|
9010110049
90105-10221 Bolt, Hexagon(For Air Pump Bracket Setting) |
90105-10221 |
from US $3.22 |
||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9166140820
|
9166140820
91661-40820 New Genuine Part |
91661-40820 |
from US $1.66 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
