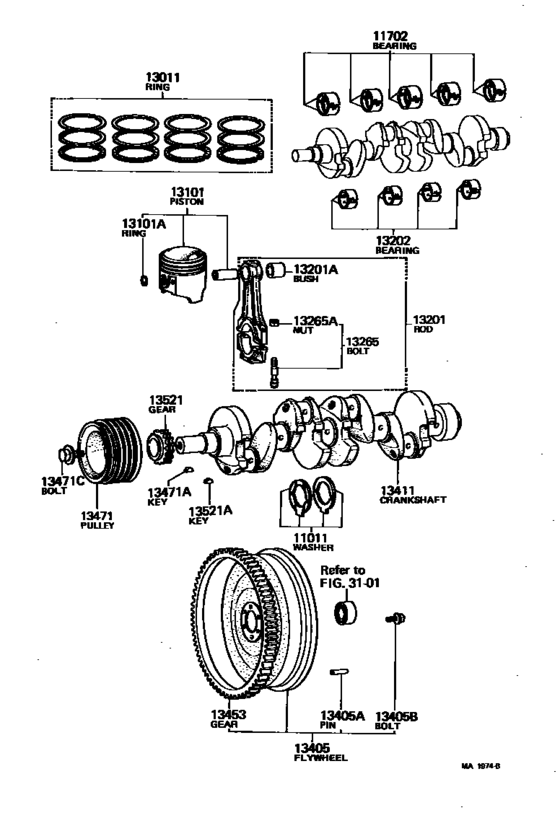

Crankshaft & Piston ([01.1982 - 10.1982] (8201-8210)18RGEU) Diagram Toyota CORONA
- Year
- 1982 - 1982
- Sales region
- Japan
- Frame
- RT141
- grade
- GT
- body
- SED
- ENGINE
- 18RGEU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-38010 Washer Set, Crankshaft Thrust[01.1982 - 10.1982] 18RGEU..RT141 ＳＴＤ,STD |
11011-38010 |
US $49.65 |
||
| replacement | |||||
|
11011
|
11011
11011-35011 Washer Set, Crankshaft Thrust[01.1982 - 10.1982] 18RGEU..RT141 ＳＴＤ,STD |
11011-35011 |
US $45.95 |
||
|
11011
|
11011
11012-38010 Washer Set, Crankshaft Thrust[01.1982 - 10.1982] 18RGEU..RT141 Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-38010 |
US $57.66 |
||
| replacement | |||||
|
11011
|
11011
11012-35021 Washer Set, Crankshaft Thrust[01.1982 - 10.1982] 18RGEU..RT141 Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-35021 |
US $55.04 |
||
|
11011
|
11011
11013-38010
Washer Set, Crankshaft Thrust
[01.1982 - 10.1982] 18RGEU..RT141 Ｏ／Ｓ ０．２５０,O/S 0.250 |
11013-38010 |
— | ||
| replacement | |||||
|
11011
|
11011
11013-35021 Washer Set, Crankshaft Thrust[01.1982 - 10.1982] 18RGEU..RT141 Ｏ／Ｓ ０．２５０,O/S 0.250 |
11013-35021 |
US $55.04 |
||
|
11702
|
11702
11702-88270 Bearing Set, Crankshaft[01.1982 - 10.1982] 18RGEU..RT141 STD |
11702-88270 |
US $310.13 |
||
|
11702
|
11702
11703-88270
Bearing Set, Crankshaft
[01.1982 - 10.1982] 18RGEU..RT141 U/S 0.05 |
11703-88270 |
— | ||
|
11702
|
11702
11704-88270 Bearing Set, Crankshaft[01.1982 - 10.1982] 18RGEU..RT141 U/S 0.25 |
11704-88270 |
US $310.13 |
||
|
13011
|
13011
13011-88270 Ring Set, Piston[01.1982 - 10.1982] 18RGEU..RT141 STD |
13011-88270 |
US $241.70 |
||
|
13011
|
13011
13013-88270 Ring Set, Piston[01.1982 - 10.1982] 18RGEU..RT141 O/S 0.50 |
13013-88270 |
US $216.94 |
||
|
13011
|
13011
13015-88270 Ring Set, Piston[01.1982 - 10.1982] 18RGEU..RT141 O/S 1.00 |
13015-88270 |
US $216.94 |
||
|
13101
|
13101
13101-88270 Piston Sub-Assy, W/pin[01.1982 - 10.1982] 18RGEU..RT141 STD |
13101-88270 |
US $173.26 |
||
|
13101
|
13101
13103-88270 Piston Sub-Assy, W/pin[01.1982 - 10.1982] 18RGEU..RT141 O/S 0.50 |
13103-88270 |
US $161.62 |
||
|
13101
|
13101
13105-88270 Piston Sub-Assy, W/pin[01.1982 - 10.1982] 18RGEU..RT141 O/S 1.00 |
13105-88270 |
US $161.62 |
||
|
13101A
|
13101A
90072-52104 Ring, Hole Snap(For Piston Pin)[01.1982 - 10.1982] 18RGEU..RT141 |
90072-52104 |
US $2.04 |
||
| replacement | |||||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[01.1982 - 10.1982] 18RGEU..RT141 |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-37011 Rod Sub-Assy, Connecting[01.1982 - 10.1982] 18RGEU..RT141 |
13201-37011 |
US $240.24 |
||
| replacement | |||||
|
13201
|
13201
13201-34012 Rod Sub-Assy, Connecting[01.1982 - 10.1982] 18RGEU..RT141 |
13201-34012 |
US $136.86 |
||
|
13201A
|
13201A
90999-73072 Bush(For Connecting Rod Small End)[01.1982 - 10.1982] 18RGEU..RT141 |
90999-73072 |
from US $9.28 |
||
|
13202
|
13202
13202-33011 Bearing Set, Connecting Rod[01.1982 - 10.1982] 18RGEU..RT141 STD |
13202-33011 |
US $144.14 |
||
| replacement | |||||
|
13202
|
13202
13041-35030-B0 Bearing Set, Connecting RodCONNECTING ROD [01.1982 - 10.1982] 18RGEU..RT141 STD |
13041-35030-B0 |
US $33.20 |
||
|
13202
|
13202
13204-33011 Bearing Set, Connecting Rod[01.1982 - 10.1982] 18RGEU..RT141 U/S 0.25 |
13204-33011 |
US $184.91 |
||
| replacement | |||||
|
13202
|
13202
13204-35040 Bearing Set, Connecting Rod[01.1982 - 10.1982] 18RGEU..RT141 U/S 0.25 |
13204-35040 |
from US $89.45 |
||
|
13265
|
13265
13265-39035 Bolt, Connecting Rod[01.1982 - 10.1982] 18RGEU..RT141 |
13265-39035 |
US $11.94 |
||
| replacement | |||||
|
13265
|
13265
13265-39025 Bolt, Connecting Rod[01.1982 - 10.1982] 18RGEU..RT141 |
13265-39025 |
from US $5.19 |
||
|
13265A
|
13265A
90170-10198 Nut, Hexagon(For Connecting Rod Bolt)[01.1982 - 10.1982] 18RGEU..RT141 |
90170-10198 |
US $2.62 |
||
|
13405
|
13405
13405-39037
Flywheel Sub-Assy
[01.1982 - 10.1982] 18RGEU..RT141 |
13405-39037 |
— | ||
|
13405A
|
13405A
90250-08054 Pin, Straight[01.1982 - 04.1998] 18RGEU..RT141 長さ＝２３，外径＝８; 1C,2C..CT14#..5F 長さ＝２３，外径＝８; 2YPU..YT140..MTM 長さ＝２３，外径＝８; 1SU..ST140..MTM 長さ＝２３，外径＝８; 12TJ,3T#..TT14#..MTM 長さ＝２３，外径＝８ |
90250-08054 |
from US $0.99 |
||
|
13405B
|
13405B
90105-10030 Bolt, Flywheel Setting[01.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142..5F |
90105-10030 |
US $6.08 |
||
|
13411
|
13411
13411-34906
Crankshaft
[01.1982 - 10.1982] 18RGEU..RT141 |
13411-34906 |
— | ||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[01.1982 - 04.1998] 18RGEU..RT141; 2YPU..YT140..MTM; 1SU..ST140..MTM; 12TJ,3T#..TT14#..MTM |
13453-20010 |
US $67.79 |
||
|
13471
|
13471
13407-88270 Pulley, Crankshaft[01.1982 - 10.1982] 18RGEU..RT141 |
13407-88270 |
US $471.74 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[01.1982 - 09.1986] 5KJ..KT147; 18RGEU..RT141; 2YPU..YT140; 12TJ,3T#..TT14# |
90280-05010 |
US $4.16 |
||
|
13471C
|
13471C
90105-14048
Bolt(For Crankshaft Pulley Set)
[01.1982 - 10.1982] 18RGEU..RT141 |
90105-14048 |
— | ||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[01.1982 - 04.1998] 18RGEU..RT141; 2YPU..YT140; 12TJ,3T#..TT14# |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[01.1982 - 09.1986] 5KJ..KT147; 18RGEU..RT141; 2YPU..YT140; 3AU,4AGEU..AT14#; 12TJ,3T#..TT14# |
90280-05010 |
US $4.16 |
||
