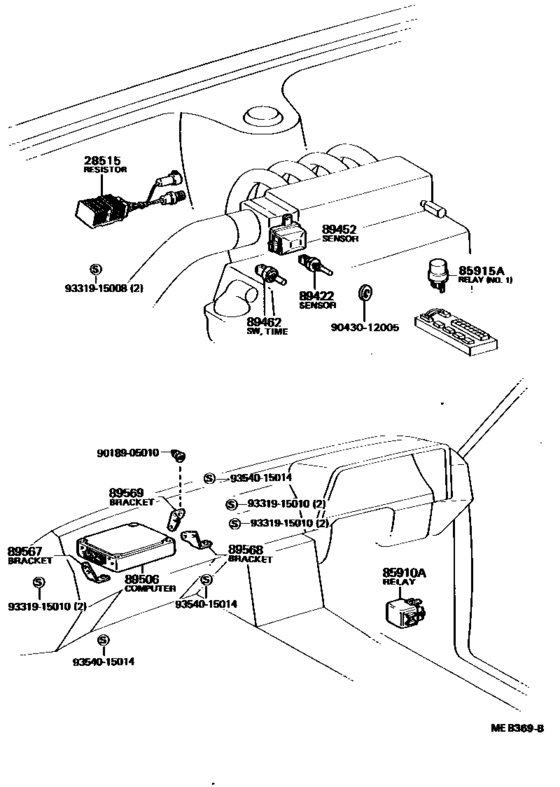

Electronic Fuel Injection System ([01.1982 - 10.1983] (8201-8310)GT,SX) Diagram Toyota CORONA
- Year
- 1982 - 1982
- Sales region
- Japan
- Frame
- RT141
- grade
- GT
- body
- SED
- ENGINE
- 18RGEU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515
|
28515
28515-26040
Resistor, Solenoid
[01.1982 - 10.1983] 18RGEU,3TEU..RT141,TT142 |
28515-26040 |
— | ||
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[01.1982 - 08.1985] AT141,RT141,TT142 |
85910-30050 |
US $84.36 |
||
|
85915A
|
85915A
90987-02004 Relay Assy, Starter[01.1982 - 08.1985] AT141,RT141,TT142 NO.1 |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
85915A
|
85915A
909870200483 [01.1982 - 08.1985] AT141,RT141,TT142 NO.1 |
909870200483 |
US $53.75 |
||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[01.1982 - 08.1985] AT141,RT141,TT142 |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[01.1982 - 08.1985] AT141,RT141,TT142 |
89422-12010 |
from US $61.10 |
||
|
89452
|
89452
89452-14010 Sensor, Throttle Position (For E.f.i.)[01.1982 - 10.1982] RT141 |
89452-14010 |
US $180.54 |
||
|
89462
|
89462
89462-30011 Switch, Start Injector Time[01.1982 - 05.1983] RT141,TT142 |
89462-30011 |
US $139.12 |
||
|
89506
|
89506
89561-14022 Computer Set, Fuel Injection[01.1982 - 10.1982] RT141 |
89561-14022 |
US $857.58 |
||
|
89567
|
89567
89567-14060
Bracket, Fuel Injection Computer
[01.1982 - 08.1985] AT141,RT141,TT142..SED..(GT,SX) |
89567-14060 |
— | ||
|
89568
|
89568
89568-14050
Bracket, Fuel Injection Computer
[01.1982 - 10.1982] RT141,TT142..SED |
89568-14050 |
— | ||
|
89569
|
89569
89569-14050
Bracket, Fuel Injection Computer
[01.1982 - 10.1982] RT141,TT142..SED |
89569-14050 |
— | ||
|
9018905010
|
9018905010
90189-05010 GROMMET |
90189-05010 |
US $2.08 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.90 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9354015014
|
9354015014
93540-15014 New Genuine Part |
93540-15014 |
from US $1.76 |
||
