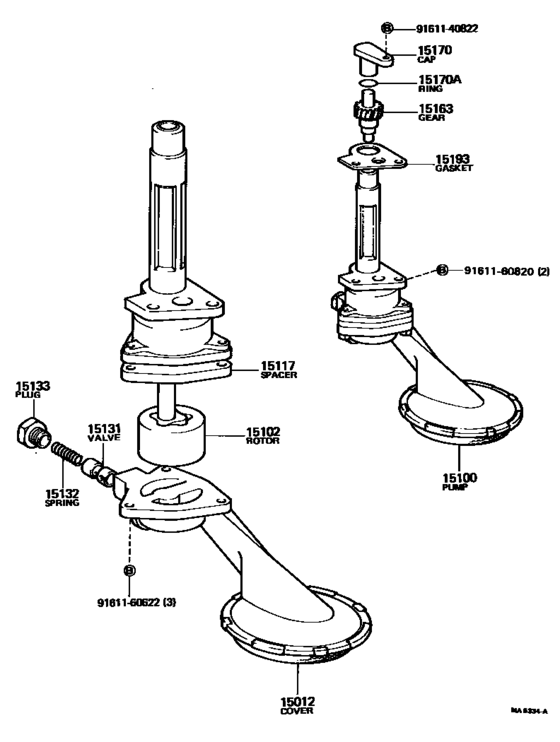

Engine Oil Pump ([01.1982 - 10.1982] (8201-8210)18RGEU) Diagram Toyota CORONA
- Year
- 1982 - 1982
- Sales region
- Japan
- Frame
- RT141
- grade
- GT
- body
- SED
- ENGINE
- 18RGEU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15012
|
15012
15012-88271
Cover Sub-Assy, Oil Pump
[01.1982 - 10.1982] 18RGEU..RT141 |
15012-88271 |
— | ||
|
15100
|
15100
15100-88271
Pump Assy, Oil
[01.1982 - 10.1982] 18RGEU..RT141 |
15100-88271 |
— | ||
|
15102
|
15102
15102-88212
Rotor Set, Oil Pump
[01.1982 - 10.1982] 18RGEU..RT141 |
15102-88212 |
— | ||
|
15117
|
15117
15116-88211
Spacer, Oil Pump Body
[01.1982 - 10.1982] 18RGEU..RT141 |
15116-88211 |
— | ||
|
15131
|
15131
15131-41010
Valve, Oil Pump Relief
[01.1982 - 10.1982] 18RGEU..RT141 |
15131-41010 |
— | ||
|
15132
|
15132
15132-40010 Spring, Oil Pump Relief Valve[01.1982 - 04.1998] 5KJ..KT147 AISIN; 18RGEU..RT141 AISIN; 1SU..ST140 AISIN; 2YPU..YT140 AISIN; 3AU,4AGEU..AT14# AISIN; 12TJ,3T#..TT14# AISIN |
15132-40010 |
from US $2.65 |
||
|
15133
|
15133
15133-88211
Plug, Oil Pump Relief Valve
[01.1982 - 10.1982] 18RGEU..RT141 |
15133-88211 |
— | ||
|
15163
|
15163
15163-88210
Gear, Oil Pump Drive Shaft
[01.1982 - 10.1982] 18RGEU..RT141 |
15163-88210 |
— | ||
|
15170
|
15170
15171-88210
Cap, Oil Pump Drive Shaft
[01.1982 - 10.1982] 18RGEU..RT141 |
15171-88210 |
— | ||
|
15170A
|
15170A
90072-30111
Ring, O, Oil Pump Drive Shaft
[01.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142 |
90072-30111 |
— | ||
|
15193
|
15193
15193-33011
Gasket, Oil Pump
[01.1982 - 10.1982] 18RGEU..RT141 |
15193-33011 |
— | ||
|
9161140822
|
9161140822
91611-40822
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40822 |
— | ||
| replacement | |||||
|
9161140822
|
9161140822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9161160622
|
9161160622
91611-60622 Bolt, W/washer (For Transmission Oil Pump Cover) |
91611-60622 |
US $2.62 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
