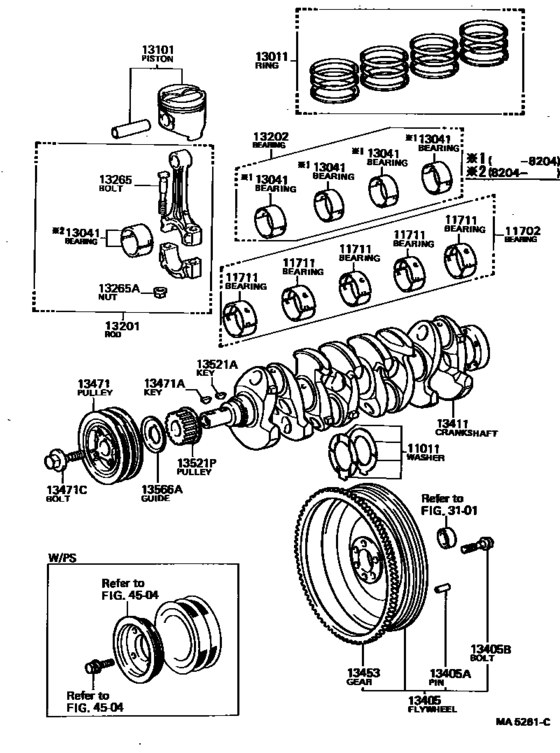

Crankshaft & Piston ([01.1982 - 12.1987] (8201-8712)1SU) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- ST140
- grade
- GX
- body
- HT
- ENGINE
- 1SU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[01.1982 - 04.1998] 1SU..ST140 ＳＴＤ,STD; 2YPU..YT140 ＳＴＤ,STD; 12TJ,3T#..TT14# ＳＴＤ,STD |
11011-25010 |
from US $20.67 |
||
|
11711
|
11711
11701-63020-01 Bearing, Crankshaft[01.1982 - 07.1985] 1SU..ST140 NO.3 MARK"1",MARK 1 |
11701-63020-01 |
US $44.99 |
||
| replacement | |||||
|
11711
|
11711
11071-63021-01
Bearing, Crankshaft
[01.1982 - 07.1985] 1SU..ST140 NO.3 MARK"1",MARK 1 |
11071-63021-01 |
— | ||
|
11711
|
11711
11701-63020-02 Bearing, Crankshaft[01.1982 - 07.1985] 1SU..ST140 NO.3 MARK"2",MARK 2 |
11701-63020-02 |
US $44.99 |
||
| replacement | |||||
|
11711
|
11711
11071-63021-02
Bearing, Crankshaft
[01.1982 - 07.1985] 1SU..ST140 NO.3 MARK"2",MARK 2 |
11071-63021-02 |
— | ||
|
11711
|
11711
11701-63020-03 Bearing, Crankshaft[01.1982 - 07.1985] 1SU..ST140 NO.3 MARK"3",MARK 3 |
11701-63020-03 |
US $44.99 |
||
| replacement | |||||
|
11711
|
11711
11071-63021-03 Bearing, Crankshaft[01.1982 - 07.1985] 1SU..ST140 NO.3 MARK"3",MARK 3 |
11071-63021-03 |
US $53.14 |
||
|
11711
|
11711
11701-70012-01 Bearing, Crankshaft[01.1982 - 07.1985] 1SU..ST140 NO.1,2,4,5 MARK"1",MARK 1 |
11701-70012-01 |
US $42.66 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-01 Bearing, Crankshaft[01.1982 - 07.1985] 1SU..ST140 NO.1,2,4,5 MARK"1",MARK 1 |
11701-63022-01 |
from US $22.72 |
||
|
11711
|
11711
11701-70012-02 Bearing, Crankshaft[01.1982 - 07.1985] 1SU..ST140 NO.1,2,4,5 MARK"2",MARK 2 |
11701-70012-02 |
US $42.66 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-02 Bearing, Crankshaft[01.1982 - 07.1985] 1SU..ST140 NO.1,2,4,5 MARK"2",MARK 2 |
11701-63022-02 |
from US $22.72 |
||
|
11711
|
11711
11701-70012-03 Bearing, Crankshaft[01.1982 - 07.1985] 1SU..ST140 NO.1,2,4,5 MARK"3",MARK 3 |
11701-70012-03 |
US $42.66 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-03 Bearing, Crankshaft[01.1982 - 07.1985] 1SU..ST140 NO.1,2,4,5 MARK"3",MARK 3 |
11701-63022-03 |
US $48.40 |
||
|
13011
|
13011
13011-63010 Ring Set, Piston[01.1982 - 07.1987] 1SU..ST140 ＳＴＤ,STD |
13011-63010 |
US $182 |
||
| replacement | |||||
|
13011
|
13011
13011-63012 Ring Set, Piston[01.1982 - 07.1987] 1SU..ST140 ＳＴＤ,STD |
13011-63012 |
US $180.54 |
||
|
13011
|
13011
13013-63010
Ring Set, Piston
[01.1982 - 12.1987] 1SU..ST140 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-63010 |
— | ||
| replacement | |||||
|
13011
|
13011
13013-63012
Ring Set, Piston
[01.1982 - 12.1987] 1SU..ST140 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-63012 |
— | ||
|
13011
|
13011
13014-63010 Ring Set, Piston[01.1982 - 12.1987] 1SU..ST140 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-63010 |
US $182 |
||
| replacement | |||||
|
13011
|
13011
13014-63012 Ring Set, Piston[01.1982 - 12.1987] 1SU..ST140 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-63012 |
US $219.86 |
||
|
13011
|
13011
13015-63010 Ring Set, Piston[01.1982 - 12.1987] 1SU..ST140 Ｏ／Ｓ １．００,O/S 1.00 |
13015-63010 |
US $182 |
||
| replacement | |||||
|
13011
|
13011
13015-63012 Ring Set, Piston[01.1982 - 12.1987] 1SU..ST140 Ｏ／Ｓ １．００,O/S 1.00 |
13015-63012 |
US $219.86 |
||
|
13041
|
13041
13041-63020-01 Bearing, Connecting Rod[01.1982 - 12.1987] 1SU..ST140 MARK"1",MARK 1 |
13041-63020-01 |
US $15.38 |
||
|
13041
|
13041
13041-63020-02 Bearing, Connecting Rod[01.1982 - 12.1987] 1SU..ST140 MARK"2",MARK 2 |
13041-63020-02 |
US $15.87 |
||
|
13041
|
13041
13041-63020-03 Bearing, Connecting Rod[01.1982 - 12.1987] 1SU..ST140 MARK"3",MARK 3 |
13041-63020-03 |
US $15.87 |
||
|
13101
|
13101
13101-63010 Piston Sub-Assy, W/pin[01.1982 - 07.1986] 1SU..ST140 STD |
13101-63010 |
US $107.74 |
||
|
13101
|
13101
13103-63010
Piston Sub-Assy, W/pin
[01.1982 - 07.1986] 1SU..ST140 O/S 0.50 |
13103-63010 |
— | ||
|
13101
|
13101
13104-63010 Piston Sub-Assy, W/pin[01.1982 - 07.1986] 1SU..ST140 O/S 0.75 |
13104-63010 |
US $107.74 |
||
|
13101
|
13101
13105-63010 Piston Sub-Assy, W/pin[01.1982 - 07.1986] 1SU..ST140 O/S 1.00 |
13105-63010 |
US $107.74 |
||
|
13201
|
13201
13201-69015 Rod Sub-Assy, Connecting[01.1982 - 05.1984] 1SU..ST140 |
13201-69015 |
US $180.54 |
||
| replacement | |||||
|
13201
|
13201
13201-69055
Rod Sub-Assy, Connecting
[01.1982 - 05.1984] 1SU..ST140 |
13201-69055 |
— | ||
|
13202
|
13202
13204-63020 Bearing Set, Connecting Rod[01.1982 - 12.1987] 1SU..ST140 Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-63020 |
from US $64.14 |
||
|
13265
|
13265
13265-63010
Bolt, Connecting Rod
[01.1982 - 12.1987] 1SU..ST140 |
13265-63010 |
— | ||
|
13265A
|
13265A
90179-09001
Nut, Hexagon(For Connecting Rod Bolt)
[01.1982 - 12.1987] 1SU..ST140 |
90179-09001 |
— | ||
|
13405
|
13405
13405-69035 Flywheel Sub-Assy[01.1982 - 02.1982] 1SU..ST140..MTM |
13405-69035 |
US $362.54 |
||
| replacement | |||||
|
13405
|
13405
13405-63010 Flywheel Sub-Assy[01.1982 - 02.1982] 1SU..ST140..MTM |
13405-63010 |
US $308.67 |
||
|
13405
|
13405
13405-69036 Flywheel Sub-Assy[02.1982 - 12.1987] 1SU..ST140..MTM |
13405-69036 |
US $329.06 |
||
| replacement | |||||
|
13405
|
13405
13405-63010 Flywheel Sub-Assy[02.1982 - 12.1987] 1SU..ST140..MTM |
13405-63010 |
US $308.67 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[01.1982 - 04.1998] 18RGEU..RT141 長さ＝２３，外径＝８; 1C,2C..CT14#..5F 長さ＝２３，外径＝８; 2YPU..YT140..MTM 長さ＝２３，外径＝８; 1SU..ST140..MTM 長さ＝２３，外径＝８; 12TJ,3T#..TT14#..MTM 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.92 |
||
|
13405B
|
13405B
90105-10045 Bolt, Flywheel Setting[02.1982 - 11.1991] 1C,2C..CT14#..5F; 1SU..ST140..MTM |
90105-10045 |
US $5.12 |
||
|
13405B
|
13405B
90105-10056
Bolt, Flywheel Setting
[01.1982 - 02.1982] 1C..CT14#..5F; 1SU..ST140..MTM |
90105-10056 |
— | ||
| replacement | |||||
|
13405B
|
13405B
90105-10045 Bolt, Flywheel Setting[01.1982 - 02.1982] 1C..CT14#..5F; 1SU..ST140..MTM |
90105-10045 |
US $5.12 |
||
|
13411
|
13411
13411-63010 Crankshaft[01.1982 - 12.1987] 1SU..ST140 |
13411-63010 |
US $1,201.20 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[01.1982 - 04.1998] 18RGEU..RT141; 2YPU..YT140..MTM; 1SU..ST140..MTM; 12TJ,3T#..TT14#..MTM |
13453-20010 |
US $67.79 |
||
|
13471
|
13471
13408-63010 Pulley, Crankshaft[01.1982 - 12.1982] 1SU..ST140 |
13408-63010 |
US $165.98 |
||
| replacement | |||||
|
13471
|
13471
13408-63011 Pulley, Crankshaft[01.1982 - 12.1982] 1SU..ST140 |
13408-63011 |
US $170.35 |
||
|
13471
|
13471
13408-63011 Pulley, Crankshaft[12.1982 - 12.1987] 1SU..ST140 |
13408-63011 |
US $170.35 |
||
|
13471A
|
13471A
95161-10519 Key(For Oil Pump Drive Spline)[01.1982 - 12.1987] 1SU..ST140 |
95161-10519 |
from US $1.85 |
||
|
13471C
|
13471C
90105-14011 Bolt(For Crankshaft Pulley Set)[01.1982 - 06.1985] 1SU..ST140 |
90105-14011 |
US $15.72 |
||
|
13471C
|
13471C
90119-14015 Bolt(For Crankshaft Pulley Set)[06.1985 - 12.1987] 1SU..ST140 |
90119-14015 |
from US $7.53 |
||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[01.1982 - 12.1987] 1SU..ST140 |
95161-10519 |
from US $1.85 |
||
|
13521P
|
13521P
13521-63010 Pulley, Crankshaft Timing[01.1982 - 12.1987] 1SU..ST140 |
13521-63010 |
US $29.99 |
||
|
13566A
|
13566A
13567-63010 Guide, Timing Belt[01.1982 - 12.1987] 1SU..ST140 |
13567-63010 |
US $11.65 |
||
