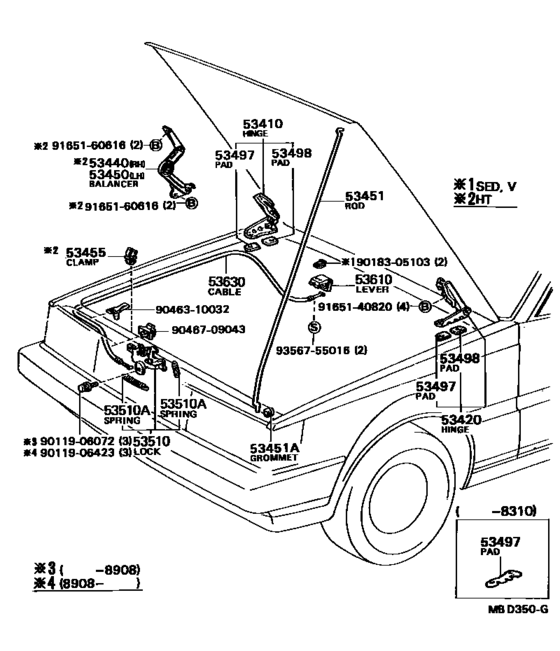

Hood Lock & Hinge ([01.1982 - ] (8201- )) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- ST140
- grade
- GX
- body
- HT
- ENGINE
- 1SU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-14060
Hinge Assy, Hood, Rh
[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
53410-14060 |
— | ||
| replacement | |||||
|
53410
|
53410
53410-14061
Hinge Assy, Hood, Rh
[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
53410-14061 |
— | ||
|
53420
|
53420
53420-14040
Hinge Assy, Hood, Lh
[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
53420-14040 |
— | ||
| replacement | |||||
|
53420
|
53420
53420-14041
Hinge Assy, Hood, Lh
[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
53420-14041 |
— | ||
|
53440
|
53440
53440-91D01 Balancer Assy, Hood, Rh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
53440-91D01 |
US $61.44 |
||
|
53450
|
53450
53450-91D01 Balancer Assy, Hood, Lh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
53450-91D01 |
US $61.44 |
||
|
53451
|
53451
53451-14050 Rod, Hood Support[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
53451-14050 |
US $17.62 |
||
|
53451A
|
53451A
90480-15011 Grommet(For Hood Support Rod)[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
90480-15011 |
from US $4.54 |
||
|
53455
|
53455
53455-14020 Clamp, Hood Support Rod[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
53455-14020 |
from US $1.28 |
||
|
53497
|
53497
53497-14010
Pad, Hood Hinge, No.1
[01.1982 - 10.1983] AT140,CT14#,RT141,ST140,TT14#,YT140 |
53497-14010 |
— | ||
| replacement | |||||
|
53497
|
53497
53497-14011
Pad, Hood Hinge, No.1
[01.1982 - 10.1983] AT140,CT14#,RT141,ST140,TT14#,YT140 |
53497-14011 |
— | ||
|
53497
|
53497
53497-14060 Pad, Hood Hinge, No.1[10.1983 - 12.1986] AT14#,CT14#,KT147,ST140,TT142,YT140 |
53497-14060 |
US $2.77 |
||
| replacement | |||||
|
53497
|
53497
53497-14061 Pad, Hood Hinge, No.1[10.1983 - 12.1986] AT14#,CT14#,KT147,ST140,TT142,YT140 |
53497-14061 |
US $2.48 |
||
|
53498
|
53498
53498-12010
Pad, Hood Hinge, No.2
[10.1983 - 12.1986] AT14#,CT14#,KT147,ST140,TT142,YT140 |
53498-12010 |
— | ||
| replacement | |||||
|
53498
|
53498
53498-12011 Pad, Hood Hinge, No.2[10.1983 - 12.1986] AT14#,CT14#,KT147,ST140,TT142,YT140 |
53498-12011 |
US $1.92 |
||
|
53510
|
53510
53510-91D01 Lock Assy, Hood[01.1982 - 10.1983] RT141,ST140,TT142..HT |
53510-91D01 |
US $43.39 |
||
| replacement | |||||
|
53510
|
53510
53510-91D02 Lock Assy, Hood[01.1982 - 10.1983] RT141,ST140,TT142..HT |
53510-91D02 |
US $42.95 |
||
|
53510
|
53510
53510-91D02 Lock Assy, Hood[10.1983 - 08.1985] AT141,ST140,TT142..HT |
53510-91D02 |
US $42.95 |
||
|
53510A
|
53510A
90506-09008 Spring, Tension(For Spring Bracket)[10.1983 - 12.1986] AT14#,CT14#,KT147,ST140,TT142,YT140 線径＝０．９，コイル巻数＝２１．２５,CW=21.25, WD=0.9 |
90506-09008 |
US $3.32 |
||
|
53510A
|
53510A
90506-09029
Spring, Tension(For Hood Lock)
[10.1983 - 12.1986] AT14#,CT14#,KT147,ST140,TT142,YT140 線径＝０．９,CW=26.5, WD=0.9 |
90506-09029 |
— | ||
|
53510A
|
53510A
90506-18024
Spring, Tension(For Hood Lock)
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT WD=1.8 |
90506-18024 |
— | ||
|
53610
|
53610
53601-14010-01
Lever Assy, Hood Lock Release
[01.1982 - 10.1983] YT140;CT147,RT141,ST140,TT14#..HT,V;AT140,CT140,TT142..SED..(GTT,STD) BLACK,BLACK,TRIM2# |
53601-14010-01 |
— | ||
|
53610
|
53610
53601-14010-04
Lever Assy, Hood Lock Release
[01.1982 - 10.1983] AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
53601-14010-04 |
— | ||
| replacement | |||||
|
53610
|
53610
53601-14010-01
Lever Assy, Hood Lock Release
[01.1982 - 10.1983] AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
53601-14010-01 |
— | ||
|
53610
|
53610
53601-14010-16 Lever Assy, Hood Lock Release[01.1982 - 10.1983] AT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
53601-14010-16 |
US $34.80 |
||
| replacement | |||||
|
53610
|
53610
53601-14010-01
Lever Assy, Hood Lock Release
[01.1982 - 10.1983] AT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
53601-14010-01 |
— | ||
|
53630
|
53630
53630-14230 Cable Assy, Hood Lock Control[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
53630-14230 |
US $27.37 |
||
|
9011906072
|
9011906072
90119-06072 Bolt |
90119-06072 |
US $1.75 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.12 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9046310032
|
9046310032
90463-10032 New Genuine Part |
90463-10032 |
US $3.06 |
||
|
9046709043
|
9046709043
90467-09043 Clamp, Hood Lock Control Cable |
90467-09043 |
from US $1.56 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
