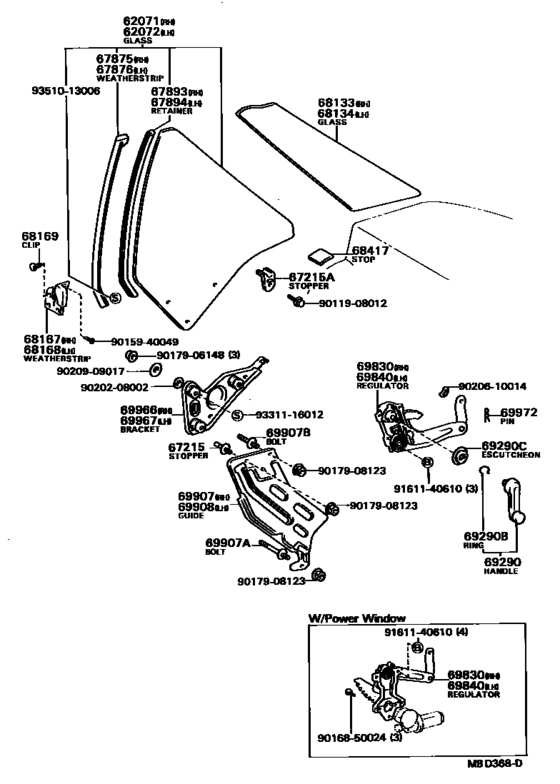

Quarter Window ([01.1982 - 08.1985] (8201-8508)HT) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- ST140
- grade
- GX
- body
- HT
- ENGINE
- 1SU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62071
|
62071
62071-91D01 Glass Sub-Assy, Quarter, Rh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT *TT,T=4.0 |
62071-91D01 |
US $345.07 |
||
|
62072
|
62072
62072-91D01 Glass Sub-Assy, Quarter, Lh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT *TT,T=4.0 |
62072-91D01 |
US $345.07 |
||
|
67215
|
67215
67215-91D01 Stopper, Quarter Window, Upper Front[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67215-91D01 |
US $9.46 |
||
|
67215A
|
67215A
67215-95500
Stopper, Quarter Window, Upper Front
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67215-95500 |
— | ||
|
67875
|
67875
67081-91D01
Weatherstrip, Rear Quarter Window Glass, Rh
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67081-91D01 |
— | ||
|
67876
|
67876
67082-91D01
Weatherstrip, Rear Quarter Window Glass, Lh
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67082-91D01 |
— | ||
|
67893
|
67893
67877-91D01 Retainer, Rear Quarter Window, Rh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67877-91D01 |
US $59.99 |
||
|
67894
|
67894
67878-91D01 Retainer, Rear Quarter Window, Lh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67878-91D01 |
US $59.99 |
||
|
68133
|
68133
68133-91D01 Glass, Quarter Window, No.2 Rh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT *TT,T=3.5 |
68133-91D01 |
US $97.55 |
||
|
68134
|
68134
68134-91D01 Glass, Quarter Window, No.2 Lh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT *TT,T=3.5 |
68134-91D01 |
US $97.55 |
||
|
68167
|
68167
67941-91D01
Weatherstrip, Rear Quarter Front Corner, Rh
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67941-91D01 |
— | ||
|
68168
|
68168
67942-91D01 Weatherstrip, Rear Quarter Front Corner, Lh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67942-91D01 |
US $40.62 |
||
|
68169
|
68169
67869-30020 Clip, Headlamp Door Filler[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67869-30020 |
US $3.52 |
||
|
68417
|
68417
67218-91D01 Stop, Rear Door, Lower[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67218-91D01 |
US $3.93 |
||
|
69290
|
69290
69260-14030-01 Handle Assy, Quarter Window Regulator[01.1982 - 08.1985] ST140..HT..EXA;AT141,RT141,ST140,TT142..EXS,GT,GTT,GX,SX BLACK,BLACK,TRIM2# |
69260-14030-01 |
US $21.69 |
||
| replacement | |||||
|
69290
|
69290
69260-14030-C0 Handle Assy, Rear Door Window Regulator (BLACK)[01.1982 - 08.1985] ST140..HT..EXA;AT141,RT141,ST140,TT142..EXS,GT,GTT,GX,SX BLACK,BLACK,TRIM2# |
69260-14030-C0 |
US $14.50 |
||
|
69290
|
69290
69260-14030-04 Handle Assy, Quarter Window Regulator[01.1982 - 10.1983] RT141,ST140,TT142..HT..(EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
69260-14030-04 |
US $21.69 |
||
| replacement | |||||
|
69290
|
69290
69260-14030-C0 Handle Assy, Rear Door Window Regulator (BLACK)[01.1982 - 10.1983] RT141,ST140,TT142..HT..(EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
69260-14030-C0 |
US $14.50 |
||
|
69290
|
69290
69260-14030-16 Handle Assy, Quarter Window Regulator[01.1982 - 10.1983] RT141,ST140,TT142..HT..(EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
69260-14030-16 |
US $21.69 |
||
| replacement | |||||
|
69290
|
69290
69260-14030-C0 Handle Assy, Rear Door Window Regulator (BLACK)[01.1982 - 10.1983] RT141,ST140,TT142..HT..(EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
69260-14030-C0 |
US $14.50 |
||
|
69290B
|
69290B
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) |
90520-01002 |
— | ||
| replacement | |||||
|
69290B
|
69290B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) |
90520-01274 |
from US $1.11 |
||
|
69290C
|
69290C
69285-22010
Escutcheon, Door Regulator Handle(For Front Door)
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) |
69285-22010 |
— | ||
| replacement | |||||
|
69290C
|
69290C
69285-22010-08 Escutcheon, Window Regulator Handle[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) |
69285-22010-08 |
from US $3.20 |
||
|
69830
|
69830
69803-91D01
Regulator Assy, Rear Quarter Window, Rh
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) W/O POWER WINDOW |
69803-91D01 |
— | ||
|
69840
|
69840
69804-91D01
Regulator Assy, Rear Quarter Window, Lh
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) W/O POWER WINDOW |
69804-91D01 |
— | ||
|
69907
|
69907
67405-91D01 Guide Sub-Assy, Quarter Regulator Roller, Rh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67405-91D01 |
US $52.56 |
||
|
69907A
|
69907A
90116-08287 Bolt, Stud, No.1(For Quarter Regulator Roller Guide)[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
90116-08287 |
US $1.60 |
||
|
69907B
|
69907B
90116-08044 Bolt, Stud, No.2(For Quarter Regulator Roller Guide)[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
90116-08044 |
US $2.91 |
||
|
69908
|
69908
67406-91D01
Guide Sub-Assy, Quarter Regulator Roller, Lh
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
67406-91D01 |
— | ||
|
69966
|
69966
69905-91D01 Bracket, Rear Quarter Window Glass, Rh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
69905-91D01 |
US $44.70 |
||
|
69967
|
69967
69906-91D01
Bracket, Rear Quarter Window Glass, Lh
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
69906-91D01 |
— | ||
|
69972
|
69972
69972-30010 Pin, Quarter Glass Channel Setting[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
69972-30010 |
US $2.77 |
||
|
9011908012
|
9011908012
90119-08012 New Genuine Part |
90119-08012 |
US $1.46 |
||
| replacement | |||||
|
9011908012
|
9011908012
91651-40812 New Genuine Part |
91651-40812 |
US $1.24 |
||
|
9015940049
|
9015940049
90159-40049
New Genuine Part
|
90159-40049 |
— | ||
|
9016850024
|
9016850024
90168-50024
New Genuine Part
|
90168-50024 |
— | ||
| replacement | |||||
|
9016850024
|
9016850024
90168-50013 SCREW |
90168-50013 |
US $2.72 |
||
|
9017906148
|
9017906148
90179-06148 New Genuine Part |
90179-06148 |
US $3.49 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9020208002
|
9020208002
90202-08002 Spacer, Front Door Glass, No.1 |
90202-08002 |
US $2.33 |
||
|
9020610014
|
9020610014
90206-10014 New Genuine Part |
90206-10014 |
US $2.33 |
||
|
9020909017
|
9020909017
90209-09017 Spacer, Front Door Glass, No.2 |
90209-09017 |
US $1.75 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9331116012
|
9331116012
93311-16012 Screw, Rear Axle Bearing Lock Nut |
93311-16012 |
from US $0.80 |
||
|
9351013006
|
9351013006
93510-13006 New Genuine Part |
93510-13006 |
US $2.18 |
||
