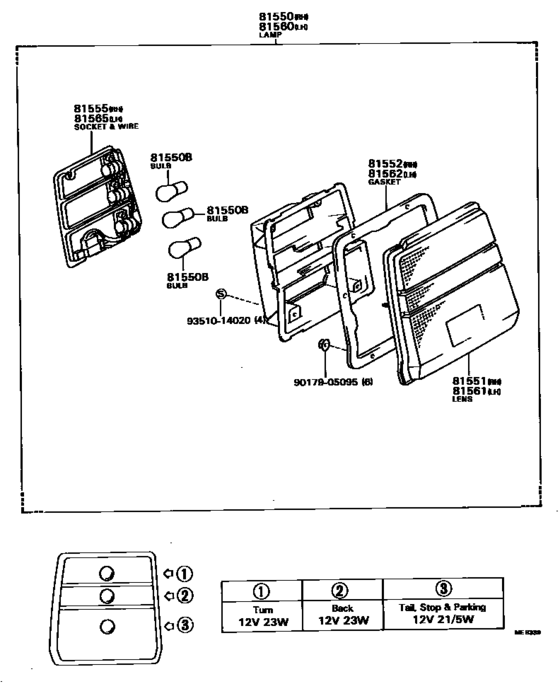

Rear Combination Lamp ([01.1982 - 10.1983] (8201-8310)HT) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- ST140
- grade
- GX
- body
- HT
- ENGINE
- 1SU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-80126 Lamp Assy, Rear Combination, Rh[01.1982 - 10.1983] RT141,ST140,TT142..HT |
81550-80126 |
US $298.48 |
||
|
81550
|
81550
81550-80198 Lamp Assy, Rear Combination, Rh[10.1983 - 08.1985] AT141,ST140,TT142..HT |
81550-80198 |
US $270.82 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-91D01 Lens, Rear Combination Lamp, Rh[01.1982 - 10.1983] RT141,ST140,TT142..HT |
81551-91D01 |
US $196.56 |
||
|
81551
|
81551
81551-91D02 Lens, Rear Combination Lamp, Rh[10.1983 - 08.1985] AT141,ST140,TT142..HT |
81551-91D02 |
US $168.90 |
||
|
81552
|
81552
81552-91D01 Gasket, Rear Combination Lamp Lens, Rh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
81552-91D01 |
US $15.58 |
||
|
81555
|
81555
81555-91D01
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1982 - 10.1983] RT141,ST140,TT142..HT |
81555-91D01 |
— | ||
|
81555
|
81555
81555-91D02
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[10.1983 - 08.1985] AT141,ST140,TT142..HT |
81555-91D02 |
— | ||
|
81560
|
81560
81560-80130 Lamp Assy, Rear Combination, Lh[01.1982 - 10.1983] RT141,ST140,TT142..HT |
81560-80130 |
US $298.48 |
||
|
81560
|
81560
81560-80203 Lamp Assy, Rear Combination, Lh[10.1983 - 08.1985] AT141,ST140,TT142..HT |
81560-80203 |
US $270.82 |
||
|
81561
|
81561
81561-91D01 Lens, Rear Combination Lamp, Lh[01.1982 - 10.1983] RT141,ST140,TT142..HT |
81561-91D01 |
US $196.56 |
||
|
81561
|
81561
81561-91D02 Lens, Rear Combination Lamp, Lh[10.1983 - 08.1985] AT141,ST140,TT142..HT |
81561-91D02 |
US $168.90 |
||
|
81562
|
81562
81552-91D01 Gasket, Rear Combination Lamp Lens, Rh[01.1982 - 08.1985] AT141,RT141,ST140,TT142..HT |
81552-91D01 |
US $15.58 |
||
|
81565
|
81565
81565-91D01
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[01.1982 - 10.1983] RT141,ST140,TT142..HT |
81565-91D01 |
— | ||
|
81565
|
81565
81565-91D02
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[10.1983 - 08.1985] AT141,ST140,TT142..HT |
81565-91D02 |
— | ||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9351014020
|
9351014020
93510-14020 New Genuine Part |
93510-14020 |
US $2.18 |
||
