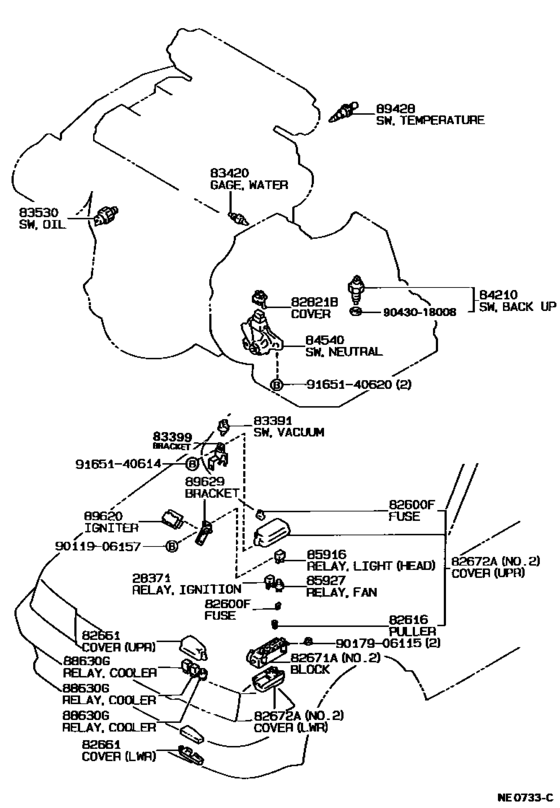

Switch & Relay & Computer ([12.1987 - ] (8712- )ST171) Diagram Toyota CORONA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- ST171
- grade
- GL
- body
- SED
- ENGINE
- 3SF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CORONA/ CARINA 2
- From
- 12.1987
- To
- 08.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corona/ Carina 2
- Driver's Position
- RHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-04002 Relay, Ignition, No.1[12.1987 - 11.1992] 4AF,2C,3SF#..AT17#,CT17#,ST171 |
90987-04002 |
from US $24.67 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[12.1987 - 11.1992] AT17#,CT17#,ST171 30A,30A |
90982-07011 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[12.1987 - 02.1988] AT17#,CT17#,ST171 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[12.1987 - 02.1988] AT17#,CT17#,ST171 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[12.1987 - 11.1992] AT17#,CT17#,ST171 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[12.1987 - 11.1992] AT17#,CT17#,ST171 7.5A |
90982-09005 |
from US $1.03 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[12.1987 - 11.1992] AT17#,CT17#,ST171 |
82616-12010 |
from US $3.04 |
||
|
82661
|
82661
82661-20080 Cover, Relay Block, No.1[12.1987 - 11.1992] CT17#,ST171 UPR |
82661-20080 |
US $14.56 |
||
|
82661
|
82661
82672-20380 Cover, Relay Block, No.1[12.1987 - 11.1992] CT17#,ST171 LWR |
82672-20380 |
US $8.15 |
||
|
82671A
|
82671A
82671-20090 Block, Junction[12.1987 - 11.1992] AT17#,ST171..RHD NO.4 |
82671-20090 |
US $230.05 |
||
|
82671A
|
82671A
82671-20100 Block, Junction[12.1987 - 11.1992] AT17#,CT17#,ST171 NO.1 |
82671-20100 |
US $230.05 |
||
|
82671A
|
82671A
82671-20110 Block, Junction[12.1987 - 11.1992] AT17#,ST171..RHD NO.3 |
82671-20110 |
US $230.05 |
||
|
82671A
|
82671A
82671-20160 Block, Junction[12.1987 - 08.1990] ST171..CBR;ST171..SED..EFI NO.2; ST171..LB..EFI W(32C24L BATTERY),NO.2 |
82671-20160 |
US $230.05 |
||
|
82671A
|
82671A
82671-20170 Block, Junction[12.1987 - 08.1990] CT17#;ST171..LB..EFI NO.2; ST171..GEN..CBR;ST171..SED..EFI W(55D23L-MF OR 55D26L-MF BATTERY),NO.2 |
82671-20170 |
US $230.05 |
||
|
82672A
|
82672A
82672-20200 Cover, Junction Block[12.1987 - 11.1992] CT17#,ST171 NO.2,LWR |
82672-20200 |
US $28.54 |
||
|
82672A
|
82672A
82672-20310 Cover, Junction Block[12.1987 - 11.1992] AT17#,ST171..RHD NO.3 |
82672-20310 |
US $8.15 |
||
|
82672A
|
82672A
82672-20330 Cover, Junction Block[12.1987 - 02.1988] AT17#,ST171..RHD NO.1 |
82672-20330 |
US $9.76 |
||
|
82672A
|
82672A
82672-20410 Cover, Junction BlockJUNCTION BLOCK [12.1987 - 11.1989] ST171 NO.2,UPR |
82672-20410 |
US $35.82 |
||
|
82672A
|
82672A
82672-20460 Cover, Junction BlockJUNCTION BLOCK [02.1988 - 11.1992] AT17#,ST171..RHD NO.1 |
82672-20460 |
US $1.89 |
||
|
82672A
|
82672A
82672-20680 Cover, Junction BlockJUNCTION BLOCK [11.1989 - 11.1992] ST171 NO.2,UPR |
82672-20680 |
US $36.69 |
||
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[12.1987 - 11.1992] AT17#,ST171 |
83420-16020 |
from US $50.49 |
||
|
83530
|
83530
83530-30080
Switch Assy, Oil Pressure (For Engine)
[12.1987 - 11.1992] ST171 |
83530-30080 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60040 Switch Assy, Oil Pressure (For Engine)[12.1987 - 11.1992] ST171 |
83530-60040 |
from US $34.52 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[12.1987 - 11.1992] AT17#,CT17#,ST171..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[12.1987 - 11.1992] AT17#,CT17#,ST171..MTM |
84210-52050 |
from US $20.67 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[12.1987 - 11.1992] AT17#,CT17#,ST171 TAIL LAMP,MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[12.1987 - 11.1992] AT17#,CT17#,ST171 TAIL LAMP,MARUKO |
90987-02004 |
from US $28.49 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[12.1987 - 11.1992] AT17#,CT17#,ST171 TAIL LAMP,*ND |
90987-02004 |
from US $28.49 |
||
|
85916
|
85916
90987-02006 Relay[12.1987 - 08.1990] AT17#,CT17#,ST171 HEADLAMP |
90987-02006 |
from US $27.28 |
||
|
85927
|
85927
90987-03001 Relay[12.1987 - 11.1992] AT17#,CT17#,ST171 |
90987-03001 |
from US $31.32 |
||
|
88630G
|
88630G
85926-30020 Relay, Headlamp Dimmer[12.1987 - 11.1989] AT17#,CT17#;ST171..LB,SED MB4 TYPE |
85926-30020 |
from US $55.03 |
||
|
88630G
|
88630G
88630-32010
Relay Assy, Cooler
[12.1987 - 11.1989] AT17#,CT17#;ST171..LB,SED MB5 TYPE |
88630-32010 |
— | ||
|
88630G
|
88630G
90987-02004 Relay Assy, Starter[12.1987 - 11.1989] AT17#,CT17#;ST171..LB,SED M4 TYPE |
90987-02004 |
from US $28.49 |
||
|
89428
|
89428
89428-15011 Switch, Temperature Detect, No.2[02.1992 - 11.1992] ST171 |
89428-15011 |
US $78.62 |
||
| replacement | |||||
|
89428
|
89428
89428-32010 Switch, Temperature Detect, No.2[02.1992 - 11.1992] ST171 |
89428-32010 |
US $84.91 |
||
|
89428
|
89428
89428-20060
Switch, Temperature Detect, No.2
[12.1987 - 11.1989] ST171 ENGINE |
89428-20060 |
— | ||
|
9011906157
|
9011906157
90119-06157 Bolt |
90119-06157 |
US $2.33 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
