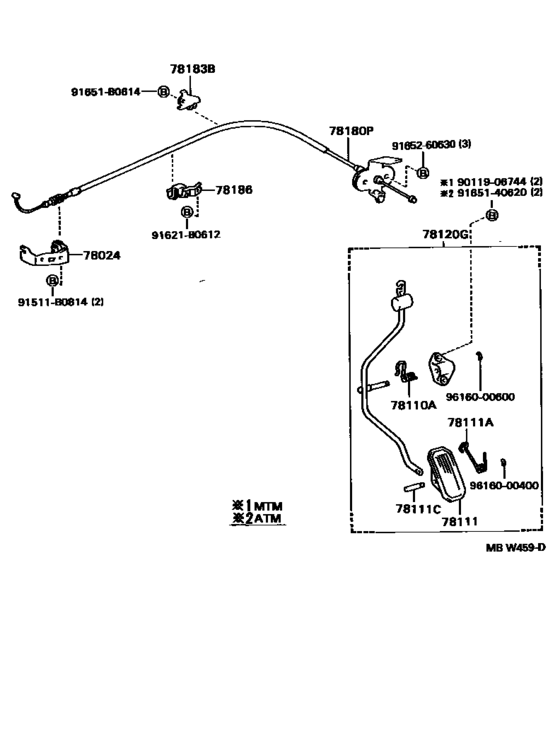

Accelerator Link ([02.1992 - ] (9202- )ST19#) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- EXS
- body
- SED
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-20140 Bracket Sub-Assy, Accelerator Control Cable[02.1992 - 01.1996] ST19# |
78024-20140 |
US $15.14 |
||
|
78110A
|
78110A
90508-18048 Spring (For Accelerator Pedal Rod)[02.1992 - 01.1996] AT190..MTM;ST19#..ATM |
90508-18048 |
US $1.40 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[02.1992 - 08.1992] AT190,CT190,ST19# |
78111-32010 |
US $8.56 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[02.1992 - 01.1996] AT190,CT19#,ST19# |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[02.1992 - 01.1996] AT190,CT19#,ST19# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20540 Rod Assy, Accelerator Pedal[02.1992 - 01.1996] ST19#..ATM |
78120-20540 |
US $40.91 |
||
|
78180P
|
78180P
78180-2B880 Cable Assy, Accelerator Control[02.1992 - 07.1993] ST19# |
78180-2B880 |
US $63.19 |
||
| replacement | |||||
|
78180P
|
78180P
78180-2B881 Cable Assy, Accelerator Control[02.1992 - 07.1993] ST19# |
78180-2B881 |
US $63.48 |
||
|
78180P
|
78180P
78180-2B881 Cable Assy, Accelerator Control[07.1993 - 01.1996] ST19# |
78180-2B881 |
US $63.48 |
||
|
78183B
|
78183B
78183-20170 Clamp, Accelerator Control Cable[02.1992 - 01.1996] AT190,CT19#,ST19# |
78183-20170 |
US $5.10 |
||
|
78186
|
78186
78186-20150 Support, Accelerator Control Cable, No.1[02.1992 - 03.1992] ST19# |
78186-20150 |
US $17.76 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
91621B0612
|
91621B0612
91621-B0612
New Genuine Part
|
91621-B0612 |
— | ||
| replacement | |||||
|
91621B0612
|
91621B0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9011906744
|
9011906744
90119-06744 New Genuine Part |
90119-06744 |
US $2.04 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165260630
|
9165260630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
