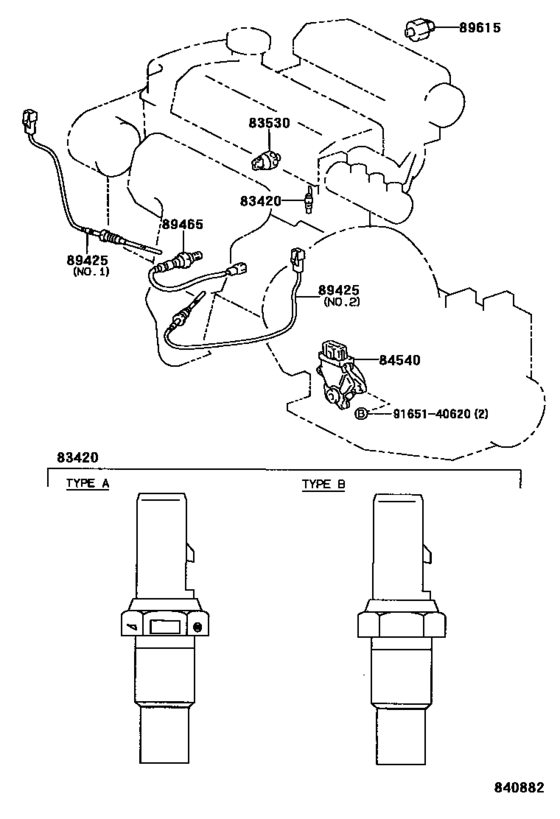

Switch & Relay & Computer ([12.1996 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9612- )D4) Diagram Toyota CORONA
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- ST210
- grade
- PRMG
- ENGINE
- 3SFSE
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 12.1996
- To
- 12.2001
- Vehicle Model
- Corona
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[01.1996 - 12.1997] AT21#; ST21# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
83420-20040 |
from US $37.77 |
||
|
83420
|
83420
83420-AA010 Gage Assy, Water Temperature Sender[10.1996 - 12.1997] ST21# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
83420-AA010 |
US $50.09 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.1998 -] ST21# ＤＥＮＳＯ |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] ST21# ＤＥＮＳＯ |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.1998 -] ST21# ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[01.1996 - 03.1998] AT21#,ST21# |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.1996 - 03.1998] AT21#,ST21# |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] AT21#; ST21# ＹＡＺＡＫＩ |
83530-60020 |
from US $25.43 |
||
|
84540
|
84540
84540-12200 Switch Assy, Neutral Start[01.1996 -] ST210..D4;AT21#..ATM 東海理化 |
84540-12200 |
US $174.24 |
||
|
84540
|
84540
84540-12210 Switch Assy, Neutral Start[01.1996 -] ST210..D4;AT21#..ATM ＭＡＴＳＵＳＨＩＴＡ |
84540-12210 |
US $159 |
||
|
89425
|
89425
89425-20320 Sensor, Exhaust Gas Temperature[12.1996 - 12.1997] ST210..D4 ＮＯ．１ |
89425-20320 |
US $279.55 |
||
|
89425
|
89425
89425-20330 Sensor, Exhaust Gas Temperature[12.1996 - 12.1997] ST210..D4 ＮＯ．２ |
89425-20330 |
US $279.55 |
||
|
89465
|
89465
89465-20610 Sensor, Oxygen[12.1996 - 08.1998] ST210..D4 |
89465-20610 |
from US $144.14 |
||
|
89465
|
89465
89465-20640 Sensor, Oxygen[08.1998 -] ST210 |
89465-20640 |
from US $149.97 |
||
|
89615
|
89615
89615-20030 Sensor, Knock Control[01.1996 - 10.1998] ST21# ＴＯＹＯＴＡ |
89615-20030 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[01.1996 - 10.1998] ST21# ＴＯＹＯＴＡ |
89615-32030 |
from US $179.97 |
||
|
89615
|
89615
89615-20070 Sensor, Knock Control[10.1998 - 09.1999] ST210 |
89615-20070 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32050 Sensor, Knock Control[10.1998 - 09.1999] ST210 |
89615-32050 |
US $225.68 |
||
|
89615
|
89615
89615-32050 Sensor, Knock Control[09.1999 -] ST210 |
89615-32050 |
US $225.68 |
||
|
89615
|
89615
89615-33020 Sensor, Knock Control[01.1996 - 10.1998] ST21# ＮＩＰＰＯＮＤＥＮＳＯ |
89615-33020 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[01.1996 - 10.1998] ST21# ＮＩＰＰＯＮＤＥＮＳＯ |
89615-32030 |
from US $179.97 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
