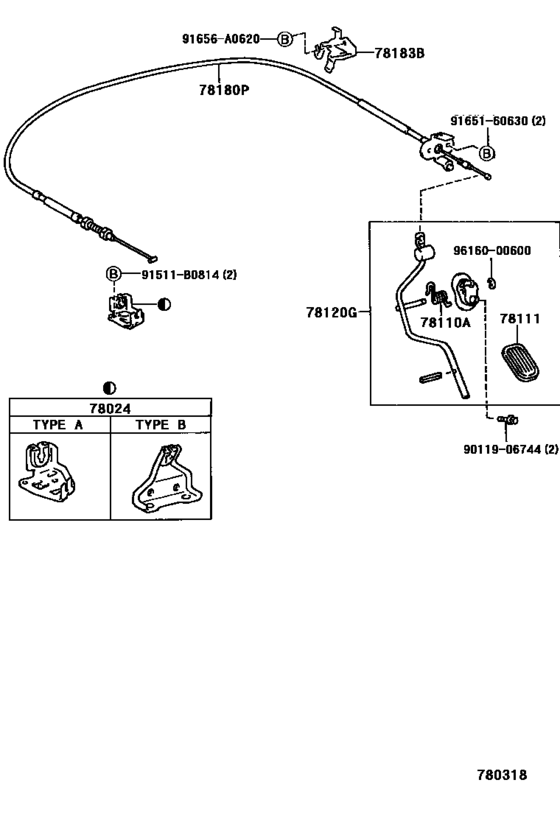

Accelerator Link ([01.1996 - ] (9601- )ST210) Diagram Toyota CORONA
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- ST210
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 01.1996
- To
- 12.2001
- Vehicle Model
- Corona
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-20160 Bracket Sub-Assy, Accelerator Control Cable[01.1996 - 12.1996] ST210 |
78024-20160 |
US $15.58 |
||
|
78024
|
78024
78024-24010
Bracket Sub-Assy, Accelerator Control Cable
[01.1996 - 12.1997] ST210 TYPE B |
78024-24010 |
— | ||
|
78024
|
78024
78024-44020
Bracket Sub-Assy, Accelerator Control Cable
[12.1996 -] ST210 |
78024-44020 |
— | ||
|
78110A
|
78110A
90959-03102 Spring (For Accelerator Pedal Rod)[01.1996 - 08.1998] AT210,ST210 |
90959-03102 |
US $3.20 |
||
|
78111
|
78111
78111-16030 Pedal, AcceleratorACCELERATOR [12.1997 - 10.1998] AT210,ST210 |
78111-16030 |
US $12.38 |
||
| replacement | |||||
|
78111
|
78111
78111-20060 Pedal, Accelerator[12.1997 - 10.1998] AT210,ST210 |
78111-20060 |
US $11.39 |
||
|
78111
|
78111
78111-20060 Pedal, Accelerator[10.1998 - 02.1999] ST210 |
78111-20060 |
US $11.39 |
||
|
78111
|
78111
78111-33020 Pedal, Accelerator[11.2001 - 12.2001] AT210,ST210 |
78111-33020 |
US $11.88 |
||
|
78120G
|
78120G
78120-20690 Rod Assy, Accelerator Pedal[01.1996 - 08.1998] AT210,ST210 |
78120-20690 |
US $40.91 |
||
|
78180P
|
78180P
78180-2D520 Cable Assy, Accelerator Control[01.1996 - 01.1997] ST210 |
78180-2D520 |
US $63.34 |
||
|
78180P
|
78180P
78180-2D600 Cable Assy, Accelerator ControlACCELERATOR CONTROL [01.1996 - 12.1997] ST210 L=1015 |
78180-2D600 |
US $66.10 |
||
|
78180P
|
78180P
78180-2D680 Cable Assy, Accelerator Control[01.1997 - 12.1997] ST210 |
78180-2D680 |
US $63.48 |
||
|
78183B
|
78183B
78183-20170 Clamp, Accelerator Control Cable[01.1996 - 10.1998] AT210,ST210 |
78183-20170 |
US $5.10 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
91656A0620
|
91656A0620
91656-A0620 New Genuine Part |
91656-A0620 |
US $1.89 |
||
| replacement | |||||
|
91656A0620
|
91656A0620
91653-A0620 New Genuine Part |
91653-A0620 |
US $0.96 |
||
|
9011906744
|
9011906744
90119-06744 New Genuine Part |
90119-06744 |
US $2.04 |
||
|
9165160630
|
9165160630
91651-60630 New Genuine Part |
91651-60630 |
US $1.89 |
||
| replacement | |||||
|
9165160630
|
9165160630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
