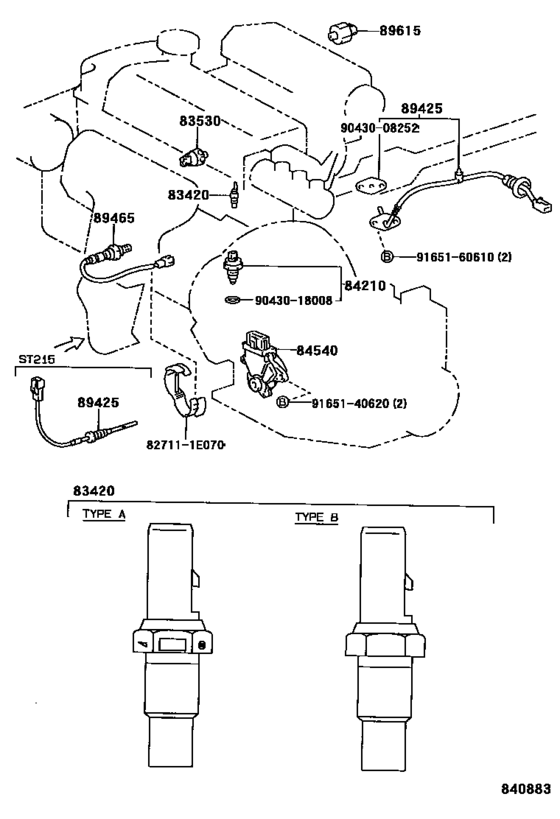

Switch & Relay & Computer ([01.1996 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9601- )ST21#..EFI) Diagram Toyota CORONA
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- ST215
- grade
- PRME
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 01.1996
- To
- 12.2001
- Vehicle Model
- Corona
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[01.1996 - 12.1997] AT21#; ST21# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
83420-20040 |
from US $37.77 |
||
|
83420
|
83420
83420-AA010 Gage Assy, Water Temperature Sender[10.1996 - 12.1997] ST21# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
83420-AA010 |
US $50.09 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.1998 -] ST21# ＤＥＮＳＯ |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] ST21# ＤＥＮＳＯ |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.1998 -] ST21# ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[01.1996 - 03.1998] AT21#,ST21# |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.1996 - 03.1998] AT21#,ST21# |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] AT21#; ST21# ＹＡＺＡＫＩ |
83530-60020 |
from US $25.43 |
||
|
84540
|
84540
84540-16050 Switch Assy, Neutral Start[12.1997 -] CT21#,ST215..ATM |
84540-16050 |
US $159 |
||
|
84540
|
84540
84540-20200 Switch Assy, Neutral Start[01.1996 - 12.1997] ST215..ATM |
84540-20200 |
US $336.34 |
||
|
89425
|
89425
89425-20210 Sensor, Exhaust Gas Temperature[01.1996 - 12.1997] ST215 |
89425-20210 |
US $279.55 |
||
| replacement | |||||
|
89425
|
89425
89425-20290
Sensor, Exhaust Gas Temperature
[01.1996 - 12.1997] ST215 |
89425-20290 |
— | ||
|
89465
|
89465
89465-20270
Sensor, Oxygen
[01.1996 -] ST215 |
89465-20270 |
— | ||
|
89615
|
89615
89615-20030 Sensor, Knock Control[01.1996 - 10.1998] ST21# ＴＯＹＯＴＡ |
89615-20030 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[01.1996 - 10.1998] ST21# ＴＯＹＯＴＡ |
89615-32030 |
from US $179.97 |
||
|
89615
|
89615
89615-32030 Sensor, Knock Control[10.1999 -] ST215 ＤＥＮＳＯ |
89615-32030 |
from US $179.97 |
||
|
89615
|
89615
89615-32040 Sensor, Knock Control[10.1999 -] ST215 ＴＯＹＯＴＡ |
89615-32040 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[10.1999 -] ST215 ＴＯＹＯＴＡ |
89615-32030 |
from US $179.97 |
||
|
89615
|
89615
89615-33020 Sensor, Knock Control[01.1996 - 10.1998] ST21# ＮＩＰＰＯＮＤＥＮＳＯ |
89615-33020 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[01.1996 - 10.1998] ST21# ＮＩＰＰＯＮＤＥＮＳＯ |
89615-32030 |
from US $179.97 |
||
|
827111E070
|
827111E070
82711-1E070 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1E070 |
US $3.49 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
