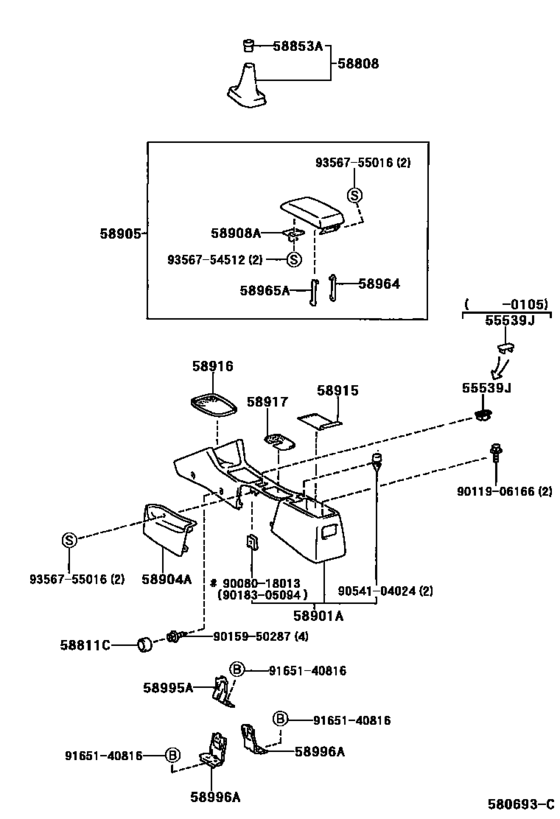

Console Box & Bracket ([10.1997 - ] (9710- )) Diagram Toyota CORONA
- Year
- 1997 - 2003
- Sales region
- General
- Frame
- ST220
- grade
- TERRA
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 10.1997
- To
- 01.2003
- Vehicle Model
- Corona
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539J
|
55539J
55539-02010-B3 Cover, Spare Switch Hole[05.2001 -] ST220 DK.GRAY,TRIM1# |
55539-02010-B3 |
US $5.39 |
||
|
55539J
|
55539J
55539-02010-G0
Cover, Spare Switch Hole
[05.2001 -] ST220 SLATE GREEN,TRIM6# |
55539-02010-G0 |
— | ||
|
55539J
|
55539J
55539-05030-B0
Cover, Spare Switch Hole
[10.1997 - 07.2000] AT220,CT220,ST220 MD. GRAY,TRIM1# |
55539-05030-B0 |
— | ||
|
55539J
|
55539J
55539-05030-B1
Cover, Spare Switch Hole
[07.2000 - 05.2001] ST220 DK.GRAY,TRIM1# |
55539-05030-B1 |
— | ||
|
55539J
|
55539J
55539-05030-G0
Cover, Spare Switch Hole
[10.1997 - 05.2001] AT220,CT220,ST220 GREEN,TRIM6# |
55539-05030-G0 |
— | ||
|
58808
|
58808
58808-05030-C0
Cover Sub-Assy, Shifting Hole
[10.1997 - 07.2000] AT220,CT220,ST220..LHD..MTM BLACK,TRIM1#,6# |
58808-05030-C0 |
— | ||
|
58808
|
58808
58808-05050-C0
Cover Sub-Assy, Shifting Hole
[07.2000 -] ST220..LHD..MTM BLACK,TRIM1#,6# |
58808-05050-C0 |
— | ||
|
58811C
|
58811C
90339-10014-B1 Cap[10.1997 - 07.2000] AT220,CT220,ST220 MD.GRAY,TRIM1# |
90339-10014-B1 |
US $2.08 |
||
| replacement | |||||
|
58811C
|
58811C
90339-10014-C0 Cap[10.1997 - 07.2000] AT220,CT220,ST220 MD.GRAY,TRIM1# |
90339-10014-C0 |
US $2.08 |
||
|
58811C
|
58811C
90339-10014-B3 Cap[07.2000 -] ST220 DK.GRAY,TRIM1# |
90339-10014-B3 |
US $2.08 |
||
| replacement | |||||
|
58811C
|
58811C
90339-10014-C0 Cap[07.2000 -] ST220 DK.GRAY,TRIM1# |
90339-10014-C0 |
US $2.08 |
||
|
58811C
|
58811C
90339-10014-G3 Cap[10.1997 -] AT220,CT220,ST220 SLATE GREEN,TRIM6# |
90339-10014-G3 |
US $2.08 |
||
| replacement | |||||
|
58811C
|
58811C
90339-10014-C0 Cap[10.1997 -] AT220,CT220,ST220 SLATE GREEN,TRIM6# |
90339-10014-C0 |
US $2.08 |
||
|
58853A
|
58853A
58853-05010 Packing, Shift Lever HoleSHIFT LEVER HOLE [10.1997 - 07.2000] AT220,CT220,ST220..MTM |
58853-05010 |
US $9.61 |
||
|
58901A
|
58901A
58901-05050-B0
Box Sub-Assy, Console, Rear
[10.1997 - 07.2000] AT220,CT220,ST220..LHD MD.GRAY,TRIM1# |
58901-05050-B0 |
— | ||
|
58901A
|
58901A
58901-05050-B1
Box Sub-Assy, Console, Rear
[07.2000 -] ST220..LHD DK.GRAY,TRIM1# |
58901-05050-B1 |
— | ||
|
58901A
|
58901A
58901-05050-G0
Box Sub-Assy, Console, Rear
[10.1997 -] AT220,CT220,ST220..LHD SLATE GREEN,TRIM6# |
58901-05050-G0 |
— | ||
|
58904A
|
58904A
58904-05030-B0
Stopper Sub-Assy, Console Compartment Door
[10.1997 - 07.2000] AT220,CT220,ST220..LHD MD.GRAY,TRIM1# |
58904-05030-B0 |
— | ||
|
58904A
|
58904A
58904-05030-B1
Stopper Sub-Assy, Console Compartment Door
[07.2000 -] ST220..LHD DK.GRAY,TRIM1# |
58904-05030-B1 |
— | ||
|
58904A
|
58904A
58904-05030-G0
Stopper Sub-Assy, Console Compartment Door
[10.1997 -] AT220,CT220,ST220..LHD SLATE GREEN,TRIM6# |
58904-05030-G0 |
— | ||
|
58905
|
58905
58905-05020-B0
Door Sub-Assy, Console Compartment
[10.1997 - 07.2000] AT220,CT220,ST220 MD.GRAY,TRIM1# |
58905-05020-B0 |
— | ||
|
58905
|
58905
58905-05020-B1
Door Sub-Assy, Console Compartment
[07.2000 -] ST220 DK.GRAY,TRIM1# |
58905-05020-B1 |
— | ||
|
58905
|
58905
58905-05020-G0
Door Sub-Assy, Console Compartment
[10.1997 -] AT220,CT220,ST220 SLATE GREEN,TRIM6# |
58905-05020-G0 |
— | ||
|
58908A
|
58908A
58908-32050 Lock Sub-Assy, Console Compartment Door[10.1997 -] AT220,CT220,ST220 |
58908-32050 |
from US $8.03 |
||
|
58915
|
58915
58915-05010
Panel, Box Bottom
[07.2000 -] ST220 |
58915-05010 |
— | ||
|
58916
|
58916
58916-05010
Mat, Box Bottom
[07.2000 -] ST220..LHD |
58916-05010 |
— | ||
|
58917
|
58917
58917-05010
Mat, Box Bottom, No.2
[07.2000 -] ST220 |
58917-05010 |
— | ||
|
58964
|
58964
58964-05020 Stopper, Console Compartment Door, No.1CONSOLE COMPARTMENT DOOR, NO.1 [10.1997 -] AT220,CT220,ST220 |
58964-05020 |
US $11.50 |
||
|
58965A
|
58965A
58965-05040 Stopper, Console Compartment Door, No.2CONSOLE COMPARTMENT DOOR, NO.2 [10.1997 -] AT220,CT220,ST220 |
58965-05040 |
US $5.24 |
||
|
58995A
|
58995A
58995-05010 Bracket, Console Box Mounting, No.1CONSOLE BOX MOUNTING, NO.1 [10.1997 -] AT220,CT220,ST220..LHD |
58995-05010 |
US $10.92 |
||
|
58996A
|
58996A
58996-05010 Bracket, Console Box Mounting, No.2CONSOLE BOX MOUNTING, NO.2 [10.1997 -] AT220,CT220,ST220 |
58996-05010 |
US $10.92 |
||
|
9008018013
|
9008018013
90080-18013
New Genuine Part
|
90080-18013 |
— | ||
|
9011906166
|
9011906166
90119-06166 BOLT |
90119-06166 |
US $1.28 |
||
|
9015950287
|
9015950287
90159-50287 SCREW WWASHER |
90159-50287 |
from US $1.07 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9054104024
|
9054104024
90541-04024 New Genuine Part |
90541-04024 |
US $2.33 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9356754512
|
9356754512
93567-54512
SCREW
|
93567-54512 |
— | ||
| replacement | |||||
|
9356754512
|
9356754512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
