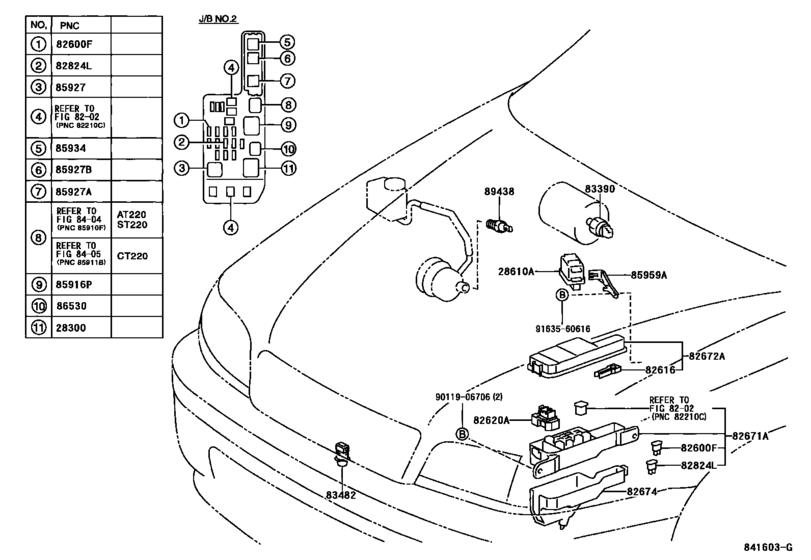

Switch & Relay & Computer ([10.1997 - ] ENGINE ROOM (9710- )) Diagram Toyota CORONA
- Year
- 1997 - 2003
- Sales region
- General
- Frame
- ST220
- grade
- TERRA
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 10.1997
- To
- 01.2003
- Vehicle Model
- Corona
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[10.1997 -] 4AFE,2CT,3SFE..AT220,CT220,ST220 |
28300-10020 |
from US $53.76 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[10.1997 -] AT220,CT220,ST220 7.5A,MINI FUSE |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[10.1997 -] AT220,CT220,ST220 10A,MINI FUSE |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[10.1997 -] AT220,CT220,ST220 15A,MINI FUSE |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[10.1997 -] AT220,CT220,ST220 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[10.1997 -] AT220,CT220,ST220 30A,MINI FUSE |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82031 Instrument Panel Fuse[10.1997 -] AT220,CT220,ST220 5A,MINI FUSE |
90080-82031 |
US $1.16 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[07.2000 -] ST220 25A,MINI FUSE |
90080-82033 |
— | ||
|
82616
|
82616
82616-20010 Puller, Fuse[10.1997 -] AT220,CT220,ST220 |
82616-20010 |
from US $2.38 |
||
|
82620A
|
82620A
82620-05020 Block Assy, Fusible LinkFUSIBLE LINK [10.1997 -] AT220,CT220,ST220 |
82620-05020 |
US $30.87 |
||
|
82671A
|
82671A
82720-05010 Block, JunctionJUNCTION [10.1997 -] AT220,CT220,ST220 |
82720-05010 |
US $150.74 |
||
|
82672A
|
82672A
82672-05030
Cover, Junction Block
[07.2000 -] ST220 |
82672-05030 |
— | ||
|
82672A
|
82672A
82672-05050
Cover, Junction Block
[10.1997 - 07.2000] AT220,CT220,ST220 |
82672-05050 |
— | ||
|
82674
|
82674
82674-05030
Cover, Junction Block Lower
[10.1997 -] AT220,CT220,ST220 |
82674-05030 |
— | ||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[10.1997 -] AT220,CT220,ST220 |
82824-20140 |
US $3.32 |
||
|
83482
|
83482
83482-05010
Sensor, Outer Ambient Temperature
[10.1997 -] AT220,CT220,ST220 |
83482-05010 |
— | ||
|
85916P
|
85916P
90987-02006 Relay[10.1997 -] AT220,CT220,ST220 |
90987-02006 |
from US $27.65 |
||
|
85927
|
85927
90080-87005
Relay, Computer (For Efi)
[10.1997 -] AT220,CT220,ST220 |
90080-87005 |
— | ||
|
85927A
|
85927A
90080-87012
Relay, Cooling Fan, No.2
[10.1997 -] AT220,CT220,ST220 |
90080-87012 |
— | ||
| replacement | |||||
|
85927A
|
85927A
90080-87020
Relay, Cooling Fan
[10.1997 -] AT220,CT220,ST220 |
90080-87020 |
— | ||
|
85927B
|
85927B
90080-87013
Relay, Fog Lamp
[10.1997 -] AT220,CT220,ST220 |
90080-87013 |
— | ||
| replacement | |||||
|
85927B
|
85927B
90080-87021
Relay, Lamp Cut
[10.1997 -] AT220,CT220,ST220 |
90080-87021 |
— | ||
|
85934
|
85934
90080-87013
Relay, Fog Lamp
[10.1997 -] AT220,CT220,ST220 |
90080-87013 |
— | ||
| replacement | |||||
|
85934
|
85934
90080-87021
Relay, Lamp Cut
[10.1997 -] AT220,CT220,ST220 |
90080-87021 |
— | ||
|
86530
|
86530
90080-87013
Relay, Fog Lamp
[10.1997 -] AT220,CT220,ST220 |
90080-87013 |
— | ||
| replacement | |||||
|
86530
|
86530
90080-87021
Relay, Lamp Cut
[10.1997 -] AT220,CT220,ST220 |
90080-87021 |
— | ||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[10.1997 -] ST220 |
89438-33010 |
from US $31.18 |
||
|
9011906706
|
9011906706
90119-06706 New Genuine Part |
90119-06706 |
US $1.28 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
US $1.76 |
||
