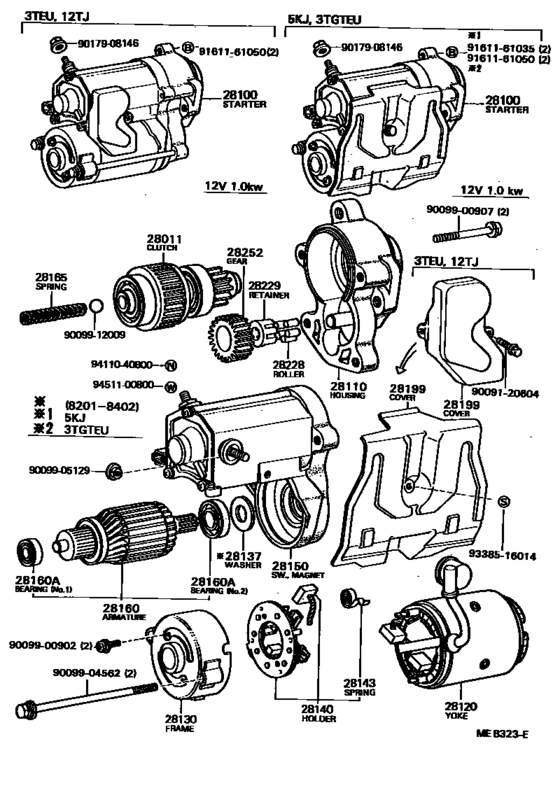

Starter ([01.1982 - 12.1987] (8201-8712)12TJ,5KJ,3T#) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- TT142
- grade
- SX
- body
- HT
- ENGINE
- 3TEU
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4FC
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-15010 Clutch Sub-Assy, Starter[01.1982 - 09.1984] 12TJ,18RGEU,3AU,4AGEU,3T#..AT14#,RT141,TT14# 12V 0.8KW |
28011-15010 |
US $69.01 |
||
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[01.1982 - 04.1998] 12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW |
28011-26042 |
— | ||
|
28100
|
28100
28100-27020 Starter Assy[01.1982 - 04.1983] 12TJ,3T#..TT14# １２Ｖ ０．８ＫＷ,12V 0.8KW |
28100-27020 |
US $1,030.85 |
||
|
28100
|
28100
28100-27030 Starter Assy[01.1982 - 10.1983] 12TJ,3TEU..TT14# １２Ｖ １．０ＫＷ,12V 1.0KW |
28100-27030 |
US $1,409.41 |
||
|
28110
|
28110
28110-27020 Housing Assy, Starter Drive[01.1982 - 09.1984] 12TJ,3T#..TT14# 12V 0.8KW |
28110-27020 |
US $93.18 |
||
|
28110
|
28110
28110-27030 Housing Assy, Starter Drive[01.1982 - 08.1985] 12TJ,3T#..TT14# 12V 1.0KW |
28110-27030 |
US $90.27 |
||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[01.1982 - 04.1998] 12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
28120-26071 |
— | ||
|
28120
|
28120
28120-26140
Yoke Assy, Starter
[01.1982 - 09.1984] 12TJ,4AGEU,3T#..AT141,TT14# 12V 0.8KW |
28120-26140 |
— | ||
|
28130
|
28130
28130-26070
Frame Assy, Starter Commutator End
[01.1982 - 08.1985] 12TJ,3T#..TT14# 12V 1.0KW |
28130-26070 |
— | ||
|
28130
|
28130
28130-37010 Frame Assy, Starter Commutator End[01.1982 - 09.1984] 12TJ,18RGEU,3T#..RT141,TT14# 12V 0.8KW |
28130-37010 |
US $50.96 |
||
|
28137
|
28137
90099-02323
Washer, Felt, Starter
[01.1982 - 02.1984] 12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
90099-02323 |
— | ||
|
28140
|
28140
28140-15010
Holder Assy, Starter Brush
[01.1982 - 09.1984] 12TJ,18RGEU,3AU,4AGEU,3T#..AT14#,RT141,TT14# 12V 0.8KW |
28140-15010 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[01.1982 - 04.1998] 12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
28140-26070 |
from US $16.77 |
||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[01.1982 - 04.1998] 12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#, YT140 12V 1.0KW,1.4KW |
90099-17112 |
— | ||
|
28150
|
28150
28150-15012
Switch Assy, Magnet Starter
[01.1982 - 01.1983] 12TJ,18RGEU,3AU,3T#..AT140,RT141,TT14# 12V 0.8KW |
28150-15012 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-37011
Switch Assy, Magnet Starter
[01.1982 - 01.1983] 12TJ,18RGEU,3AU,3T#..AT140,RT141,TT14# 12V 0.8KW |
28150-37011 |
— | ||
|
28150
|
28150
28150-27031 Switch Assy, Magnet Starter[01.1982 - 10.1983] 12TJ,3TEU..TT14# 12V 1.0KW |
28150-27031 |
US $347.98 |
||
|
28150
|
28150
28150-37010 Switch Assy, Magnet Starter[04.1983 - 10.1983] 12TJ,3TEU..TT14# 12V 0.8KW |
28150-37010 |
US $141.23 |
||
| replacement | |||||
|
28150
|
28150
28150-37011
Switch Assy, Magnet Starter
[04.1983 - 10.1983] 12TJ,3TEU..TT14# 12V 0.8KW |
28150-37011 |
— | ||
|
28160
|
28160
28160-15010 Armature Assy, Starter[01.1982 - 09.1984] 12TJ,18RGEU,3AU,4AGEU,3T#..AT14#,RT141,TT14# 12V 0.8KW |
28160-15010 |
US $230.05 |
||
|
28160
|
28160
28160-26070 Armature Assy, Starter[01.1982 - 04.1998] 12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[01.1982 - 04.1998] 12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
28160-26071 |
— | ||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[01.1982 - 09.1983] 12TJ,18RGEU,3AU,1C,1SU,3T#..AT140,CT14#,RT141,ST140,TT14# 12V 1.0KW,1.4KW,NO.1 |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10113
Bearing, Starter Armature
[01.1982 - 04.1998] 12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,NO.2 |
90099-10113 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[01.1982 - 04.1998] 12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#, YT140 12V 1.0KW,1.4KW,2.0KW |
28165-26040 |
— | ||
|
28199
|
28199
28199-15110
Cover, Starter
[04.1983 - 09.1984] 12TJ,3T#..TT14# 12V 0.8KW |
28199-15110 |
— | ||
|
28199
|
28199
28199-26131
Cover, Starter
[01.1982 - 04.1983] 12TJ,3T#..TT14# 12V 0.8KW |
28199-26131 |
— | ||
| replacement | |||||
|
28199
|
28199
28199-15110
Cover, Starter
[01.1982 - 04.1983] 12TJ,3T#..TT14# 12V 0.8KW |
28199-15110 |
— | ||
|
28199
|
28199
28199-27031
Cover, Starter
[01.1982 - 10.1983] 12TJ,3TEU..TT14# 12V 1.0KW |
28199-27031 |
— | ||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[01.1982 - 04.1998] 12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#, YT140 12V 1.0KW,1.4KW,2.0KW |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[01.1982 - 04.1998] 12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#, YT140 12V 1.0KW,1.4KW,2.0KW |
28229-26040 |
— | ||
|
28252
|
28252
28254-45020
Pinion, Starter Drive
[01.1982 - 04.1998] 12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW |
28254-45020 |
— | ||
|
9009120604
|
9009120604
90091-20604
New Genuine Part
|
90091-20604 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904562
|
9009904562
90099-04562
BOLT
|
90099-04562 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9161161050
|
9161161050
91611-61050
Bolt(For Transaxle & Engine Setting)
|
91611-61050 |
— | ||
| replacement | |||||
|
9161161050
|
9161161050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.29 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.28 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
