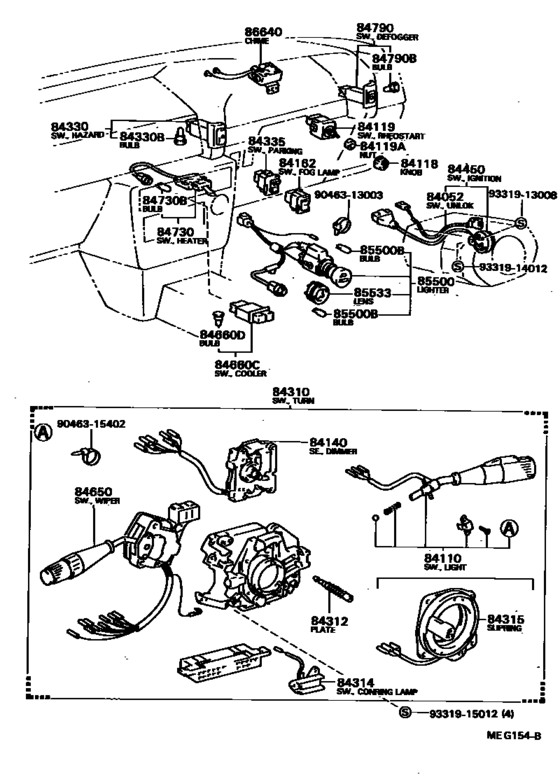

Switch & Relay & Computer ([08.1985 - ] (8508- )) Diagram Toyota CORONA FF COUPE
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- CP
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-10020 Switch Assy, Un-Lock Warning[08.1985 - 08.1987] AT160,ST16#..EXS,GT |
84052-10020 |
US $29.99 |
||
| replacement | |||||
|
84052
|
84052
84052-22030
Switch Assy, Un-Lock Warning
[08.1985 - 08.1987] AT160,ST16#..EXS,GT |
84052-22030 |
— | ||
|
84110
|
84110
84112-29485 Switch Assy, Light Control, No.1[08.1985 - 08.1987] ST16#..EXS,GT TOKAIRIKA,W/*VIW |
84112-29485 |
US $69.89 |
||
|
84110
|
84110
84112-29495 Switch Assy, Light Control, No.1[08.1985 - 08.1987] AT160,ST16#..GT,GX TOKAIRIKA |
84112-29495 |
US $69.89 |
||
| replacement | |||||
|
84110
|
84110
84112-29485 Switch Assy, Light Control, No.1[08.1985 - 08.1987] AT160,ST16#..GT,GX TOKAIRIKA |
84112-29485 |
US $69.89 |
||
|
84110
|
84110
84112-29545 Switch Assy, Light Control, No.1[08.1985 - 08.1987] ST16#..EXS,GT MATSUSHITA,W/*VIW |
84112-29545 |
US $69.89 |
||
|
84110
|
84110
84112-29555 Switch Assy, Light Control, No.1[08.1985 - 08.1987] AT160,ST16#..GT,GX MATSUSHITA |
84112-29555 |
US $69.89 |
||
|
84118
|
84118
84118-20011 Knob, Light Control Rheostat[08.1985 - 08.1987] ST16#..EXS,GT |
84118-20011 |
US $13.80 |
||
|
84119
|
84119
84119-20120 Rheostat, Light Control[08.1985 - 08.1987] ST16#..EXS,GT |
84119-20120 |
US $81.54 |
||
|
84119A
|
84119A
90170-09167
Nut, Tunnel Mode Select Switch
[08.1985 - 08.1987] ST16#..EXS,GT |
90170-09167 |
— | ||
|
84140
|
84140
84140-20150
Switch Assy, Headlamp Dimmer
[08.1985 - 08.1987] AT160,ST16#..GT,GX TOKAIRIKA |
84140-20150 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-20160
Switch Assy, Headlamp Dimmer
[08.1985 - 08.1987] AT160,ST16#..GT,GX TOKAIRIKA |
84140-20160 |
— | ||
|
84140
|
84140
84140-20160
Switch Assy, Headlamp Dimmer
[08.1985 - 08.1987] ST16#..EXS,GT TOKAIRIKA,W/*VIW |
84140-20160 |
— | ||
|
84140
|
84140
84140-20190 Switch Assy, Headlamp Dimmer[08.1985 - 08.1987] AT160,ST16#..GT,GX MATSUSHITA |
84140-20190 |
US $78.62 |
||
|
84140
|
84140
84140-20200 Switch Assy, Headlamp Dimmer[08.1985 - 08.1987] ST16#..EXS,GT MATSUSHITA,W/*VIW |
84140-20200 |
US $78.62 |
||
|
84162
|
84162
84160-95400 Switch Assy, Fog Lamp[08.1985 - 08.1987] AT160,ST16# |
84160-95400 |
US $51.72 |
||
|
84310
|
84310
84310-2B230 Switch Assy, Turn Signal[08.1985 - 08.1987] ST16#..EXS,GT W/*AD |
84310-2B230 |
US $281.01 |
||
|
84310
|
84310
84310-2B400 Switch Assy, Turn Signal[08.1985 - 08.1987] ST16#..EXS,GT W/*VIW,W/O *AD |
84310-2B400 |
US $281.01 |
||
| replacement | |||||
|
84310
|
84310
84310-2B740 Switch Assy, Turn Signal[08.1985 - 08.1987] ST16#..EXS,GT W/*VIW,W/O *AD |
84310-2B740 |
US $292.66 |
||
|
84310
|
84310
84310-2D110 Switch Assy, Turn Signal[08.1985 - 08.1987] AT160,ST16#..GT,GX TOKAIRIKA |
84310-2D110 |
US $254.80 |
||
| replacement | |||||
|
84310
|
84310
84310-2B690 Switch Assy, Turn Signal[08.1985 - 08.1987] AT160,ST16#..GT,GX TOKAIRIKA |
84310-2B690 |
US $292.66 |
||
|
84310
|
84310
84310-2D120 Switch Assy, Turn Signal[08.1985 - 08.1987] AT160,ST16#..GT,GX MATSUSHITA |
84310-2D120 |
US $254.80 |
||
|
84312
|
84312
84312-32010 Plate, Horn Contact[08.1985 - 08.1987] AT160,ST16# TOKAIRIKA |
84312-32010 |
from US $8.13 |
||
|
84312
|
84312
84312-32020
Plate, Horn Contact
[08.1985 - 08.1987] AT160,ST16# MATSUSHITA |
84312-32020 |
— | ||
|
84314
|
84314
84314-20030 Switch, Cornering Lamp[08.1985 - 08.1987] ST16#..EXS,GT TOKAIRIKA,W/*VIW,W/O *AD |
84314-20030 |
US $36.55 |
||
|
84314
|
84314
84314-20040
Switch, Cornering Lamp
[08.1985 - 08.1987] ST16#..EXS,GT MATSUSHITA,W/*VIW |
84314-20040 |
— | ||
|
84314
|
84314
84314-20050 Switch, Cornering Lamp[08.1985 - 08.1987] AT160,ST16#..GT,GX TOKAIRIKA |
84314-20050 |
US $36.55 |
||
|
84314
|
84314
84314-20060
Switch, Cornering Lamp
[08.1985 - 08.1987] AT160,ST16#..GT,GX MATSUSHITA |
84314-20060 |
— | ||
|
84315
|
84315
84315-20030 Slipring, Horn Contact[08.1985 - 08.1987] ST16#..EXS,GT TOKAIRIKA |
84315-20030 |
US $78.62 |
||
|
84315
|
84315
84315-20040 Slipring, Horn Contact[08.1985 - 08.1987] ST16#..EXS,GT MATSUSHITA |
84315-20040 |
US $78.62 |
||
|
84330
|
84330
84332-20180-03 Switch Assy, Hazard Warning Signal[08.1985 - 08.1987] AT160,ST16# GRAY,SHADOW GRAY,TRIM1# |
84332-20180-03 |
US $69.60 |
||
|
84330
|
84330
84332-20180-04 Switch Assy, Hazard Warning Signal[08.1985 - 08.1987] AT160,ST16# DEEP BLUE,DEEP BLUE,TRIM8# |
84332-20180-04 |
US $69.60 |
||
|
84330B
|
84330B
84999-10160 Bulb, Hazard Warning Signal Switch[08.1985 - 08.1987] AT160,ST16# １２Ｖ １．８Ｗ,12V 1.8W |
84999-10160 |
US $5.53 |
||
|
84335
|
84335
84330-95400 Switch Assy, Parking Lamp[08.1985 - 08.1987] AT160,ST16# |
84330-95400 |
US $53.29 |
||
|
84450
|
84450
84450-14060
Switch Assy, Ignition Or Starter
[08.1985 - 08.1987] AT160,ST16#..EXS,GT W/*EL |
84450-14060 |
— | ||
| replacements | |||||
|
84450
|
84450
84052-22030
Switch Assy, Un-Lock Warning
[08.1985 - 08.1987] AT160,ST16#..EXS,GT W/*EL |
84052-22030 |
— | ||
|
84450
|
84450
84450-27100
Switch Assy, Ignition Or Starter
[08.1985 - 08.1987] AT160,ST16#..EXS,GT W/*EL |
84450-27100 |
— | ||
|
84450
|
84450
84450-20170 Switch Assy, Ignition Or Starter[08.1985 - 08.1987] AT160,ST16# |
84450-20170 |
US $58.39 |
||
| replacement | |||||
|
84450
|
84450
84450-27100
Switch Assy, Ignition Or Starter
[08.1985 - 08.1987] AT160,ST16# |
84450-27100 |
— | ||
|
84650
|
84650
84652-20820 Switch Assy, Windshield Wiper[08.1985 - 08.1987] AT160,ST16#..GT,GX TOKAIRIKA |
84652-20820 |
US $109.20 |
||
|
84650
|
84650
84652-20830 Switch Assy, Windshield Wiper[08.1985 - 08.1987] ST16#..EXS,GT TOKAIRIKA,W/*VIW,W/O *AD |
84652-20830 |
US $141.23 |
||
|
84650
|
84650
84652-2B030 Switch Assy, Windshield Wiper[08.1985 - 08.1987] AT160,ST16#..GT,GX MATSUSHITA |
84652-2B030 |
US $109.20 |
||
|
84650
|
84650
84652-2B040 Switch Assy, Windshield Wiper[08.1985 - 08.1987] ST16#..EXS,GT MATSUSHITA,W/*VIW |
84652-2B040 |
US $141.23 |
||
|
84650
|
84650
84652-2B270
Switch Assy, Windshield Wiper
[08.1985 - 08.1987] ST16#..EXS,GT TOKAIRIKA,W/*AD |
84652-2B270 |
— | ||
|
84660C
|
84660C
84660-20090 Switch, Cooler[08.1985 - 05.1986] AT160,ST16# |
84660-20090 |
US $71.34 |
||
| replacement | |||||
|
84660C
|
84660C
84660-20120 Switch Assy, Cooler Control[08.1985 - 05.1986] AT160,ST16# |
84660-20120 |
US $71.34 |
||
|
84660D
|
84660D
88607-20060
Bulb(For Cooler Switch)
[08.1985 - 05.1986] AT160,ST16# １４Ｖ ０．０８Ａ,12V 1.12W |
88607-20060 |
— | ||
|
84730
|
84730
84732-20160 Switch Assy, Heater Blower[08.1985 - 05.1986] AT160,ST16# |
84732-20160 |
US $62.17 |
||
| replacement | |||||
|
84730
|
84730
84732-20340 Switch Assy, Heater Blower[08.1985 - 05.1986] AT160,ST16# |
84732-20340 |
US $68.43 |
||
|
84730
|
84730
84732-20170 Switch Assy, Heater Blower[08.1985 - 05.1986] AT160,ST16# W/*AAC |
84732-20170 |
US $62.17 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[08.1985 - 05.1986] AT160,ST16# １４Ｖ １．４Ｗ,12V 1.4W |
90981-11014 |
from US $1.92 |
||
|
84790
|
84790
84790-20190-03 Switch Assy, Rear Window Defogger[08.1985 - 08.1987] AT160,ST162..5F GRAY,SHADOW GRAY,TRIM1# |
84790-20190-03 |
US $54.31 |
||
|
84790
|
84790
84790-20190-04 Switch Assy, Rear Window Defogger[08.1985 - 08.1987] AT160,ST162..5F BLUE,DEEP BLUE,TRIM8# |
84790-20190-04 |
US $54.31 |
||
|
84790B
|
84790B
84999-10160 Bulb, Hazard Warning Signal Switch[08.1985 - 08.1987] AT160,ST162..5F １２Ｖ １．８Ｗ,12V 1.8W |
84999-10160 |
US $5.53 |
||
|
85500
|
85500
85500-20200 Lighter Assy, Cigarette[08.1985 - 08.1987] AT160,ST16# |
85500-20200 |
US $81.54 |
||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[08.1985 - 08.1987] AT160,ST16# １４Ｖ １．４Ｗ,12V 1.4W |
90981-11014 |
from US $1.92 |
||
|
85533
|
85533
85533-20010
Lens, Cigarette Lighter Indicator
[08.1985 - 08.1987] AT160,ST16# |
85533-20010 |
— | ||
|
86640
|
86640
86640-20090
Chime, Speed Warning
[08.1985 - 08.1987] AT160,ST16# |
86640-20090 |
— | ||
|
86640
|
86640
86640-20120
Chime, Speed Warning
[08.1985 - 08.1987] ST16#..EXS,GT W/*DS |
86640-20120 |
— | ||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $2.88 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
