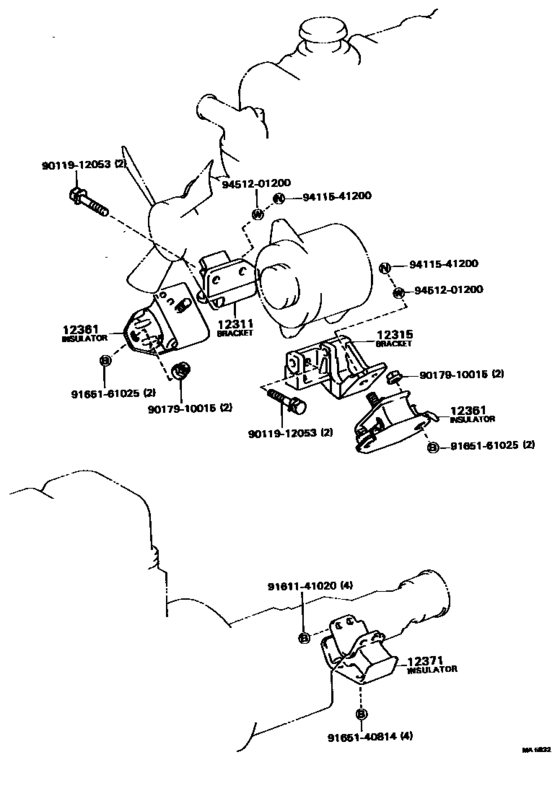

Mounting ([06.1982 - 12.1983] (8206-8312)12RM) Diagram Toyota CORONA FR
- Year
- 1982 - 1983
- Sales region
- Europe
- Frame
- RT140
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- From
- 01.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-31010
Bracket, Engine Mounting, Front No.1 Rh
[06.1982 - 12.1983] 12RM..RT140 |
12311-31010 |
— | ||
|
12315
|
12315
12315-31040
Bracket, Engine Mounting, Front No.1 Lh
[06.1982 - 12.1983] 12RM..RT140 |
12315-31040 |
— | ||
|
12361
|
12361
12361-31060 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [06.1982 - 12.1983] 12RM..RT140 RH |
12361-31060 |
US $56.35 |
||
|
12361
|
12361
12362-31011 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [06.1982 - 12.1983] 12RM..RT140 LH |
12362-31011 |
US $56.35 |
||
|
12371
|
12371
12371-34020 Insulator, Engine Mounting, Rear No.1[06.1982 - 12.1983] 12RM..RT140 |
12371-34020 |
US $44.99 |
||
|
9011912053
|
9011912053
90119-12053 New Genuine Part |
90119-12053 |
US $3.49 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.07 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.54 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.74 |
||
