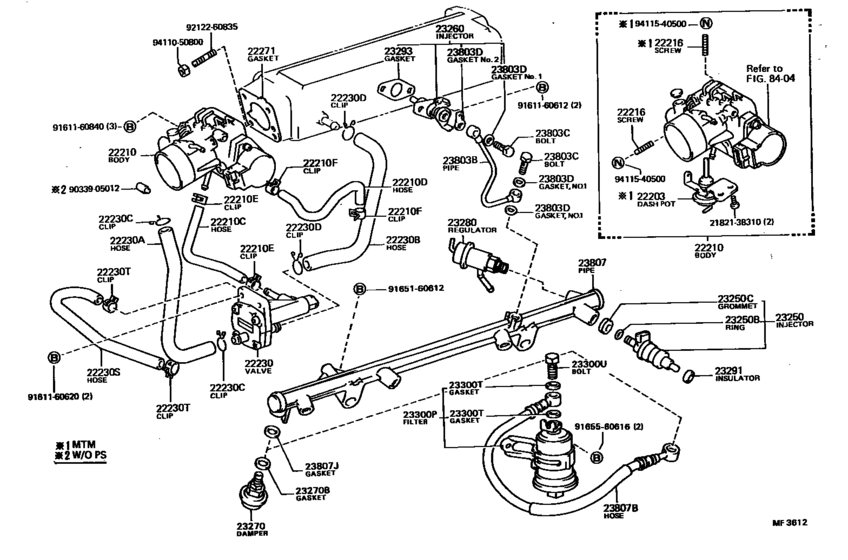

Fuel Injection System ([08.1985 - 12.1986] (8508-8612)22REC) Diagram Toyota CORONA FR
- Year
- 1984 - 1986
- Sales region
- Europe
- Frame
- RT142
- grade
- CSI
- body
- SED
- ENGINE
- 22REC
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1984
- To
- 12.1986
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22202-35050
Dash Pot Sub-Assy(For Throttle Body)
[08.1984 - 12.1986] 22REC..RT142..5F |
22202-35050 |
— | ||
|
22210
|
22210
22210-35050
Body Assy, Throttle
[08.1984 - 08.1985] 22REC..RT142..5F |
22210-35050 |
— | ||
|
22210
|
22210
22210-35130 Body Assy, ThrottleTHROTTLE [08.1985 - 12.1986] 22REC..RT142..5F |
22210-35130 |
US $681.41 |
||
|
22210C
|
22210C
16267-35010 Hose, Water By-Pass, No.1WATER BY-PASS, NO.1 [08.1984 - 12.1986] 22REC..RT142 |
16267-35010 |
US $10.24 |
||
|
22210D
|
22210D
16264-35011
Hose, Water By-Pass, No.2
[08.1984 - 02.1985] 22REC..RT142 |
16264-35011 |
— | ||
|
22210D
|
22210D
16264-35012 Hose, Water By-Pass, No.2WATER BY-PASS, NO.2 [02.1985 - 12.1986] 22REC..RT142 |
16264-35012 |
US $12.96 |
||
|
22210E
|
22210E
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 12.1986] 22REC..RT142 |
90467-13001 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1984 - 12.1986] 22REC..RT142 |
96135-51300 |
from US $1.92 |
||
|
22210F
|
22210F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 12.1986] 22REC..RT142 |
90467-13001 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[08.1984 - 12.1986] 22REC..RT142 |
96135-51300 |
from US $1.92 |
||
|
22216
|
22216
22216-74010
Screw, Dash Pot Adjusting
[08.1984 - 12.1986] 22REC..RT142 |
22216-74010 |
— | ||
|
22230
|
22230
22230-35010
Valve Assy, Auxiliary Air
[08.1984 - 12.1986] 22REC..RT142 |
22230-35010 |
— | ||
|
22230A
|
22230A
22231-35020
Hose, Auxiliary Air Valve, No.1
[08.1984 - 08.1985] 22REC..RT142..5F THROTTLE BODY SIDE |
22231-35020 |
— | ||
|
22230A
|
22230A
22233-35010 Hose, Auxiliary Air Valve, No.1AUXILIARY AIR VALVE, NO.1 [08.1985 - 12.1986] 22REC..RT142 |
22233-35010 |
US $23.26 |
||
|
22230A
|
22230A
22233-35020
Hose, Auxiliary Air Valve, No.1
[08.1984 - 08.1985] 22REC..RT142..5F AUXILIARY AIR VALVE SIDE |
22233-35020 |
— | ||
|
22230B
|
22230B
22234-35010 Hose, Auxiliary Air Valve, No.2AUXILIARY AIR VALVE, NO.2 [08.1985 - 12.1986] 22REC..RT142 |
22234-35010 |
US $27.97 |
||
|
22230B
|
22230B
22234-35020
Hose, Auxiliary Air Valve, No.2
[08.1984 - 08.1985] 22REC..RT142..5F |
22234-35020 |
— | ||
|
22230C
|
22230C
90467-19003 Clip Or Clamp(For Ventilation Hose)[08.1984 - 12.1986] 22REC..RT142 |
90467-19003 |
US $1.76 |
||
|
22230D
|
22230D
90467-19003 Clip Or Clamp(For Ventilation Hose)[08.1985 - 12.1986] 22REC..RT142 |
90467-19003 |
US $1.76 |
||
|
22230S
|
22230S
16281-35010 Hose, Water By-Pass(For Auxiliary Air Valve)WATER BY-PASS(FOR AUXILIARY AIR VALVE) [08.1984 - 12.1986] 22REC..RT142 |
16281-35010 |
US $18.09 |
||
|
22230T
|
22230T
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 12.1986] 22REC..RT142 |
90467-13001 |
— | ||
| replacement | |||||
|
22230T
|
22230T
96135-51300 Clamp, Hose[08.1984 - 12.1986] 22REC..RT142 |
96135-51300 |
from US $1.92 |
||
|
22271
|
22271
22271-35010
Gasket, Throttle Body
[08.1984 - 12.1986] 22REC..RT142 |
22271-35010 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-35011 Gasket, Throttle Body[08.1984 - 12.1986] 22REC..RT142 |
22271-35011 |
US $4.89 |
||
|
23250
|
23250
23209-45011
Injector Assy, Fuel
[08.1984 - 12.1986] 22REC..RT142 |
23209-45011 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-43010 Injector Assy, FuelFUEL [08.1984 - 12.1986] 22REC..RT142 |
23209-43010 |
US $260.10 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1984 - 12.1986] 22REC..RT142 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1984 - 12.1986] 22REC..RT142 |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-39055
Injector Assy, Cold Start Fuel
[08.1984 - 12.1986] 22REC..RT142 |
23260-39055 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-39056
Injector Assy, Cold Start Fuel
[08.1984 - 12.1986] 22REC..RT142 |
23260-39056 |
— | ||
|
23270
|
23270
23270-35010
Damper Assy, Fuel Pressure Pulsation
[12.1984 - 12.1986] 22REC..RT142 |
23270-35010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-42010 Damper Assy, Fuel Pressure Pulsation[12.1984 - 12.1986] 22REC..RT142 |
23270-42010 |
US $94.72 |
||
|
23270
|
23270
23270-70010 Damper Assy, Fuel Pressure Pulsation[08.1984 - 12.1984] 22REC..RT142 |
23270-70010 |
US $94.72 |
||
|
23270B
|
23270B
90430-17002 Gasket(For Pulsation Damper Hose)[08.1984 - 12.1986] 22REC..RT142 |
90430-17002 |
US $3.36 |
||
|
23280
|
23280
23280-35010
Regulator Assy, Fuel Pressure
[08.1984 - 10.1984] 22REC..RT142 |
23280-35010 |
— | ||
|
23280
|
23280
23280-35011
Regulator Assy, Fuel Pressure
[10.1984 - 08.1985] 22REC..RT142 |
23280-35011 |
— | ||
| replacement | |||||
|
23280
|
23280
23280-35020
Regulator Assy, Fuel Pressure
[10.1984 - 08.1985] 22REC..RT142 |
23280-35020 |
— | ||
|
23280
|
23280
23280-35020
Regulator Assy, Fuel Pressure
[08.1985 - 12.1986] 22REC..RT142 |
23280-35020 |
— | ||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1984 - 12.1986] 22REC..RT142 |
23291-41010 |
from US $2.77 |
||
|
23293
|
23293
23293-35010
Gasket, Cold Start Injector
[08.1984 - 12.1986] 22REC..RT142 |
23293-35010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-35020 Gasket, Cold Start Injector[08.1984 - 12.1986] 22REC..RT142 |
23293-35020 |
from US $4.89 |
||
|
23300P
|
23300P
23300-39055 Filter, Fuel(For Efi)FUEL(FOR EFI) [08.1984 - 12.1986] 22REC..RT142 |
23300-39055 |
US $106.29 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[08.1984 - 12.1986] 22REC..RT142 |
90430-12005 |
from US $0.76 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1984 - 12.1986] 22REC..RT142 |
90401-12097 |
from US $3.08 |
||
|
23803B
|
23803B
23801-35010
Pipe Sub-Assy, Fuel, No.3
[08.1984 - 12.1986] 22REC..RT142 |
23801-35010 |
— | ||
|
23803C
|
23803C
90401-08003 Bolt, Union[08.1984 - 12.1986] 22REC..RT142 |
90401-08003 |
US $2.24 |
||
|
23803D
|
23803D
90430-08005 Gasket[08.1984 - 12.1986] 22REC..RT142 NO.1 |
90430-08005 |
US $2.24 |
||
|
23803D
|
23803D
90430-08007 Gasket(For Fuel Pipe No.2)[08.1984 - 12.1986] 22REC..RT142 NO.2 |
90430-08007 |
US $2.48 |
||
|
23807
|
23807
23807-35010 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [08.1984 - 12.1986] 22REC..RT142 |
23807-35010 |
US $183.46 |
||
| replacement | |||||
|
23807
|
23807
23807-35020 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [08.1984 - 12.1986] 22REC..RT142 |
23807-35020 |
US $182 |
||
|
23807B
|
23807B
90923-01325 Hose, Fuel Delivery PipeFUEL DELIVERY PIPE [08.1984 - 12.1986] 22REC..RT142 |
90923-01325 |
US $208.21 |
||
|
23807J
|
23807J
90430-14002 Gasket(For Pulsation Damper Hose)[08.1984 - 12.1986] 22REC..RT142 |
90430-14002 |
US $2.88 |
||
|
2182138310
|
2182138310
21821-38310 Screw, 2Nd Throttle Valve Set |
21821-38310 |
from US $1.56 |
||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.08 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.44 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
from US $1.70 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9165560616
|
9165560616
91655-60616
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91655-60616 |
— | ||
| replacement | |||||
|
9165560616
|
9165560616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9212260835
|
9212260835
92122-60835 New Genuine Part |
92122-60835 |
US $1.22 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
