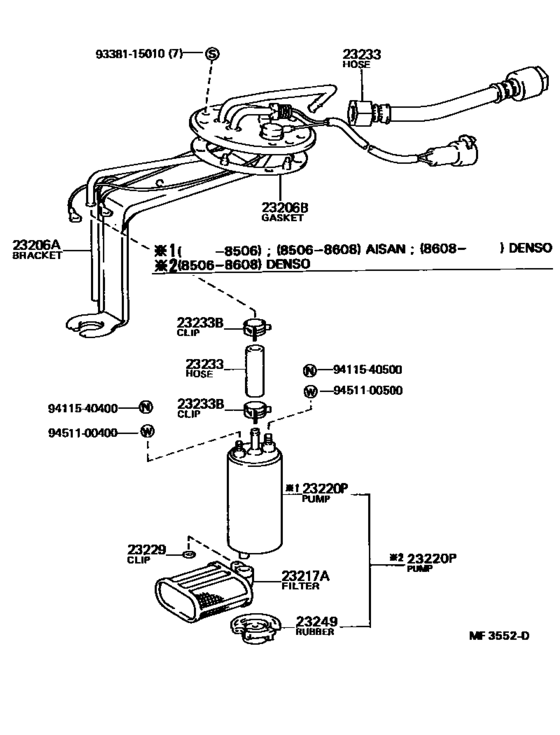

Fuel Injection System ([08.1984 - 12.1986] (8408-8612)22REC) Diagram Toyota CORONA FR
- Year
- 1984 - 1986
- Sales region
- Europe
- Frame
- RT142
- grade
- CSI
- body
- SED
- ENGINE
- 22REC
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1984
- To
- 12.1986
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23206A
|
23206A
23206-16060
Bracket, Fuel Pump
[08.1985 - 12.1986] 22REC..RT142..SED |
23206-16060 |
— | ||
|
23206A
|
23206A
23206-35060
Bracket, Fuel Pump
[08.1984 - 08.1985] 22REC..RT142 |
23206-35060 |
— | ||
|
23206B
|
23206B
77169-14010 Gasket, Fuel Pump Bracket[08.1984 - 12.1986] 22REC..RT142 |
77169-14010 |
from US $3.68 |
||
| replacement | |||||
|
23206B
|
23206B
77169140101
Gasket, Fuel Pump Bracket
[08.1984 - 12.1986] 22REC..RT142 |
77169140101 |
— | ||
|
23217A
|
23217A
23217-16030 Filter, Fuel Pump[08.1984 - 12.1986] 22REC..RT142 NIPPONDENSO |
23217-16030 |
US $9.44 |
||
|
23217A
|
23217A
23217-16042 Filter, Fuel Pump[08.1984 - 10.1985] 22REC..RT142 AISAN |
23217-16042 |
US $11.18 |
||
|
23217A
|
23217A
23217-16043 Filter, Fuel Pump[10.1985 - 12.1986] 22REC..RT142 AISAN |
23217-16043 |
US $8 |
||
|
23220P
|
23220P
23220-16070 Pump Assy, Fuel[08.1984 - 06.1985] 22REC..RT142 NIPPONDENSO |
23220-16070 |
US $534.80 |
||
|
23220P
|
23220P
23220-16080
Pump Assy, Fuel
[08.1984 - 09.1985] 22REC..RT142 AISAN |
23220-16080 |
— | ||
| replacements | |||||
|
23220P
|
23220P
23220-16430 Pump Assy, FuelFUEL [08.1984 - 09.1985] 22REC..RT142 AISAN |
23220-16430 |
US $501.45 |
||
|
23220P
|
23220P
23217-16390 Filter, Fuel Pump[08.1984 - 09.1985] 22REC..RT142 AISAN |
23217-16390 |
US $11.53 |
||
|
23220P
|
23220P
23217-16043 Filter, Fuel Pump[08.1984 - 09.1985] 22REC..RT142 AISAN |
23217-16043 |
US $8 |
||
|
23220P
|
23220P
23220-16190 Pump Assy, Fuel[08.1984 - 09.1985] 22REC..RT142 AISAN |
23220-16190 |
US $534.80 |
||
|
23220P
|
23220P
23249-43080 Rubber, Cushion(For Fuel Pump)[08.1984 - 09.1985] 22REC..RT142 AISAN |
23249-43080 |
from US $23.41 |
||
|
23220P
|
23220P
23220-16082 Pump Assy, Fuel[09.1985 - 02.1986] 22REC..RT142 AISAN |
23220-16082 |
US $515.42 |
||
| replacement | |||||
|
23220P
|
23220P
23220-16430 Pump Assy, FuelFUEL [09.1985 - 02.1986] 22REC..RT142 AISAN |
23220-16430 |
US $501.45 |
||
|
23220P
|
23220P
23220-16083 Pump Assy, Fuel[02.1986 - 08.1986] 22REC..RT142 AISAN |
23220-16083 |
US $567.84 |
||
| replacement | |||||
|
23220P
|
23220P
23220-16430 Pump Assy, FuelFUEL [02.1986 - 08.1986] 22REC..RT142 AISAN |
23220-16430 |
US $501.45 |
||
|
23220P
|
23220P
23220-16084
Pump Assy, Fuel
[08.1986 - 12.1986] 22REC..RT142 AISAN |
23220-16084 |
— | ||
| replacement | |||||
|
23220P
|
23220P
23220-16430 Pump Assy, FuelFUEL [08.1986 - 12.1986] 22REC..RT142 AISAN |
23220-16430 |
US $501.45 |
||
|
23220P
|
23220P
23220-16190 Pump Assy, Fuel[08.1986 - 12.1986] 22REC..RT142 NIPPONDENSO |
23220-16190 |
US $534.80 |
||
|
23220P
|
23220P
23220-19015
Pump Assy, Fuel
[06.1985 - 08.1986] 22REC..RT142 NIPPONDENSO |
23220-19015 |
— | ||
| replacements | |||||
|
23220P
|
23220P
23220-16190 Pump Assy, Fuel[06.1985 - 08.1986] 22REC..RT142 NIPPONDENSO |
23220-16190 |
US $534.80 |
||
|
23220P
|
23220P
23249-43080 Rubber, Cushion(For Fuel Pump)[06.1985 - 08.1986] 22REC..RT142 NIPPONDENSO |
23249-43080 |
from US $23.41 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[08.1984 - 12.1986] 22REC..RT142 |
23229-16010 |
from US $0.84 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[08.1984 - 12.1986] 22REC..RT142 |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-16010 Hose, Fuel Pump[08.1984 - 12.1986] 22REC..RT142 PUMP TO BRACKET |
23239-16010 |
from US $1.87 |
||
|
23233
|
23233
90923-01289
Hose, Fuel Pump
[08.1985 - 12.1986] 22REC..RT142..SED BRACKET TO FUEL PIPE |
90923-01289 |
— | ||
|
23233
|
23233
90923-01292
Hose, Fuel Pump
[08.1984 - 08.1985] 22REC..RT142 BRACKET TO FUEL PIPE |
90923-01292 |
— | ||
|
23233B
|
23233B
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 12.1986] 22REC..RT142 |
90467-13001 |
— | ||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[08.1984 - 12.1986] 22REC..RT142 |
96135-51300 |
from US $1.92 |
||
|
23249
|
23249
23249-16010
Rubber, Cushion(For Fuel Pump)
[08.1984 - 06.1985] 22REC..RT142 |
23249-16010 |
— | ||
|
23249
|
23249
23249-43080 Rubber, Cushion(For Fuel Pump)[06.1985 - 09.1985] 22REC..RT142 NIPPONDENSO |
23249-43080 |
from US $23.41 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $0.96 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
