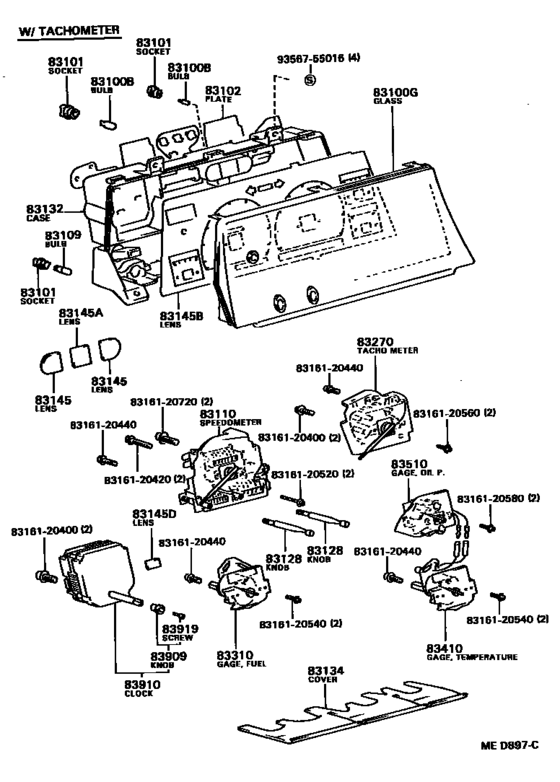

Meter ([08.1985 - 12.1986] W/TACHOMETER (8201-8508)RHD..DLX,GL ; (8508-8612)SED..CSI,CSX ,CXI) Diagram Toyota CORONA FR
- Year
- 1984 - 1986
- Sales region
- Europe
- Frame
- RT142
- grade
- CSI
- body
- SED
- ENGINE
- 22REC
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1984
- To
- 12.1986
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 12V 1.2W W/O SOCKET,12V 1.4W |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-2B140 Glass, Combination Meter[01.1982 - 12.1986] RT142,TT14#..SED..RHD..(CSI,CXI,DLX,GL) W/TACHOMETER |
83138-2B140 |
US $145.60 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 BULB:12V 1.4W(OD=11.3) |
83101-14040 |
US $3.02 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[01.1982 - 07.1999] CT14#,RT142,ST141,TT14#,YT140..RHD BULB:12V 3.4W(OD=18) |
83101-20040 |
from US $1.68 |
||
|
83101
|
83101
83101-20070 Socket Sub-Assy, Combination Meter Bulb[08.1985 - 07.1999] CT141,RT142,YT140..SED..RHD BULB:12V 3.4W(OD=18) GREEN CAP |
83101-20070 |
US $7.84 |
||
|
83102
|
83102
83247-2B160 Plate Sub-Assy, Combination Meter Circuit, No.1[04.1983 - 08.1985] RT142,ST141..CSI,CSX,CXI |
83247-2B160 |
US $101.92 |
||
|
83109
|
83109
83109-24030 Bulb, Combination Meter, No.1[08.1985 - 12.1986] RT142..SED 12V 3.4W W(GREEN CAP),GREEN CAP BULB,12V 3.4W; ST141..CSX 12V 3.4W W(GREEN CAP),GREEN CAP BULB,12V 3.4W |
83109-24030 |
US $3.14 |
||
|
83110
|
83110
83110-2B100
Speedometer Assy
[04.1983 - 08.1985] RT142,ST141..CSI,CSX,CXI |
83110-2B100 |
— | ||
|
83110
|
83110
83110-2B590 Speedometer Assy[08.1985 - 12.1986] RT142..SED; ST141..CSX |
83110-2B590 |
US $355.26 |
||
|
83128
|
83128
83128-20720 Knob, Trip Counter[01.1982 - 12.1986] RT142,TT14#..SED..RHD..(CSI,CXI,DLX,GL) W/TACHOMETER |
83128-20720 |
US $8.88 |
||
|
83132
|
83132
83132-2B280
Case, Combination Meter
[08.1984 - 08.1985] RT142 |
83132-2B280 |
— | ||
|
83132
|
83132
83132-2B340
Case, Combination Meter
[08.1985 - 12.1986] RT142..SED |
83132-2B340 |
— | ||
|
83134
|
83134
83134-2B220 Cover, Combination Meter, No.1[04.1983 - 08.1985] RT142,ST141..CSI,CSX,CXI |
83134-2B220 |
US $32.91 |
||
|
83145
|
83145
83145-2B060 Lens, Meter, No.1[01.1982 - 07.1999] CT14#,RT142,TT14#,YT140..RHD TURN |
83145-2B060 |
US $4.22 |
||
|
83145A
|
83145A
83145-2B080 Lens, Meter, No.2[01.1982 - 07.1999] CT14#,RT142,TT14#,YT140..RHD BEAM |
83145-2B080 |
US $4.22 |
||
|
83145B
|
83145B
83131-2B040
Lens, Meter, No.3
[08.1985 - 12.1986] RT142..SED |
83131-2B040 |
— | ||
|
83145B
|
83145B
83145-2B420
Lens, Meter, No.3
[08.1984 - 08.1985] RT142 W/TACHOMETER |
83145-2B420 |
— | ||
|
83145D
|
83145D
83145-2B340 Lens, Meter, No.5[01.1982 - 12.1986] CT140,RT142,TT14#..RHD W/CLOCK |
83145-2B340 |
US $8.88 |
||
|
83270
|
83270
83242-2B020
Tachometer Assy, Engine
[01.1982 - 08.1985] RT142,TT14#..SED..RHD..(CSI,CXI,DLX,GL) |
83242-2B020 |
— | ||
|
83270
|
83270
83242-2B060
Tachometer Assy, Engine
[08.1985 - 12.1986] RT142..SED; ST141..CSX |
83242-2B060 |
— | ||
|
83310
|
83310
83243-20340 Gage Assy, Fuel Receiver[08.1985 - 12.1986] RT142..SED; ST141..CSX |
83243-20340 |
US $183.46 |
||
|
83310
|
83310
83243-2B100 Gage Assy, Fuel Receiver[01.1982 - 08.1985] RT142,TT14#..SED..RHD..(CSI,CXI,DLX,GL) W/TACHOMETER |
83243-2B100 |
US $116.48 |
||
|
83410
|
83410
83244-20220 Gage Assy, Water Temperature Receiver[08.1985 - 12.1986] RT142..SED; ST141..CSX |
83244-20220 |
US $58.68 |
||
|
83410
|
83410
83244-2B160 Gage Assy, Water Temperature Receiver[04.1983 - 08.1985] RT142,ST141..CSI,CSX,CXI W/TACHOMETER |
83244-2B160 |
US $109.20 |
||
|
83510
|
83510
83246-20100 Gage Assy, Oil Pressure Receiver[08.1985 - 07.1999] RT142..SED; ST141..CSX |
83246-20100 |
US $44.55 |
||
|
83510
|
83510
83246-2B020 Gage Assy, Oil Pressure Receiver[04.1983 - 08.1985] RT142,ST141..CSI,CSX,CXI |
83246-2B020 |
US $52.56 |
||
|
83909
|
83909
83909-12230
Knob, Clock
[01.1982 - 07.1999] RT14#,TT14#..SED..(CSI,CXI,DLX,GL) DIGITAL |
83909-12230 |
— | ||
|
83910
|
83910
83910-20310
Clock Assy
[01.1982 - 12.1986] RT14#,TT14#..SED..(CSI,CXI,DLX,GL) DIGITAL |
83910-20310 |
— | ||
|
83919
|
83919
83919-12230 Screw, Clock[01.1982 - 12.1986] RT14#,TT14#..SED..(CSI,CXI,DLX,GL) DIGITAL |
83919-12230 |
US $1.92 |
||
|
8316120400
|
8316120400
83161-20400
Case, Combination Meter Mirror, No.1
|
83161-20400 |
— | ||
|
8316120420
|
8316120420
83161-20420 Case, Combination Meter Mirror, No.1 |
83161-20420 |
US $1.02 |
||
|
8316120440
|
8316120440
83161-20440
Case, Combination Meter Mirror, No.1
|
83161-20440 |
— | ||
|
8316120520
|
8316120520
83161-20520 Case, Combination Meter Mirror, No.1 |
83161-20520 |
US $1.02 |
||
|
8316120540
|
8316120540
83161-20540 Case, Combination Meter Mirror, No.1 |
83161-20540 |
US $1.02 |
||
|
8316120560
|
8316120560
83161-20560 Case, Combination Meter Mirror, No.1 |
83161-20560 |
US $1.02 |
||
|
8316120580
|
8316120580
83161-20580 Case, Combination Meter Mirror, No.1 |
83161-20580 |
US $1.02 |
||
|
8316120720
|
8316120720
83161-20720 Case, Combination Meter Mirror, No.1 |
83161-20720 |
US $1.46 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
