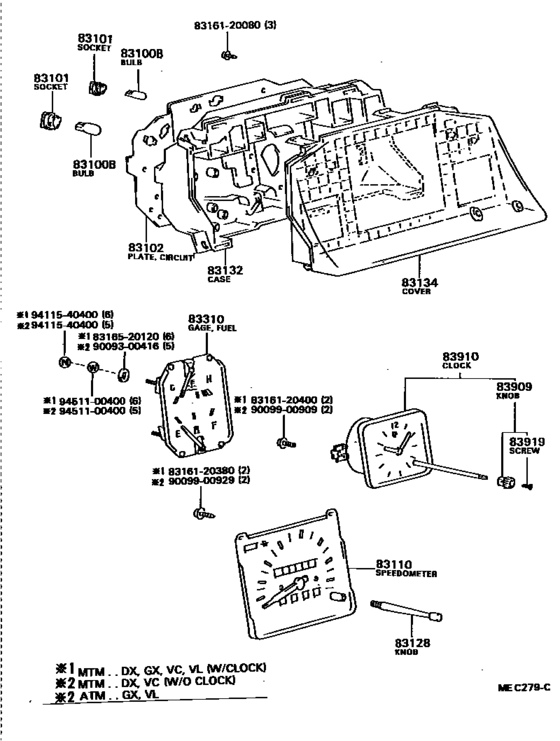

Meter ([05.1982 - ] (8205- )DX,GX,VC,VL) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1989
- Sales region
- Japan
- Frame
- AL20
- grade
- VC
- body
- SED
- ENGINE
- 2AU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 10.1989
- Gear Shift Type
- 4F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-28010
Bulb, Combination Meter, No.1
[09.1983 - 08.1984] AL2#..3FC..(GX,VL) １２Ｖ ３．４Ｗ グリーン キャップ付き,12V 3.4W,W/GREEN CAP; AL2#..DX,VC １２Ｖ ３．４Ｗ グリーン キャップ付き,12V 3.4W,W/GREEN CAP |
83109-28010 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1982 - 08.1984] AL2#..VC,VL,VS １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1982 - 10.1989] AL2# １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1982 - 10.1989] AL2# １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1984 - 10.1989] AL2# 12V 3.4W,DENSO |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1982 - 10.1989] AL2# 12V 1.4W |
83101-14040 |
US $2.93 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[05.1982 - 08.1984] AL2#..4F 12V 3.4W,W/CLOCK |
83101-20040 |
from US $1.58 |
||
|
83102
|
83102
83247-16320
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1982 - 08.1984] AL2#..4F W/CLOCK |
83247-16320 |
— | ||
|
83102
|
83102
83247-16360 Plate Sub-Assy, Combination Meter Circuit, No.1[08.1984 - 10.1989] AL25..6F..(GX,VL); AL20,21..DX,GX,VC,VL YAZAKI,W/CLOCK |
83247-16360 |
US $53.14 |
||
|
83102
|
83102
83247-16670
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1984 - 10.1989] AL20,21..DX,GX,VC,VL DENSO,W/CLOCK |
83247-16670 |
— | ||
|
83102
|
83102
83247-16690
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1984 - 10.1989] AL20..DX,VC |
83247-16690 |
— | ||
| replacement | |||||
|
83102
|
83102
83247-16710
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1984 - 10.1989] AL20..DX,VC |
83247-16710 |
— | ||
|
83102
|
83102
83247-16710
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1982 - 08.1984] AL2#..DX; AL2#..VC |
83247-16710 |
— | ||
|
83110
|
83110
83110-16310 Speedometer Assy[05.1982 - 08.1984] AL2#..DX,VC |
83110-16310 |
US $356.72 |
||
|
83110
|
83110
83110-16500 Speedometer Assy[05.1982 - 08.1984] AL2#..4F W/CLOCK |
83110-16500 |
US $393.12 |
||
|
83110
|
83110
83110-16631 Speedometer Assy[08.1984 - 10.1989] AL20,21..DX,GX,VC,VL YAZAKI,W/CLOCK |
83110-16631 |
US $358.18 |
||
|
83110
|
83110
83110-16640 Speedometer Assy[08.1984 - 10.1989] AL20,21..DX,GX,VC,VL DENSO,W/CLOCK |
83110-16640 |
US $337.79 |
||
|
83128
|
83128
83128-16080 Knob, Trip Counter[08.1984 - 10.1989] AL2#..DX,GX,VC,VL YAZAKI |
83128-16080 |
US $8.88 |
||
|
83128
|
83128
83128-16110
Knob, Trip Counter
[05.1982 - 08.1984] AL2#..3FC..(GX,VL); AL2#..DX,VC |
83128-16110 |
— | ||
|
83128
|
83128
83128-20710 Knob, Trip Counter[05.1982 - 08.1984] AL2#..4F W/CLOCK |
83128-20710 |
US $8.74 |
||
|
83132
|
83132
83132-16120 Case, Combination Meter[05.1982 - 08.1984] AL2#..4F W/CLOCK |
83132-16120 |
US $63.48 |
||
|
83132
|
83132
83132-16550
Case, Combination Meter
[05.1982 - 09.1983] AL2#..3FC..(GX,VL); AL2#..DX,VC |
83132-16550 |
— | ||
|
83132
|
83132
83132-16690
Case, Combination Meter
[09.1983 - 08.1984] AL2#..3FC..(GX,VL); AL2#..DX,VC |
83132-16690 |
— | ||
|
83134
|
83134
83133-16530
Cover, Combination Meter, No.1
[05.1982 - 08.1984] AL2#..DX,VC |
83133-16530 |
— | ||
|
83134
|
83134
83133-16690
Cover, Combination Meter, No.1
[08.1984 - 10.1989] AL20,21..DX,GX,VC,VL DENSO,W/CLOCK |
83133-16690 |
— | ||
|
83134
|
83134
83133-16710
Cover, Combination Meter, No.1
[08.1984 - 10.1989] AL20..DX,VC |
83133-16710 |
— | ||
|
83134
|
83134
83134-16100 Cover, Combination Meter, No.1[05.1982 - 08.1984] AL2#..4F W/CLOCK |
83134-16100 |
US $97.55 |
||
| replacement | |||||
|
83134
|
83134
83134-16101 Cover, Combination Meter, No.1[05.1982 - 08.1984] AL2#..4F W/CLOCK |
83134-16101 |
US $96.10 |
||
|
83134
|
83134
83134-16180 Cover, Combination Meter, No.1[08.1984 - 10.1989] AL20,21..DX,GX,VC,VL YAZAKI,W/CLOCK |
83134-16180 |
US $113.57 |
||
|
83310
|
83310
83243-16080 Gage Assy, Fuel Receiver[05.1982 - 08.1984] AL2#..4F W/CLOCK |
83243-16080 |
US $74.26 |
||
|
83310
|
83310
83243-16390 Gage Assy, Fuel Receiver[05.1982 - 08.1984] AL2#..3FC..(GX,VL); AL2#..DX,VC |
83243-16390 |
US $74.26 |
||
|
83909
|
83909
83909-14012
Knob, Clock
[05.1982 - 10.1989] AL2#..DX,GX,VC,VL |
83909-14012 |
— | ||
|
83910
|
83910
83910-16060 Clock Assy[05.1982 - 10.1989] AL2#..DX,GX,VC,VL |
83910-16060 |
US $310.13 |
||
|
83919
|
83919
83919-14012
Screw, Thermometer
[05.1982 - 10.1989] AL2#..DX,GX,VC,VL |
83919-14012 |
— | ||
|
8316120080
|
8316120080
83161-20080
Case, Combination Meter Mirror, No.1
|
83161-20080 |
— | ||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316120400
|
8316120400
83161-20400
Case, Combination Meter Mirror, No.1
|
83161-20400 |
— | ||
|
8316520120
|
8316520120
83165-20120
Mirror, Combination Meter, No.2
|
83165-20120 |
— | ||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
