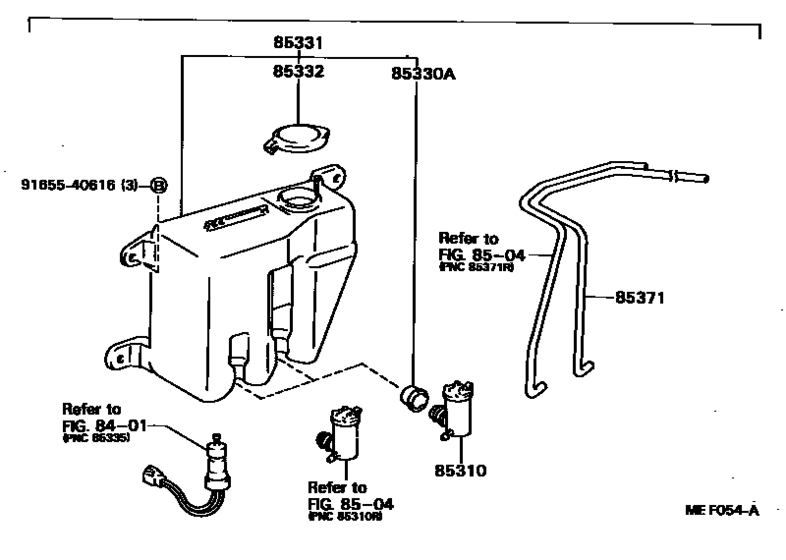

Windshield Washer ([08.1984 - ] (8408- )MTM..SX,VS) Diagram Toyota CORSA/ TERCEL
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- From
- 08.1984
- To
- 05.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[05.1982 - 10.1989] AL2# |
85310-22080 |
from US $49.97 |
||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[05.1982 - 10.1989] AL2# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[05.1982 - 10.1989] AL2# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.1982 - 10.1989] AL2# |
90068-32002 |
US $7.46 |
||
|
85331
|
85331
85331-16020
Jar Sub-Assy, Windshield Washer
[05.1982 - 08.1984] AL21..(3DS,5DS)..(EX,SX,VE,VS) |
85331-16020 |
— | ||
|
85331
|
85331
85331-16220
Jar Sub-Assy, Windshield Washer
[08.1984 - 05.1986] AL21..3ASU |
85331-16220 |
— | ||
|
85332
|
85332
85332-12320 Cap Assy, Windshield Washer[08.1984 - 05.1986] AL20,21..3DS,5DS W/RR WIPER |
85332-12320 |
US $2.10 |
||
|
85332
|
85332
85332-16010
Cap Assy, Windshield Washer
[05.1982 - 08.1984] AL2# |
85332-16010 |
— | ||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[05.1982 - 10.1989] AL2# ＊Ｈ，Ｌ＝９５０ |
90446-06013 |
US $0.70 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
