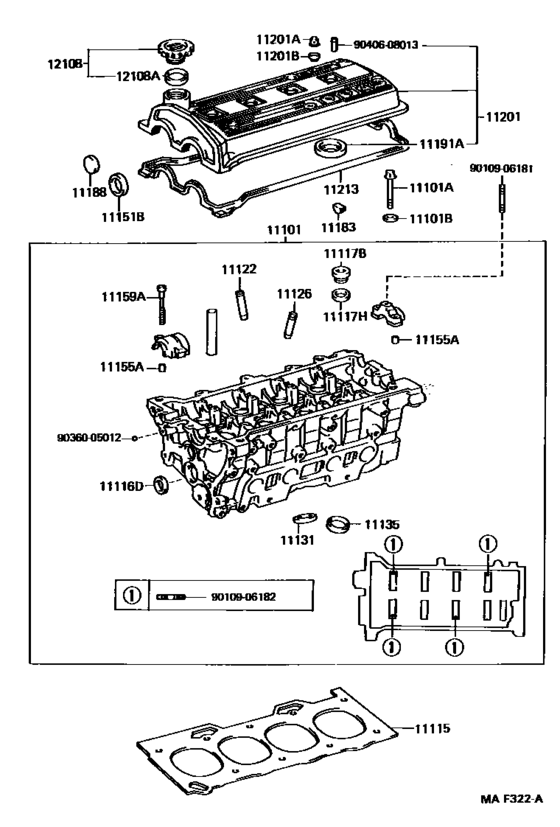

Cylinder Head ([09.1990 - ] (9009- )4EFE,5EF#) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-19335 Head Sub-Assy, Cylinder[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
11101-19335 |
US $1,514.24 |
||
| replacements | |||||
|
11101
|
11101
12282-11022 Hanger, Engine, No.2[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
12282-11022 |
US $19.36 |
||
|
11101
|
11101
11101-19436
Head Sub-Assy, Cylinder
[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
11101-19436 |
— | ||
|
11101
|
11101
12282-11062 Hanger, Engine, No.2[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
12282-11062 |
US $16.16 |
||
|
11101A
|
11101A
90910-02100 Bolt(For Cylinder Head Set)[09.1990 - 09.1994] 4EFE,5EF#..EL4# INTAKE SIDE |
90910-02100 |
from US $3.47 |
||
|
11101A
|
11101A
90910-02101 Bolt(For Cylinder Head Set)[09.1990 - 09.1994] 4EFE,5EF#..EL4# EXHAUST SIDE |
90910-02101 |
from US $4.08 |
||
|
11101B
|
11101B
90201-09024 Washer, Plate(For Cylinder Head Set)[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
90201-09024 |
from US $1.09 |
||
|
11115
|
11115
11115-11070
Gasket, Cylinder Head
[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
11115-11070 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-11071 Gasket, Cylinder Head[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
11115-11071 |
from US $50.21 |
||
|
11116D
|
11116D
96411-42800 Plug, Tight, No.1[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
96411-42800 |
from US $2.94 |
||
|
11117B
|
11117B
90341-20002 Plug, W/head Taper Screw, No.1[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
90341-20002 |
from US $2.88 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
90430-20004 |
from US $0.99 |
||
|
11122
|
11122
11122-15030 Bush, Intake Valve Guide[09.1990 - 09.1994] 4EFE,5EF#..EL4# ＳＴＤ |
11122-15030 |
from US $9.79 |
||
|
11122
|
11122
11123-15030 Bush, Intake Valve Guide[09.1990 - 09.1994] 4EFE,5EF#..EL4# Ｏ／Ｓ ０．０５ |
11123-15030 |
US $11.07 |
||
|
11126
|
11126
11122-10040 Bush, Intake Valve Guide[09.1990 - 09.1994] 4EFE,5EF#..EL4# ＳＴＤ |
11122-10040 |
US $10.83 |
||
|
11126
|
11126
11123-10040 Bush, Intake Valve Guide[09.1990 - 09.1994] 4EFE,5EF#..EL4# Ｏ／Ｓ ０．０５ |
11123-10040 |
US $11.07 |
||
|
11131
|
11131
11131-11020 Seat, Intake Valve[09.1990 - 09.1994] 4EFE,5EF#..EL4# ＳＴＤ |
11131-11020 |
US $11.36 |
||
|
11131
|
11131
11132-11020 Seat, Intake Valve[09.1990 - 09.1994] 4EFE,5EF#..EL4# Ｏ／Ｓ ０．０３ |
11132-11020 |
US $11.36 |
||
|
11135
|
11135
11135-11020 Seat, Exhaust Valve[09.1990 - 09.1994] 4EFE,5EF#..EL4# ＳＴＤ |
11135-11020 |
US $11.36 |
||
|
11135
|
11135
11136-11020 Seat, Exhaust Valve[09.1990 - 09.1994] 4EFE,5EF#..EL4# Ｏ／Ｓ ０．０３ |
11136-11020 |
US $11.36 |
||
|
11151B
|
11151B
90311-35013
Seal, Oil(For Camshaft Setting)
[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
90311-35013 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
90311-35040 |
from US $5.60 |
||
|
11155A
|
11155A
90253-08003 Pin, Ring W/head[05.1991 - 09.1994] 4EFE,5EF#..EL4# |
90253-08003 |
US $1.28 |
||
|
11155A
|
11155A
90253-09001 Pin, Ring W/head[09.1990 - 05.1991] 4EFE,5EF#..EL4# |
90253-09001 |
US $2.40 |
||
|
11159A
|
11159A
90109-06080 Bolt, Stud(For Head To Cylinder Head Cover)[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
90109-06080 |
US $2.24 |
||
|
11183
|
11183
11183-11010 Plug, Semicircular[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
11183-11010 |
US $9.76 |
||
|
11188
|
11188
11188-11010 Plug, Camshaft Housing[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
11188-11010 |
from US $3.49 |
||
|
11191A
|
11191A
11193-15010 Gasket(For Spark Plug Tube)[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
11193-15010 |
from US $7.86 |
||
|
11201
|
11201
11201-11030 Cover Sub-Assy, Cylinder Head[09.1990 - 03.1993] 4EFE,5EFE..EL4# |
11201-11030 |
US $323.23 |
||
|
11201A
|
11201A
90176-06012 Nut, Cap(For Cylinder Head Cover)[09.1990 - 10.1992] 4EFE,5EF#..EL4# |
90176-06012 |
US $2.08 |
||
|
11201A
|
11201A
90176-06028 Nut, Cap(For Cylinder Head Cover)[10.1992 - 09.1994] 4EFE,5EF#..EL4# |
90176-06028 |
US $2.56 |
||
|
11201B
|
11201B
90210-06008
Washer, Seal(For Cylinder Head Cover)
[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
90210-06008 |
— | ||
| replacement | |||||
|
11201B
|
11201B
90210-06013 Washer, Seal(For Cylinder Head Cover)[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
90210-06013 |
from US $0.84 |
||
|
11213
|
11213
11213-11040
Gasket, Cylinder Head Cover
[09.1990 - 07.1993] 4EFE,5EF#..EL4# |
11213-11040 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-11041 Gasket, Cylinder Head Cover[09.1990 - 07.1993] 4EFE,5EF#..EL4# |
11213-11041 |
from US $17.88 |
||
|
11213
|
11213
11213-11041 Gasket, Cylinder Head Cover[07.1993 - 09.1994] 4EFE,5EF#..EL4# |
11213-11041 |
from US $17.88 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[08.1992 - 12.1993] 4EFE,5EF#..EL4# |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.1992 - 12.1993] 4EFE,5EF#..EL4# |
12180-55010 |
from US $10.08 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[12.1993 - 09.1994] 4EFE,5EF#..EL4#; 1NT..NL40 |
12180-55010 |
from US $10.08 |
||
|
12108
|
12108
12180-62010
Cap Sub-Assy, Oil Filler
[09.1990 - 07.1991] 4EFE,5EF#..EL4# |
12180-62010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-65011 Cap Sub-Assy, Oil Filler[09.1990 - 07.1991] 4EFE,5EF#..EL4# |
12180-65011 |
from US $14.20 |
||
|
12108
|
12108
12180-62011 Cap Sub-Assy, Oil Filler[07.1991 - 08.1992] 4EFE,5EF#..EL4# |
12180-62011 |
US $13.10 |
||
| replacement | |||||
|
12108
|
12108
12180-65011 Cap Sub-Assy, Oil Filler[07.1991 - 08.1992] 4EFE,5EF#..EL4# |
12180-65011 |
from US $14.20 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
90430-37140 |
from US $1.23 |
||
|
9010906181
|
9010906181
90109-06181 New Genuine Part |
90109-06181 |
US $2.62 |
||
|
9010906182
|
9010906182
90109-06182 New Genuine Part |
90109-06182 |
US $2.04 |
||
|
9036005012
|
9036005012
90360-05012 Ball, Reverse Shift Restrict |
90360-05012 |
from US $0.88 |
||
|
9040608013
|
9040608013
90406-08013 Union, Water By-Pass Pipe |
90406-08013 |
US $1.31 |
||
